42
GB 08 04
Operation
IMPORTANT! The hopper rinsing device is using spray
liquid to rinse the hopper for concentrated chemical. The
FILLER must always be cleaned together with the rest of
the sprayer when the spray job is done.
10. Close valve A and the FILLER lid again.
11. When the spray liquid is well mixed, turn handle on
the Pressure Manifold towards Spraying position.
Keep P.T.O. engaged so the spray liquid is continu-
ously agitated until it has been sprayed on the crop.
Use of rinsing tank and rinsingUse of rinsing tank and rinsing
Use of rinsing tank and rinsingUse of rinsing tank and rinsing
Use of rinsing tank and rinsing
nozzles (ifnozzles (if
nozzles (ifnozzles (if
nozzles (if
f f
f f
f
itted)itted)
itted)itted)
itted)

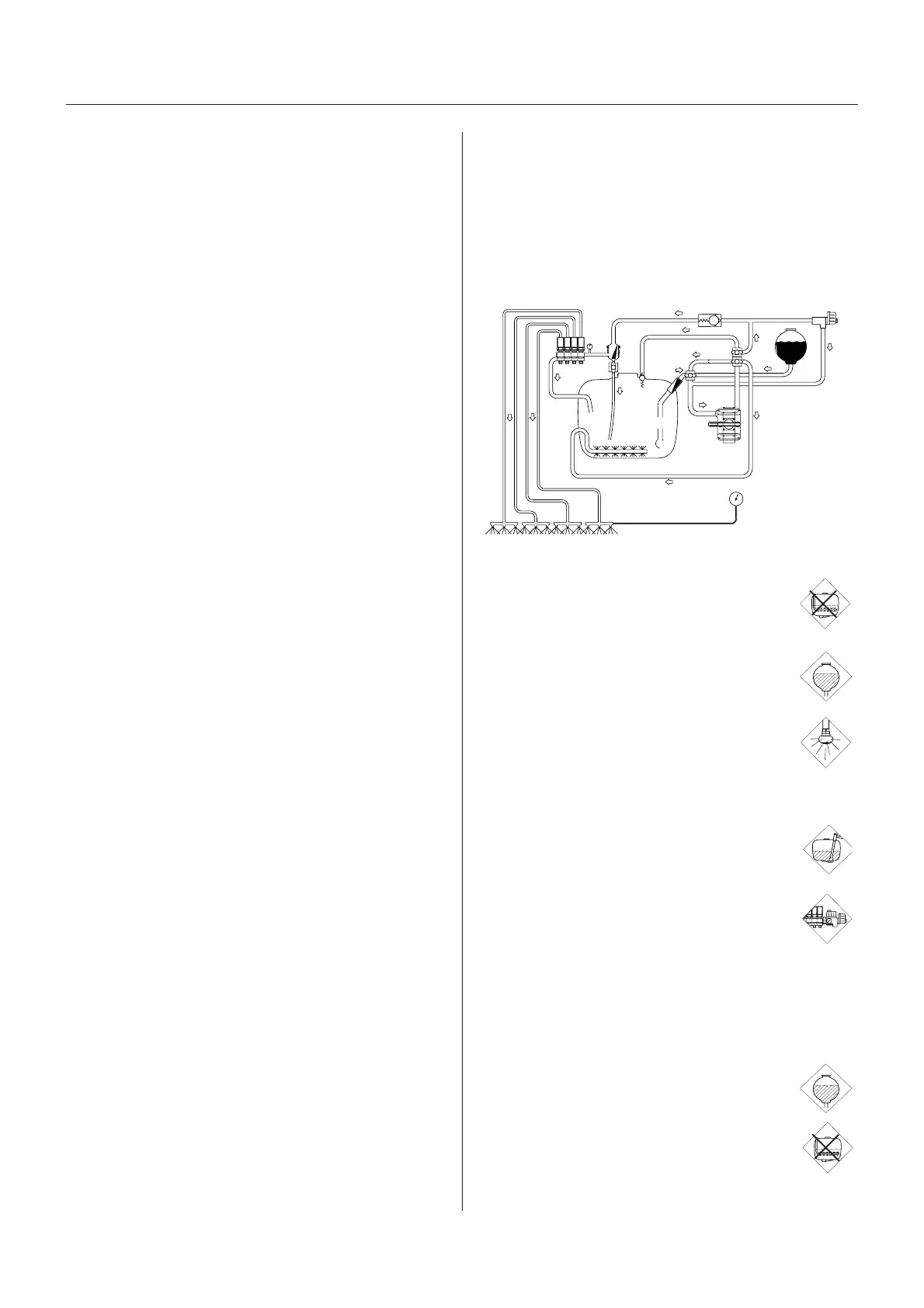

The incorporated rinsing tank can be used for two
different purposes.
A. In-field diluting of remaining spray liquid residue in the
spraying circuit for spraying the liquid in the field,
before cleaning the sprayer.
1. Empty the sprayer as much as possible.
Turn the green pressure valve towards No
Agitation and spray till air comes out of all
nozzles.
2. Remove the tank filter basket.
3. Turn black suction valve towards Rinsing
tank.
4. Turn green pressure valves towards Rinsing
nozzle (if fitted).
5. Engage and set the pump at approximately
300 r.p.m.
6. When rinsing water corresponding to approximately
10 times the spray liquid residue (see para-
graph Technical Residue) is used, turn
black suction valve towards Suction from
main tank and operate all valves, so all
hoses and components are rinsed.
7. Turn green pressure valve back to Operat-
ing unit and spray liquid in the field you have
just sprayed.
8. Repeat point 3-7 until the rinsing tank is empty.
B. Rinsing the pump, operating unit, spray lines, etc. in
case of stop in spraying before main tank is empty
(e.g. beginning rain etc.).
1. Close Self-cleaning filter (yellow valve).
2. Turn black suction valve towards Rinsing
tank.
3. Turn green pressure valve towards No
Agitation
4. Engage the pump and spray water from rinsing tank
in the field until all nozzle tubes/nozzles are flushed
T055-0025
