Hardi Commander Plus SPC Series - Page 67

67
Maintenance
GB 14 00 05

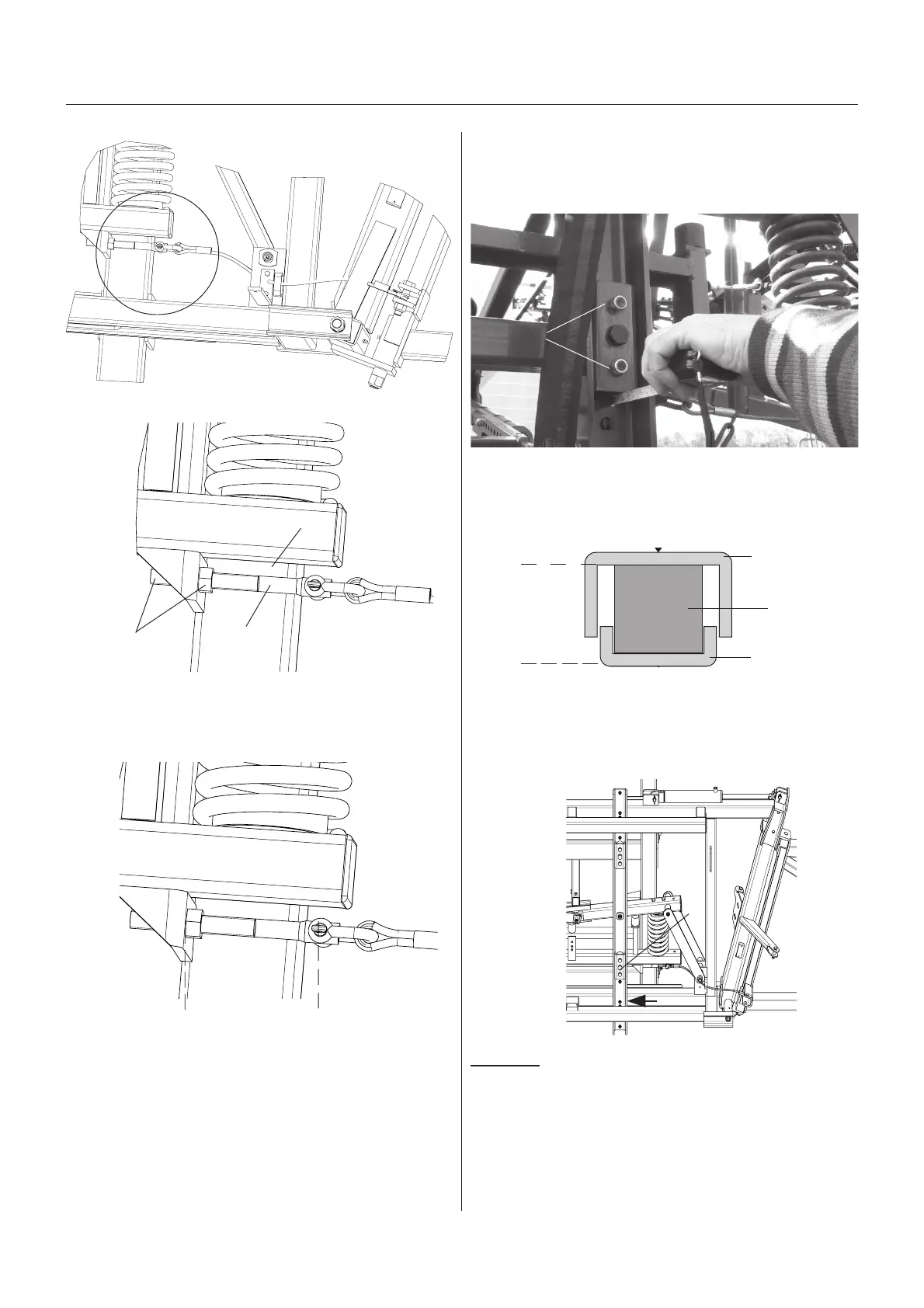

As a guideline for adjustment, follow the distance shown
at the bolt assembly below:
Properly adjusted cables will be very tight and only
deflect a small amount (mm) when pulled by hand.
Note! Cables will be loose when the boom is unfolded.
6. Tighten jam nuts C again.
7. Unfold the boom and inspect that the centre frame is
correctly centred.
Jaw rubber dampers (SPC only)
Inspect basic adjustment of the rubber jaw dampers.
Basic adjustment = The compression of the jaw should
correspond to a distance of 34 mm (+/- 0,5).
Yaw damping
Tighten/loosen bolt A to adjust slack at point B.
Guideline:
If boom does not work smoothly
or if it works in steps: Loosen bolt A
If boom works to loosely
or swings uncontrollable: Tighten bolt A
Note! Do not stress the bolt (A). Only tighten till contact
is reached at point B.
Measure and adjust the jaw if necessary by means of
the two M12 bolts .
T212-0019
A
B
34 mm
M12
T112-0020
Jaw
Fixing
Channel
section
AA
AA
A
T103-0011
EE
EE
E
CC
CC
C
DD
DD
D
110 mm110 mm
110 mm110 mm
110 mm
