T5CN5

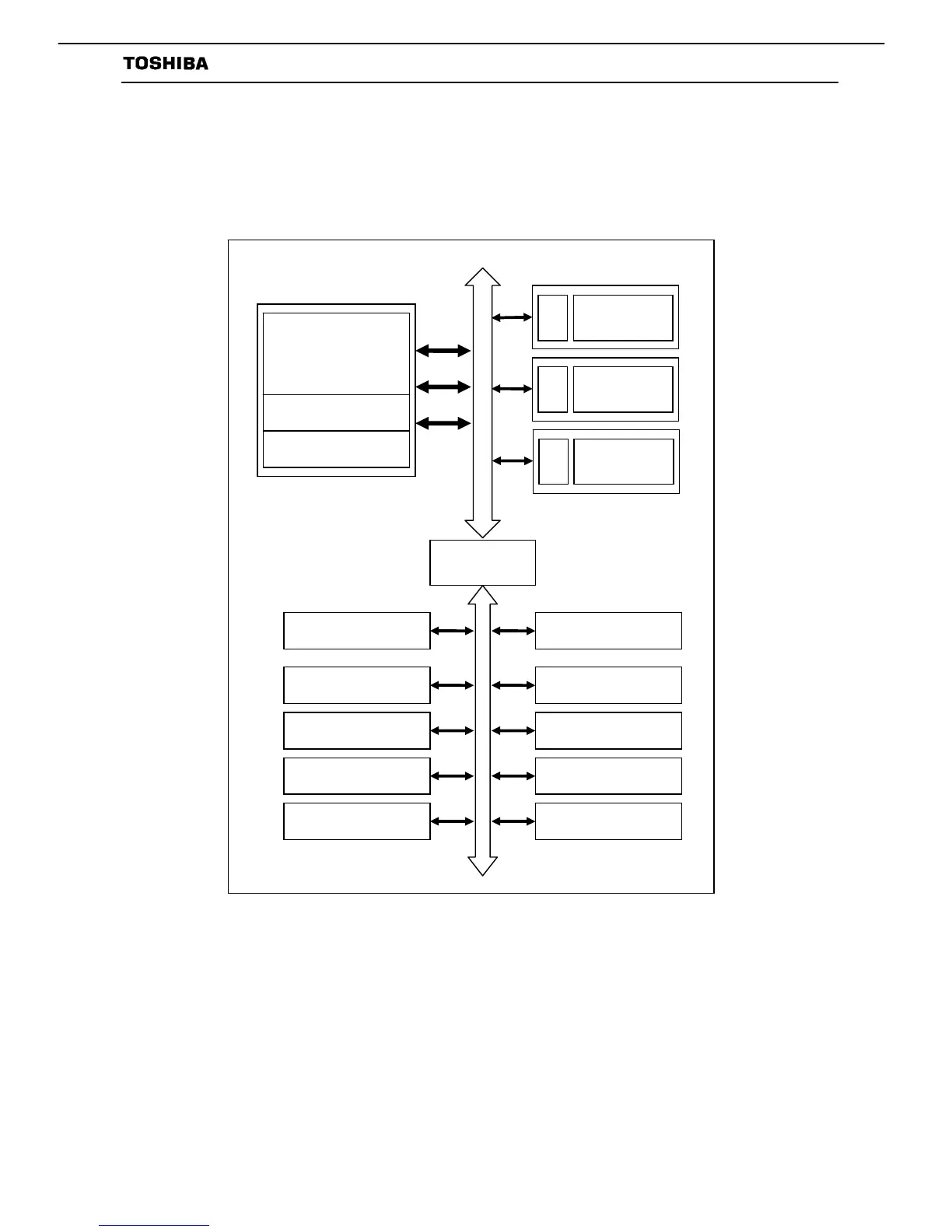

1.2 Block Diagram
Fig. 1.1 T5CN5 Block Diagram
Cortex-M3
CPU
Debug
NVIC
Bus Bridge
CG PORT 0~A
SIO (3ch)
I2C (3ch)
CEC
Remote control signal
preprocessor (2ch)
TMRB (10ch)
WDT
RTC
ADC (12ch)
FLASH
I/F
RAM
I/F
I-Code
D-Code
S
y
stem
IO-Bus
BOOT
ROM
I/F
A
HB-Bus-Matrix
