Copyright 2008 Cirrus Logic SEP ‘08
DS752PP7
32-bit High Definition Audio Decoder DSP
Family with Dual DSP Engine Technology
CS4970x4 Data Sheet
http://www.cirrus.com
FEATURES
Multi-standard 32-bit High Definition Audio Decoding plus
Post Processing
Supports high-definition audio formats including:
— Dolby Digital
®
Plus
—Dolby
®
TrueHD
—DTS-HD
™
High Resolution Audio
—DTS-HD
™
Master Audio
—DSD
®
Additional Applications Library
— Dolby Digital
®
EX, Dolby
®
Pro Logic
®
IIx, Dolby
Headphone
®
, Dolby
®
Virtual Speaker
®
—DTS-ES 96/24
™
, DTS-ES
™
Discrete 6.1, DTS-ES
™
Matrix 6.1
— AAC
™
Multichannel 5.1
—SRS
®
CS2
®
and TSXT
®
—THX
®
Ultra2
™
, THX
®
ReEQ
™
— Crossbar Mixer, Signal Generator
— Advanced Post-Processor including: 7.1 Bass Manager,
Tone Control, 11- Band Parametric EQ, Delay, 1:2
Upsampler
— Microsoft
®
HDCD
®
— Thomson MP3 Surround, DTS:Neo6
™
, DSD-to-PCM
Conversion, Neural Surround, Cirrus Original Multi-
Channel Surround 2 (COMS2), and more. Please contact
your local FAE for more information on available
applications.
Up to 12 Channels of 32-bit Serial Audio Input
Customer Software Security Keys
6 Channel DSD
®
Input
16 Ch x 32-bit PCM Out with Dual 192 kHz SPDIF Tx
Two SPI
™
/I
2
C
®
, One Parallel and One UART Port
Large On-chip X, Y, and Program RAM & ROM
SDRAM and Serial Flash Memory Support
The CS4970x4 DSP family is an enhanced version of the
CS4953x DSP family with higher overall performance. In
addition to all the mainstream audio processing codes in on-
chip ROM that the CS4953x DSP offers, the CS4970x4 device
family also supports the decoding of major high-definition
audio formats. Additionally, the CS4970x4, a dual-core device,
performs the high-definition audio decoding on the first core,
leaving the second core available for audio post-processing and
audio enhancement. The CS4970x4 device will support the
most demanding audio post processing requirements. It is also
designed as an easy upgrade path to systems currently using
the CS495xx or CS4953x device with minor hardware and
software changes.
Ordering Information
See page 30 for ordering information.

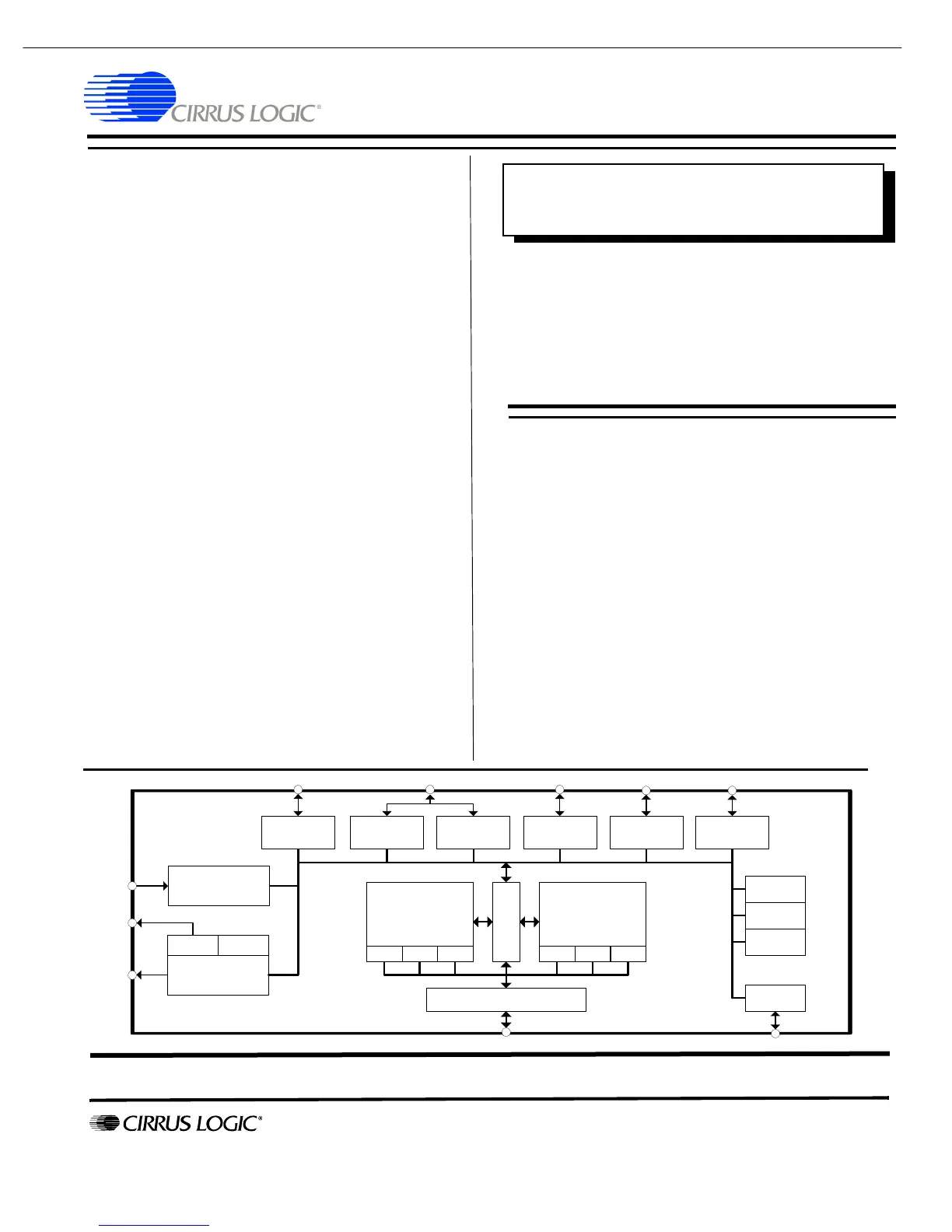

32-bit
DSP A
D
M
A
32-bit
DSP B
Ext. Memory Controller
P
S/PDIF
X Y P X Y
Serial
Control 1
16 Ch PCM
Audio Out
Serial
Control 2
Parallel
Control
GPIOUART Debug
STC
TMR1
TMR2
PLL
S/PDIF
12 Ch. Audio In /
6 Ch. SACD In
Preliminary Product Information
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
