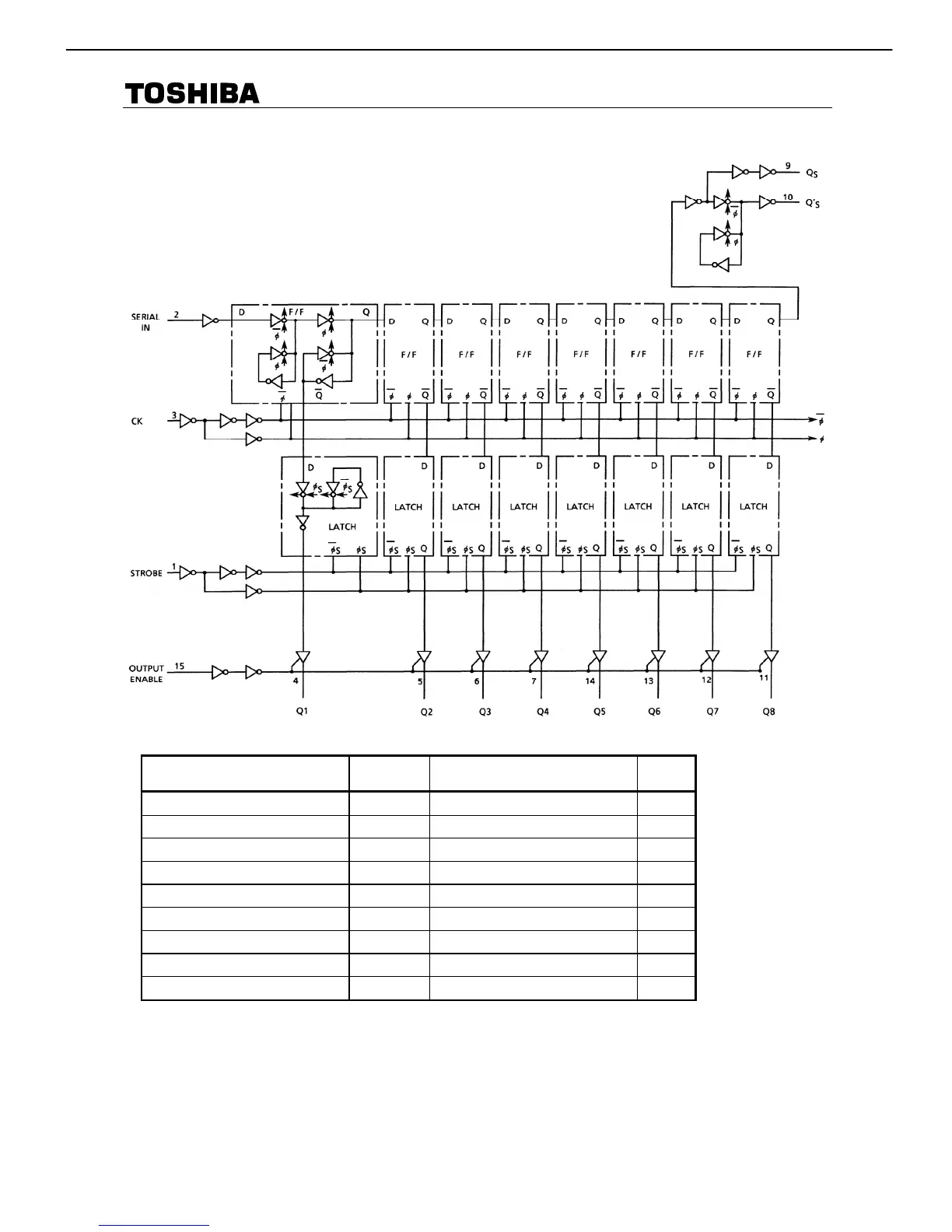

TC74HC4094AP/AF/AFN
System Diagram
Absolute Maximum Ratings (Note 1)
Characteristics Symbol Rating Unit
Supply voltage range V
CC
−0.5 to 7 V
DC input voltage V
IN
−0.5 to V
CC
+ 0.5 V
DC output voltage V
OUT
−0.5 to V
CC
+ 0.5 V
Input diode current I
IK
±20 mA
Output diode current I
OK
±20 mA
DC output current I
OUT
±25 mA
DC V
CC
/ground current I
CC
±50 mA
Power dissipation P
D
500 (DIP) (Note 2)/180 (SOP) mW
Storage temperature T
stg
−65 to 150 °C
Note 1: Exceeding any of the absolute maximum ratings, even briefly, lead to deterioration in IC performance or
even destruction.
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 2: 500 mW in the range of Ta = −40 to 65°C. From Ta = 65 to 85°C a derating factor of −10 mW/°C shall be
applied until 300 mW.
