NJW1197C
8-CHANNEL ELECTRONIC VOLUME WITH INPUT SELECTOR
GENERAL DESCRIPTION PACKAGE OUTLINE
NJW1197C is an 8-channel electronic volume IC. It
includes Input selector, tone control, volume, mute, input
selector gain control, volume output gain control and 5
REC outputs. Each mode and conditions are set by the
3-wired serial control data.
NJW1197C improves low Residual Output Noise
Voltage compared with NJW1197.
FEATURES
● Operating Voltage ±4.5 to ±7.5V
● 3-Wired Serial Control Chip Address Select Function
● Input Selector (x 11)
● REC Output (x 5) Independent Mute function
● Input Selector Gain Control Gain : 0/-3/-6/-9/-12dB
● Volume Output Gain Control Gain : 0/+1/+2/+3/+4/+5/+6/+7dB (L,R,C,LS,RS,LB,RBch)
Gain : 0/+1/+2/+3/+4/+5/+6/+10dB (SWch)
Independent Control: L,Rch / Cch / LS,RSch / LB,RBch / SWch
● Volume 0 to -100dB/0.5dBstep, MUTE
● Residual Output Noise Voltage -114dBV typ. @Volume=-95dB (Output Noise 3)
● Tone Control 0 to ±10dB/1dBstep
● Subwoofer output addition to L, R channel output
● Subwoofer output ON/OFF control
● Bi-CMOS Technology
● Package Outline QFP100-C2

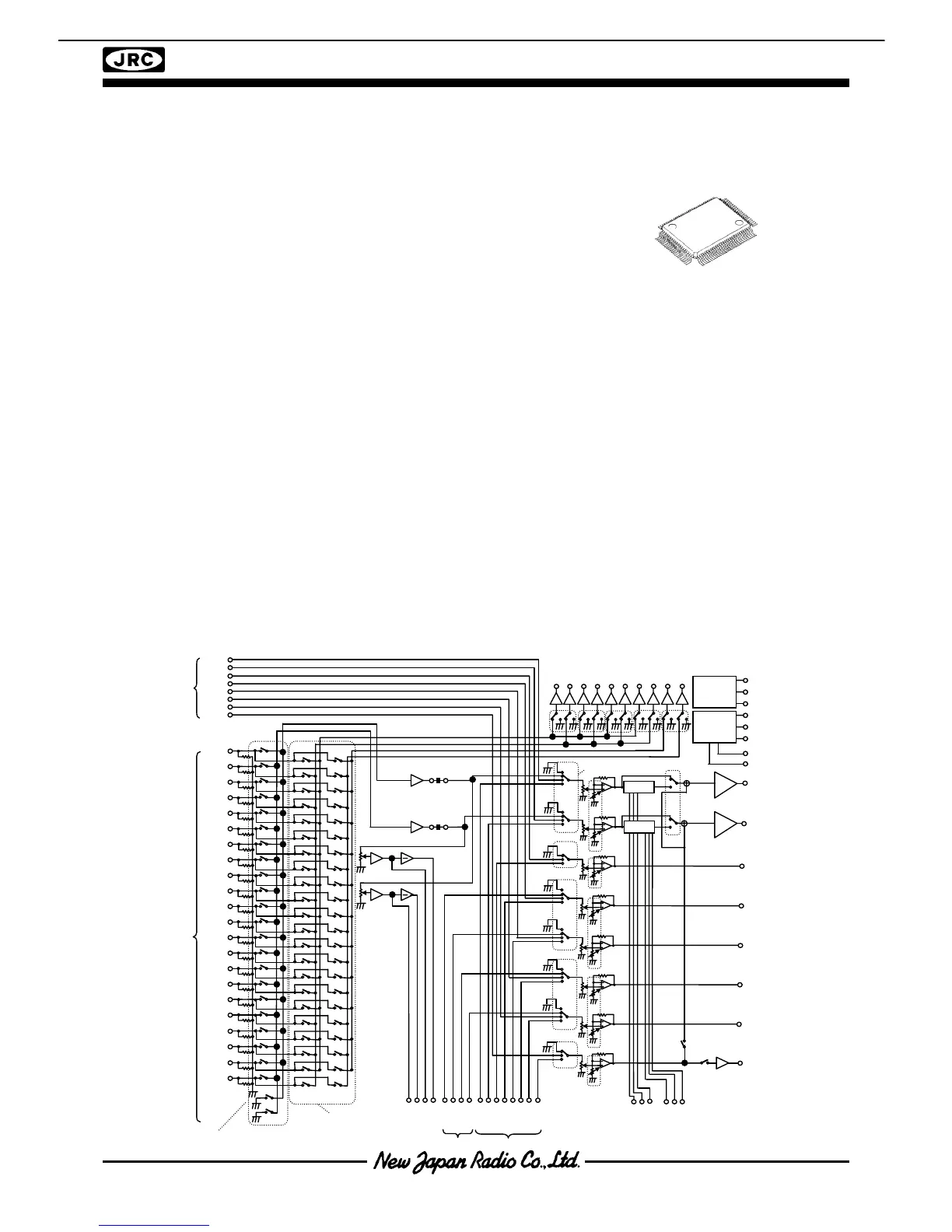

BLOCK DIAGRAM
NJW1197CFC2
Multi-Channel In
