Harman Kardon AVR 165 Quick Start Guide

Introduction, Speaker Placement and ConnectionAVR 1650, AVR 165
2
Introduction
Thank you for choosing a Harman Kardon
®
product!
This quick-start guide contains all the information you need to connect and set up your
new Harman Kardon
®
audio/video receiver.
To conserve our natural resources, your AVR does not include a printed owner's
manual. An owner's manual containing complete information about operating all of your
new AVR's features is available at our Web site. Go to www.harmankardon.com and
download the AVR 1650 / AVR165 Owner’s Manual.
Place the AVR
• Place the AVR on a rm and level surface. Be certain that the surface and any mounting
hardware can support the AVR's weight.
• Provide proper space above and below the AVR for ventilation. If you install the AVR in
a cabinet or other enclosed area, provide cooling air within the cabinet. Under some
circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas
near heaters or heat registers, or in direct sunlight.
Connections
Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustration below as a guide.
For more detailed speaker placement information, download the complete AVR 1650/
AVR 165 Owner’s Manual from www.harmankardon.com.
CAUTION: Before making any connections to the audio/video receiver, ensure that
the AVR's AC cord is unplugged from the AVR and the AC outlet. Making connections
with the AVR plugged in and turned on could damage the speakers.
Speaker
Connectors
HDMI
®
Connectors
Analog Audio
Connectors
Subwoofer
Connector
AC Input
Connector
Main Power
Switch
Radio Antenna
Connectors
Digital Audio
Connectors
Analog Video
Connectors
The Bridge IIIP
Connector

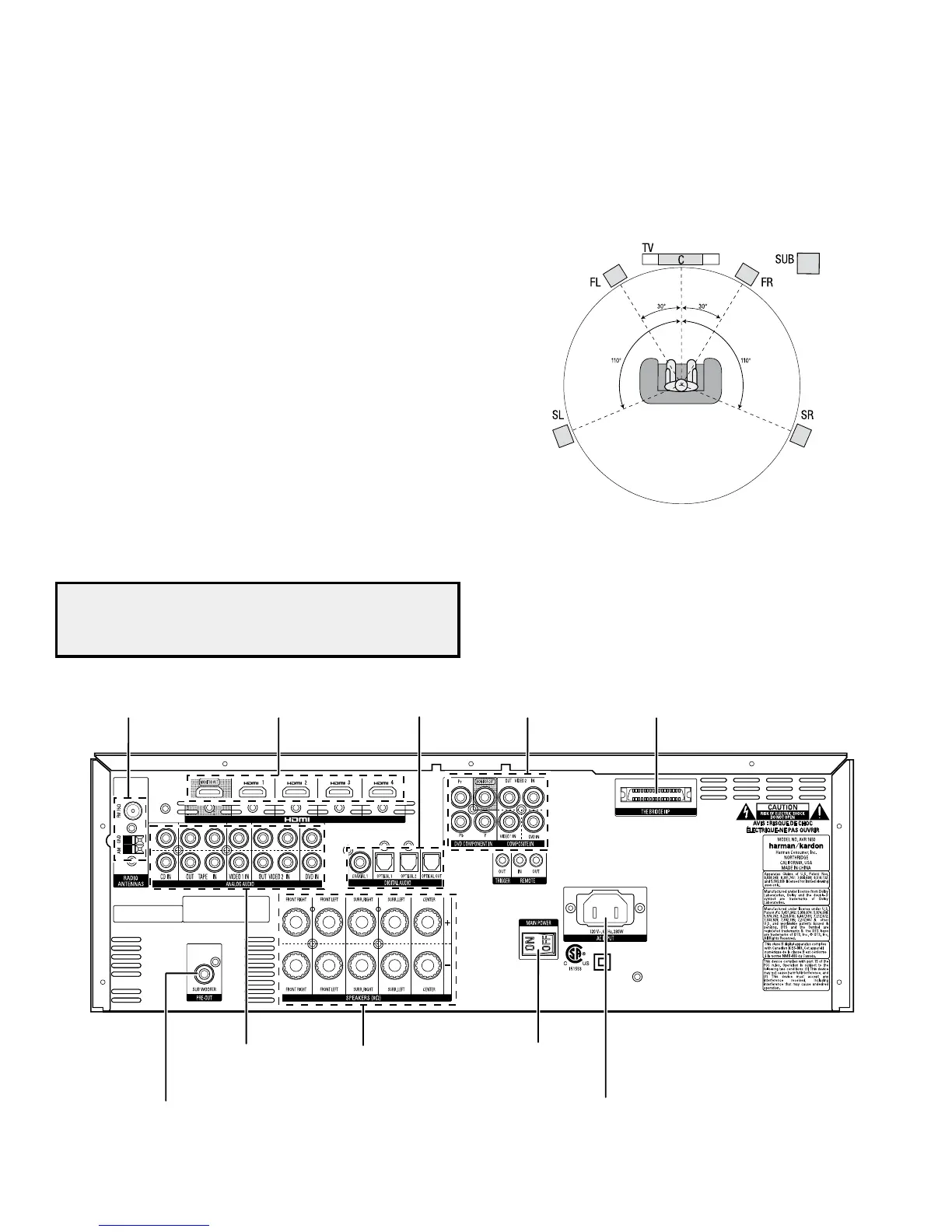

AVR 1650 /AVR 165 Rear-Panel Connections (AVR 1650 shown)

Harman Kardon AVR 165 Specifications

General

Receiver type	-
Frequency range	20 - 20000 Hz
RMS rated power	- W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (20-20KHz@8 Ohm)	95 W
Display	LCD
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
Handheld remote control	No
Apple docking compatibility	Not supported
HDMI in	4
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
AM band range	520 - 1620 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
3D	Yes
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	280 W

Weight and Dimensions

Depth	385 mm
Width	440 mm
Height	165 mm
Weight	9100 g
