Connections
3
AVR 1650, AVR 165

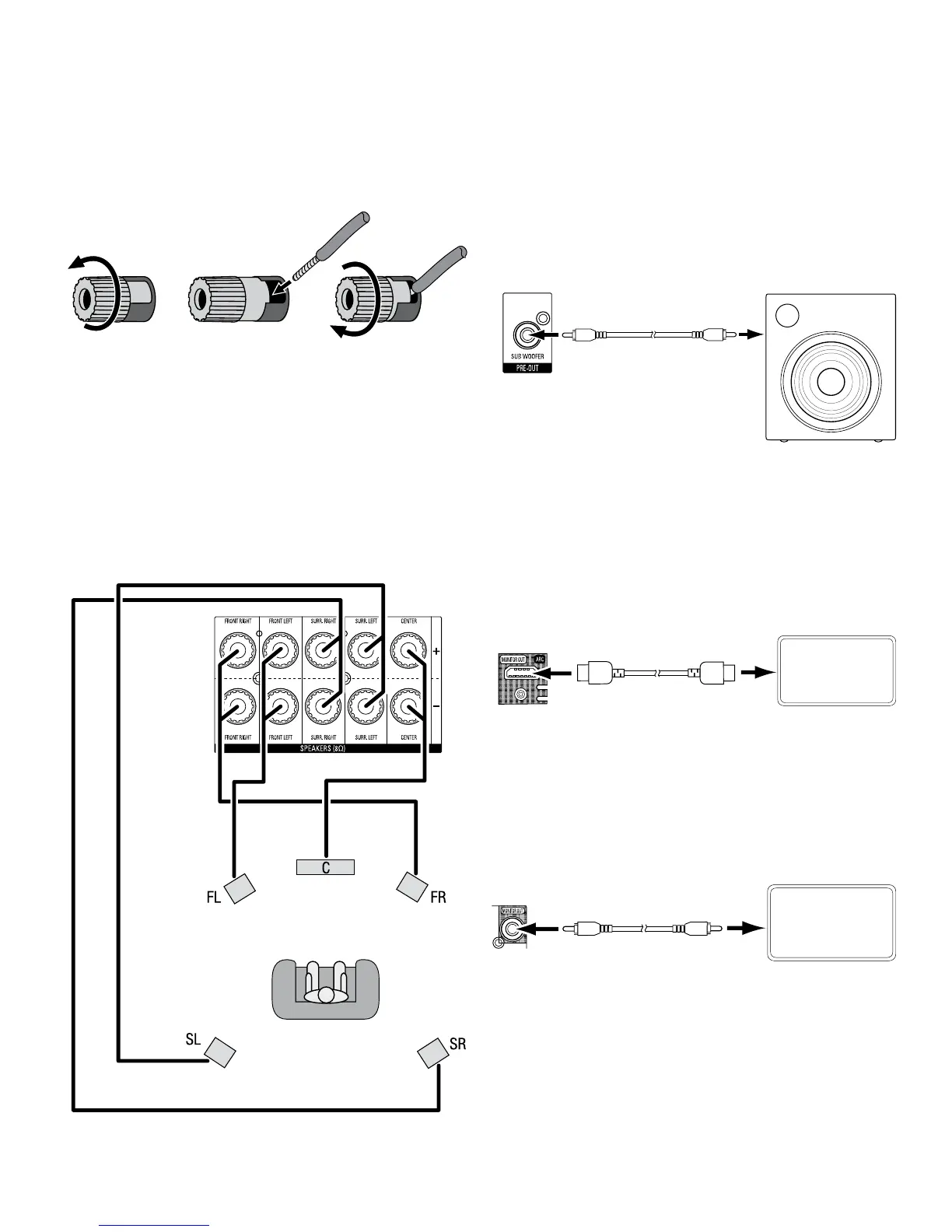

Connect Your Speakers
How to use the AVR's speaker terminals:
Always connect the colored (+) terminal on the AVR to the (+) terminal on the speaker
(usually red), and the black (–) terminal on the AVR to the (–) terminal on the speaker
(usually black).
IMPORTANT: Make sure the ( + ) and ( – ) bare wires do not touch each other or the other
terminal. Touching wires can cause a short circuit that can damage your AVR.
Connect the speakers as shown in the illustration.
Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR's Subwoofer Pre-Out connector to
your subwoofer. Consult your subwoofer’s user manual for specic information about
making connections to it.
Connect Your TV or Video Display
HDMI Monitor Out Connector
If your TV has an HDMI connector and you have HDMI or component video source
devices, use an HDMI cable (not included) to connect your TV to the AVR's HDMI Monitor
Out connector. It will provide the best possible picture quality.
Composite Video Monitor Out Connector
If your TV does not have an HDMI connector, or if your TV does have an HDMI connector
but you are connecting some source devices with only composite video connectors, use
a composite video cable (not included) to connect the AVR's Composite Monitor Out
connector to your TV’s composite video connector.
1. Unscrew Cap 2. Insert Bare Wire 3. Tighten Cap
Sub Woofer
Pre-Out Connector
Powered
Subwoofer
Single
RCA Audio Cable
(not supplied)
AVR
HDMI Monitor Out
Connector
TV
HDMI Cable
(not supplied)
Composite
Monitor Out
Connector
TV
Composite Video Cable
(not supplied)
To Next Page
