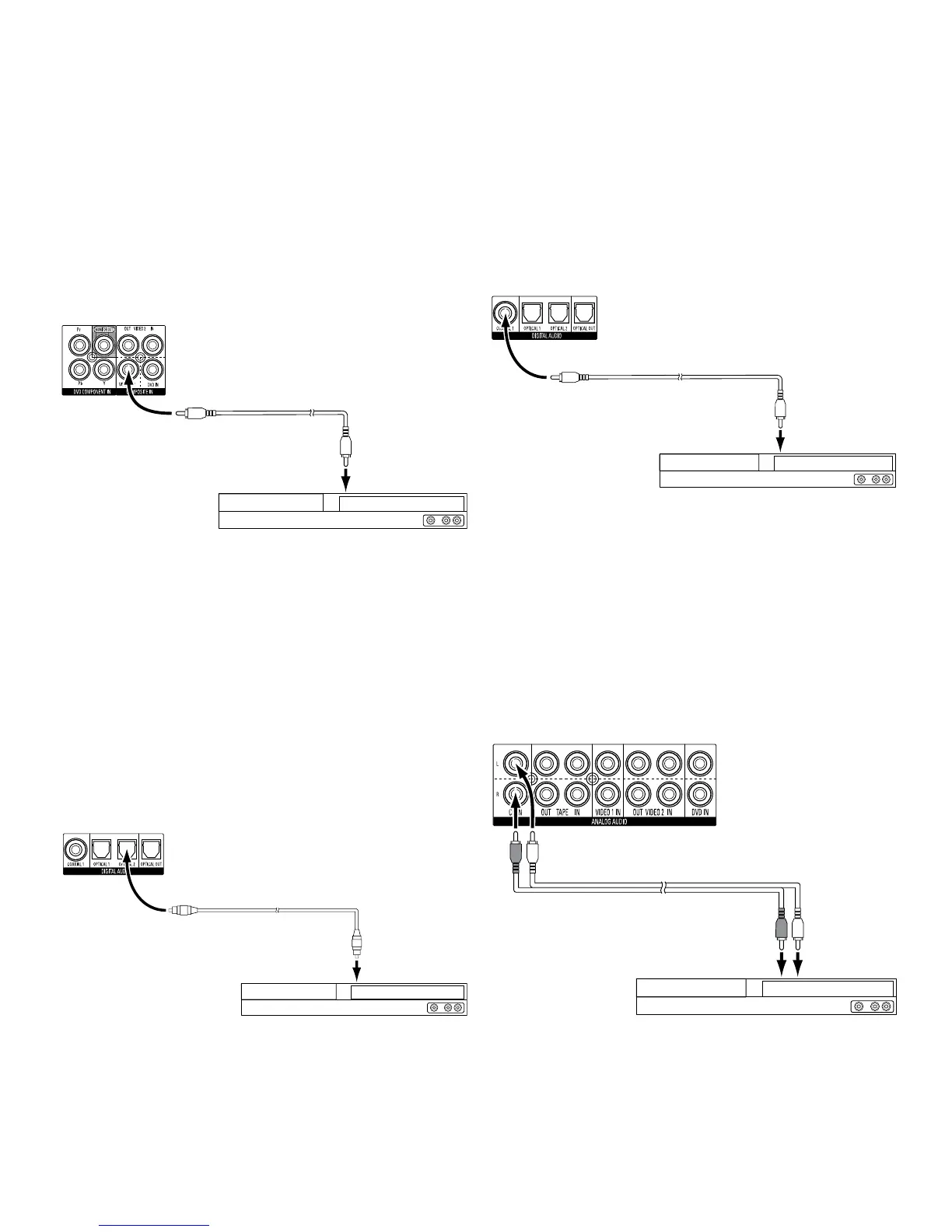

Composite Video Devices
You will need to make composite video connections from your source devices that do
not have HDMI or component video connections. You will also need to make an audio
connection from the device to the AVR.
Note: If you connected your Blu-ray Disc or DVD player to the AVR's DVD Component In
connectors, do not connect a source device to the AVR's composite DVD In connector.
Optical Digital Audio Devices
If your source devices have optical digital outputs, connect them to the AVR's optical
digital audio connectors. NOTE: Make only one type of digital connection (HDMI, optical
or coaxial) from each device.
Coaxial Digital Audio Devices
If your source devices have coaxial digital outputs, connect them to the AVR's coaxial
digital audio connectors. NOTE: Make only one type of digital connection (HDMI, optical
or coaxial) from each device.
Analog Audio Devices
Make analog audio connections from your source devices that do not have HDMI or
digital audio connections. If you’re connecting video sources to the AVR's DVD, Video
1 or Video 2 audio inputs, you must also connect the source device’s composite video
output to the corresponding composite video connector.
AVR 1650, AVR 165
5
Connections
AVR Composite
Video Connectors
Composite Video-Equipped
Source Device
Composite Video
Cable (not supplied)
To Composite Video
Output
Optical-Equipped
Source Device
Optical Digital Audio
Cable (not supplied)
To Optical Digital Audio
Output
Digital Audio Connectors
Digital Audio Connectors
Coaxial-Equipped
Source Device
Coaxial Digital Audio
Cable (not supplied)
To Coaxial Digital Audio
Output
Analog Audio Connectors
Analog
Source Device
Stereo Audio
Cable (not supplied)
To Stereo Analog Audio
Output
To Next Page
