Harman Kardon AVR 171 User Manual

14
AVR
Types of Home Theater System Connections
and Making Connections
Network Connector
The AVR’s Network connector allows you to enjoy Internet radio or content from other DLNA-
or Airplay-compatible devices that are connected to the same network. Use a Cat. 5 or
Cat. 5E Ethernet cable to connect the AVR’s RJ-45 connector to your home network.
USB Port
The AVR can play audio files from an Apple iOS
®
device connected to the USB port,
and allows you to control the iOS device via the AVR remote control. The AVR can also
play MP3 and WMA audio files from a USB device inserted into the USB port. Insert the
connector or device into the USB port oriented so it fits all the way into the port. You may
insert or remove the connector or device at any time – there is no installation or ejection
procedure.
The USB port on your AVR is also used to perform firmware upgrades. If an upgrade for
the AVR’s operating system is released in the future, you will be able to download it to the
AVR using this port. Complete instructions will be provided at that time.
IMPORTANT: Do not connect a PC or other USB host/controller to the AVR’s USB
port, or you may damage both the AVR and the other device.
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the AC outlet. Making connections
with the receiver plugged in and turned on could damage the speakers.

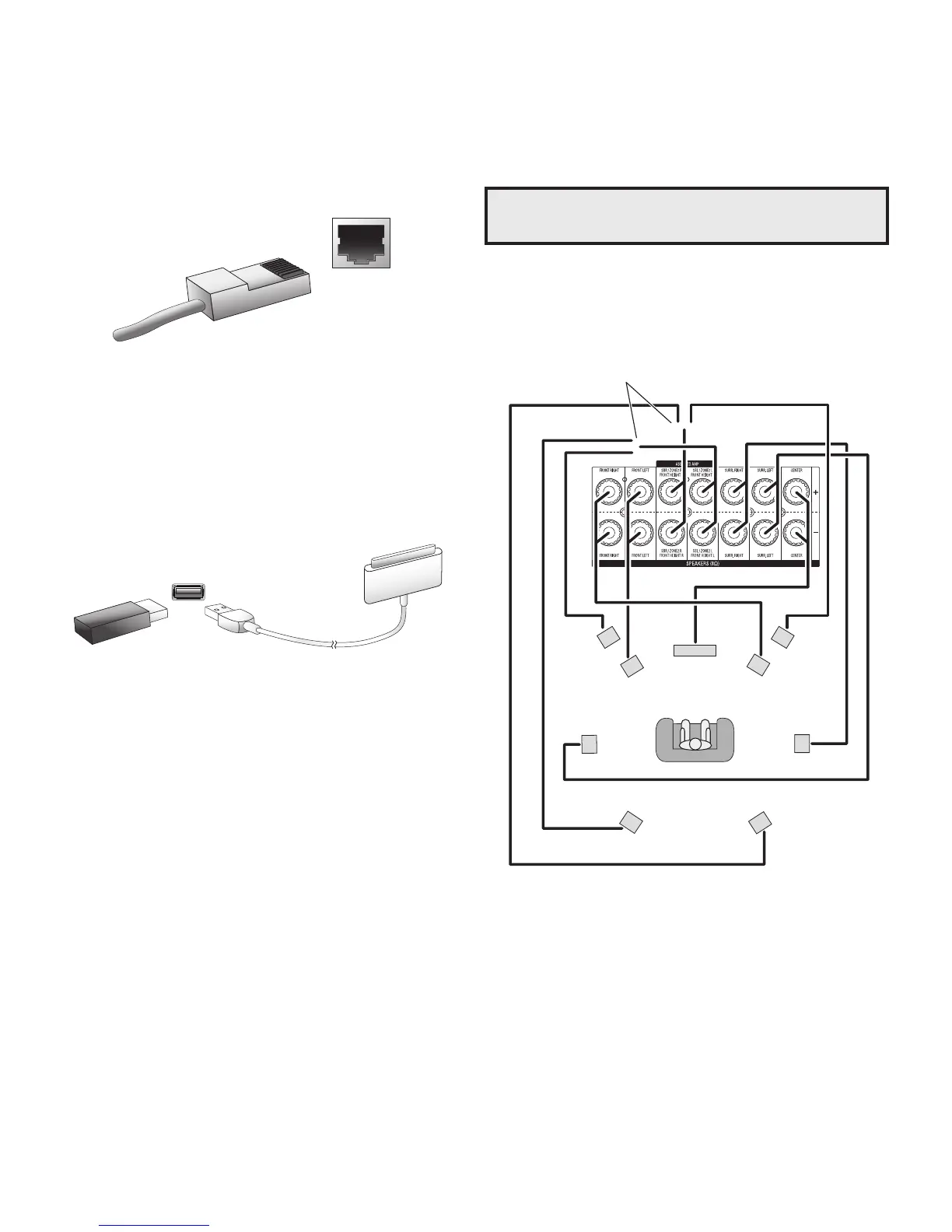

Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 11, connect each speaker to its color-coded terminal on the AVR as explained in
Speaker Connections, on page 12. Connect the speakers as shown in the illustration.
AVR 1710/AVR 171 only:
Connect Surround Back L/R Speakers
-OR- Front Height L/R Speakers Here
C
FHL
(AVR 1710/
AVR 171 only)
SBL
(AVR 1710/
AVR 171 only)
FL
SL
FHR
(AVR 1710/
AVR 171 only)
SBR
(AVR 1710/
AVR 171 only)
FR
SR
NOTE: If you installed front height speakers, connect them as shown for the SBL and
SBR speakers.

Harman Kardon AVR 171 Specifications

General

Receiver type	Surround
Output impedance	75 Ω
Input sensitivity	250 mV
Maximum input power	510 W
Audio output channels	- channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	6
AC (power) in	Yes
Composite video in	1
Digital audio optical in	2
Headphone connectivity	3.5 mm
Speakers connectivity type	-
AM band range	522 - 1620 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	iTunes
Cable length	1.8 m
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD
Volume control	Digital
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of products included	1 pc(s)
Receiver dimensions (WxDxH)	440 x 300 x 121 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	300 mm
Width	440 mm
Height	121 mm
Weight	5100 g
