Harman Kardon AVR 171 User Manual

13
ENGLISH
AVR

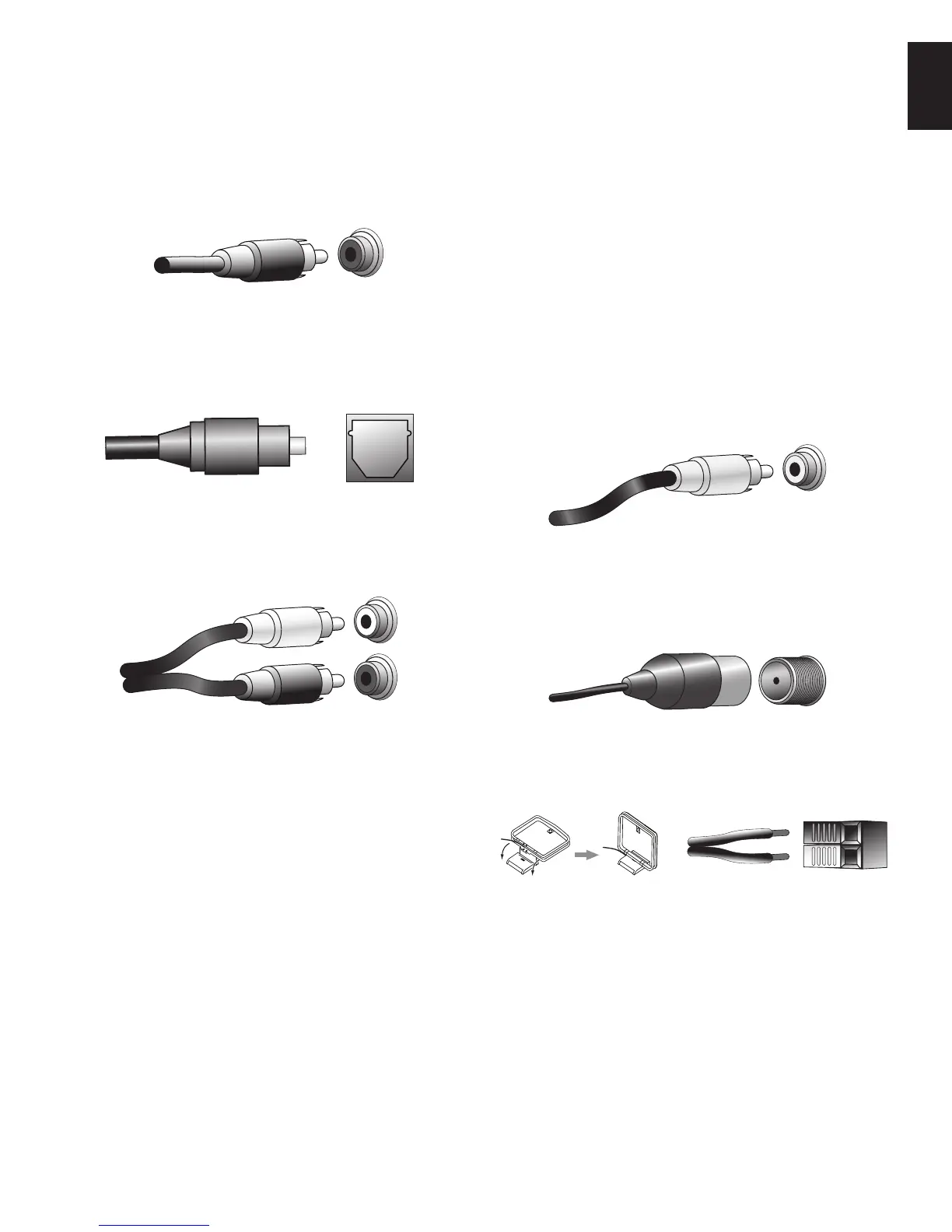

Types of Home Theater System Connections
Digital Audio Connections – Coaxial
Coaxial digital audio jacks are usually color-coded in orange. Although they look like
standard RCA-type analog jacks, you should not connect coaxial digital audio outputs to
analog inputs or vice versa.
Digital Audio Connections – Optical
Optical digital audio connectors are normally covered by a shutter to protect them from
dust. The shutter opens as the cable is inserted. Optical input connectors are color-coded
using a black shutter.
Analog Audio Connections
Two-channel analog connections require a stereo audio cable, with one connector for
the left channel (white) and one for the right channel (red). These two connectors are
attached to each other.
For source devices that have both digital and analog audio outputs, you may make both
connections. If you are going to be setting up a multizone system (AVR 1710/AVR 171
only), remember that Zone 2 is an audio-only zone (the AVR does not have a Zone 2 video
output). Therefore, make analog connections for any audio source devices (such as a CD
changer) that you will want available for listening in Zone 2 at all times.
Video Connections
Many source devices output both audio and video signals (e.g., Blu-ray Disc, DVD
player, cable television box, HDTV tuner, satellite box, VCR, DVR). In addition to an audio
connection as described above, make a video connection for each of these source
devices. Make only one type of video connection for each device.
Digital Video Connections
If you have already connected a source device to one of the AVR’s HDMI input connectors,
you have automatically made a video connection for that device, since the HDMI cable
carries both digital audio and digital video signals.
Analog Video Connections – Composite Video
Composite video is the most commonly available analog video connection. Both the
chrominance (color) and luminance (intensity) components of the video signal are
transmitted using a single cable. The jack is usually color-coded yellow and looks like an
analog audio jack. Do not connect a composite video jack to an analog audio or coaxial
digital audio jack, or vice versa.
Radio Connections
Your AVR uses separate terminals for the included FM and AM antennas. The FM antenna
uses a 75-ohm F-connector.
The AM antenna connector uses spring-clip terminals. After assembling the antenna as
shown below, press the levers to open the connectors, insert the bare wires into the
openings, and release the levers to secure the wires. The antenna wires are not polarized,
so you can insert either wire into either connector.

Harman Kardon AVR 171 Specifications

General

Receiver type	Surround
Output impedance	75 Ω
Input sensitivity	250 mV
Maximum input power	510 W
Audio output channels	- channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	6
AC (power) in	Yes
Composite video in	1
Digital audio optical in	2
Headphone connectivity	3.5 mm
Speakers connectivity type	-
AM band range	522 - 1620 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	iTunes
Cable length	1.8 m
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD
Volume control	Digital
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of products included	1 pc(s)
Receiver dimensions (WxDxH)	440 x 300 x 121 mm
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	300 mm
Width	440 mm
Height	121 mm
Weight	5100 g
