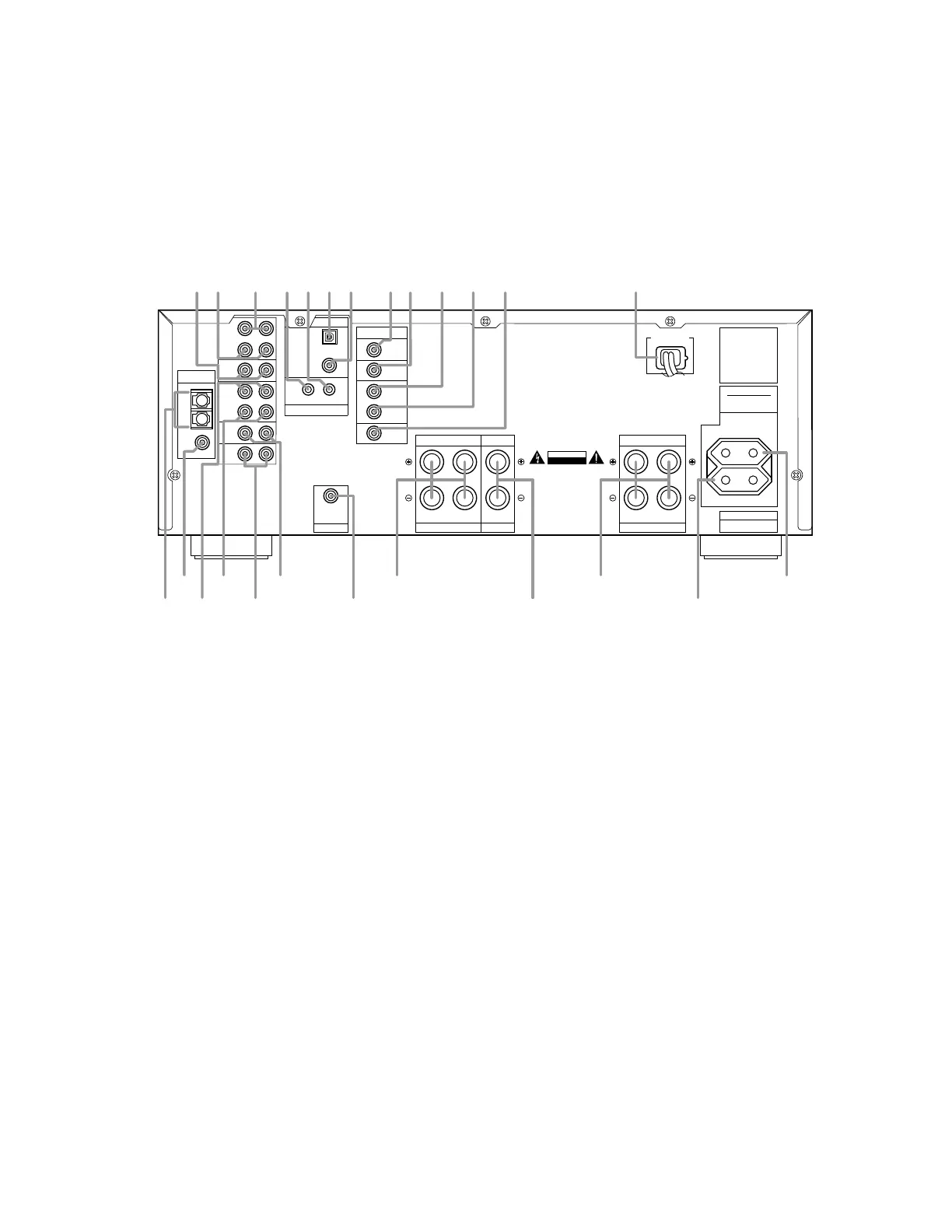

Rear Panel Connections
9
AVR35RDS 230 volt Rev (C) 9/28/98
FM
(75Ω)
AM
ANTENNA
GND
AC 230V 50 Hz
460 Watts
IN
OUT
TAPE
MONITOR
RIGHT
SPEAKERS 8 Ohms SPEAKER 8 Ohm
LEFT CENTER
VIDEO
2
PLAY
IN
REC
OUT
VIDEO
1
DVD
CD
FRONT
CENTER
RIGHT
SPEAKERS 8 Ohms
LEFT
SURROUND
AVIS: RISQUE DE CHOC
ELECTRIQUE - NE PAS OUVRIR
WARNINGWARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
OUT
IN
TV
MONITOR
OUT
VIDEO 2
IN
OUT
DVD
VIDEO 1
OPTICAL
COAXIAL
SUB WOOFER
DIGITAL INPUT
PRE OUT
VIDEO
REMOTE CONTROL
UNSWITCHED TOTAL 100W MAX.
SWITCHED 50W MAX.
(230V.50Hz)
TOTAL 150W MAX
MODEL NO. AVR-35RDS
HARMAN KARDON
NORTHRIDGE
CALIFORNIA, USA
MADE IN CHINA
SERIAL NO.
AC OUTLETS
‡°·ab› ›fifl ¢ §£ ‹
¤
⁄
‚
ª
•
¶
§
∞
¢
£¡
™
¡ AM Antenna
™ FM Antenna
£ Video 1 Inputs
¢ Video 1 Outputs
∞ CD Inputs
§ DVD Inputs
¶ Subwoofer Pre-Out
• Front
ª Center
‚ Surrounds
⁄ Switched AC Outlet
¤ Unswitched AC Outlet
‹ Power Cable
› Video 2 Inputs
fi TV Monitor Video Output
fl AC-3/PCM Coaxial Input
‡ AC-3/PCM Optical Input
° Remote IR In
· Remote IR Out
a Tape Monitor In
b Tape Monitor Out
¡ AM Antenna: Connect the AM
loop antenna supplied with the
receiver to these terminals. If an
external AM antenna is used, make
connections to the AM and GND
terminals in accordance with the
instructions supplied with the
antenna.
™ FM Antenna: Connect an indoor
or external FM antenna to this
terminal.
£ Video 1 Inputs: Connect these
jacks to the audio and video
PLAY/OUT jacks of a VCR.
¢ Video Outputs 1: Connect these
jacks to the audio and video
RECORD/IN jacks of a VCR.
∞ CD Inputs: Connect these jacks
to the output of a compact disc
player or CD changer.
§ DVD Inputs: Connect the analog
audio outputs and composite video
output of a DVD or LV player to these
jacks.
¶ Subwoofer Pre-Out: Connect
this jack to the line level input of a
powered subwoofer. If an external
subwoofer amplifier is used, connect
this jack to the subwoofer amplifier
input.
