Harman Kardon CDR2 - Pcb-4(Cdr) Removal

1. Pull-out the PCB-4 by hook-off to in Fig.11
from the MECHA-2(CDR)
2. Detach the connector to in Fig.11
3. Remove the PCB-4 from the MECHA-1(CDR)
13. PCB-4(CDR) REMOVAL

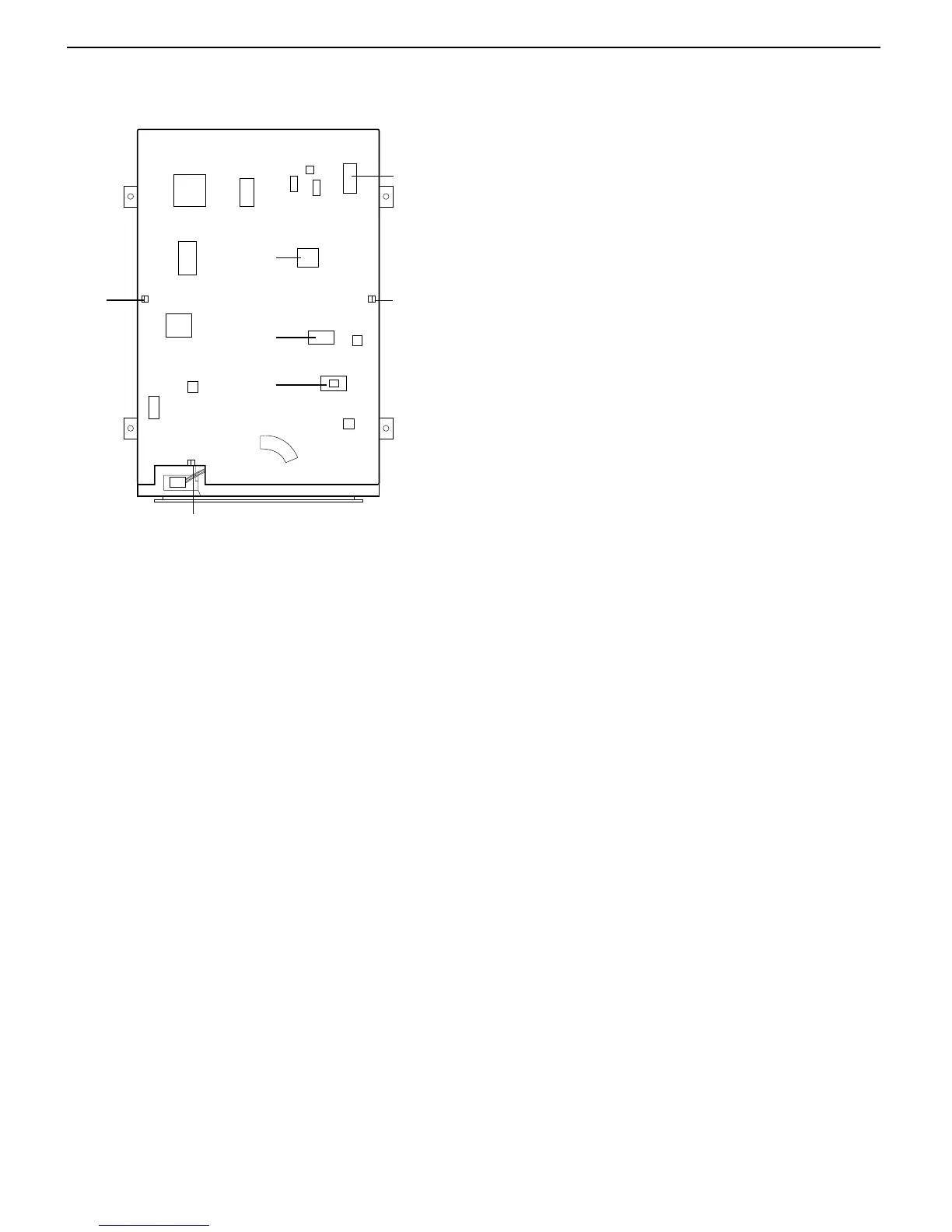

<Fig 11>
