15
+ -
+
-
+ - +-
L R
DVX
Source device
+ - +-
+ - +-
L R

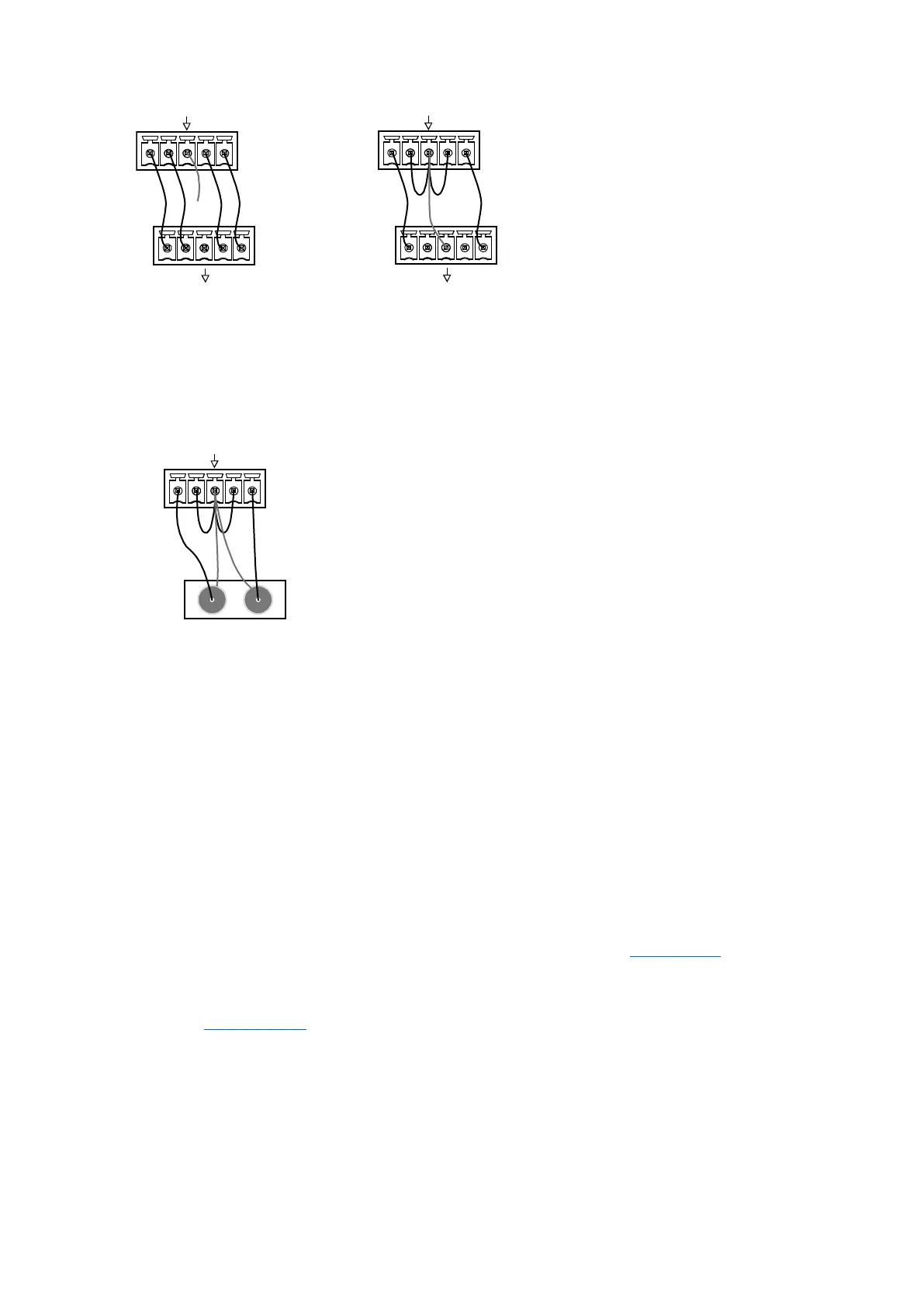

Balanced Wiring
The following picture provides details for wiring from an audio input to an unbalanced source device that
has RCA connectors. Positive and ground wires connect to the source. You also can use an RCA Female to
5-Pin Phoenix Cable for this type of connection.
+ - +-
L R
L R
DVX
Source device
RCA Stereo Audio Source Wiring
RCA Stereo Audio Source Wiring
CAUTION: Do not connect the negative terminals to the source connector. Doing so can cause damage to
your device.
HDMI INPUTs
The HDMI INPUT connectors on the rear panel routes digital audio (and video) from connected source input
devices to the connected output devices. These inputs support the following audio formats:
Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby
Digital and DTS support up to 48kHz, 5.1 channels.
For more information about these connectors, including wiring, see the “HDMI INPUTs
” of Rear Panel
Video Inputs and Outputs section.
The DVX models have DXLink input ports, which support embedded audio, in place of HDMI input ports.
See the “DXLINK INPUTs
” section for more information.
MIC/LINE INPUTs
Six 3.5mm 3-pin captive-wire MIC/LINE INPUT connectors allow up to six mono microphones to be
connected to the DVX. Each microphone input supports balanced and unbalanced audio. Each input
supports up to 48V of phantom power.
