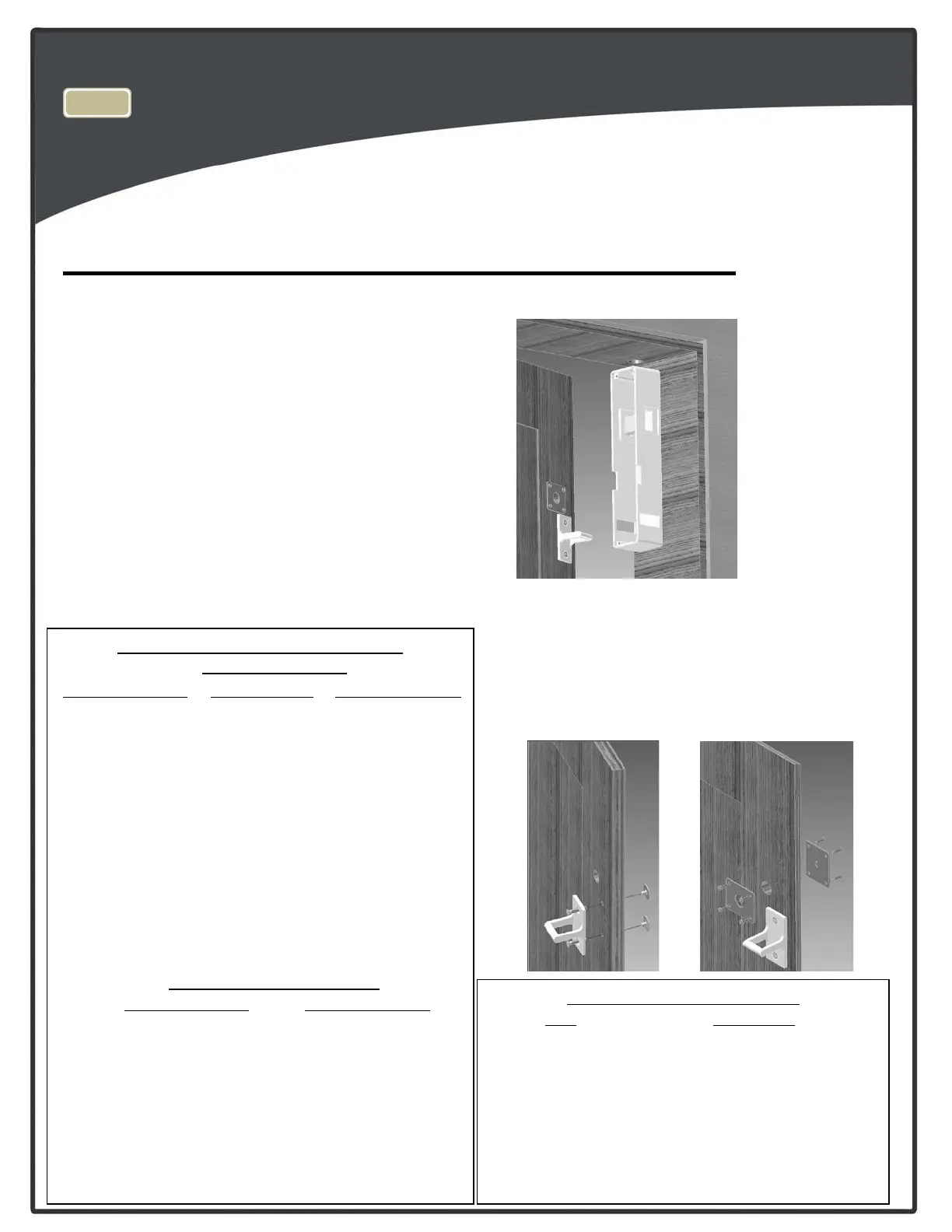

EMI and Flush Strike Interlocks (optional)
The optional EMI or Flush Strike Interlocks are provided
with a combination mechanical lock and electric
contact. They are to be used with existing doors.
The interlock:
x Prevents the lift from running if the door is not
closed.
x Prevents the door from being opened if the
platform is not at the landing.
A length of multi-conductor wire will need to be ran from
the bottom of the lift tower to each interlock. Consult
local codes for type and mounting requirements. After
wiring is completed, the wiring harness must be
plugged into it appropriate receptacle on the controller
(ref pg 5).
Flush Strike Interlock
Refer to the instructions inside the strike box for
mounting requirements.
EMI Interlock
1) Position interlock to door jamb and mark
mounting holes.
2) Fasten Interlock to door jamb with #8 wood
screws.
3) Route 4-conductor Interlock cable thru hole in
top of interlock and make wire connections.
4) Attach door keeper and emergency key plates
to hoistway door.
14
EMIInterlockWiringConnections
EMI
LiftHarness
Black(A) Black
Black(B) Green
Yellow(C) White
Yellow(D) Orange
N/A Blue+
N/A Brown+
N/A Red
+MustbetiedtogetherwhenusinganEMIInterlock.
FlushStrikeInterlockWiringConnections
ForACpoweredlifts
FlushStrikeWires
RectifierWires LiftHarnessWires
BlackͲWhiteStripe Red
BlackͲWhiteStripe Black
Yellow Black
Yellow Green*
Yellow White
Blue Orange
Grey Blue
Green Brown
Red Red
Black Black
Yellow Red
Yellow Green*
ForOptionalDCpoweredlifts
FlushStrikeWires
LiftHarnessWires
BlackͲWhiteStripe Black
BlackͲWhiteStripe Green*
Yellow White
Blue Orange
Grey Blue
Green Brown
Red Red
Black Green*
*Thisisasin
lewirethatwillhave2wiresconnectedtoit.
