Harmonic Drive FHA Series - Page 11

Harmonic Drive LLC 800-921-3332
8
Chapter 1 Overview of the FHA-C series

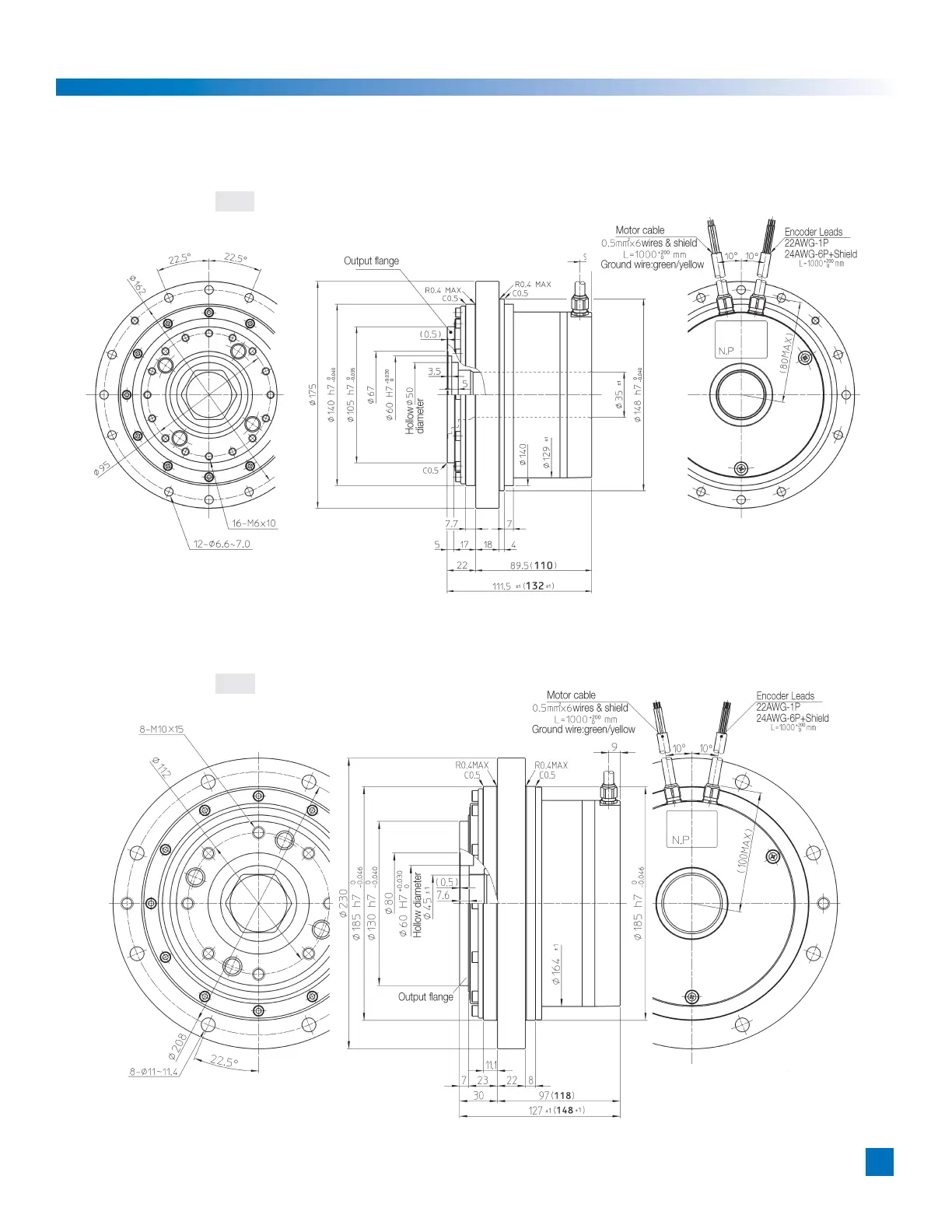

Unit: mm (third angle projection)
• FHA-32C-xx-US250 INC
• FHA-40C-xx-US250 INC
Note 1: The parenthesized dimensions are applied for the actuators with a brake option.
Note 2: For detail dimensions, make sure of them referring our drawings for shipping.
