Harmonic Drive FHA Series - For Absolute Positioning System

9
Chapter 1 Overview of the FHA-C series
1-5-2 Absolute Systems ABS

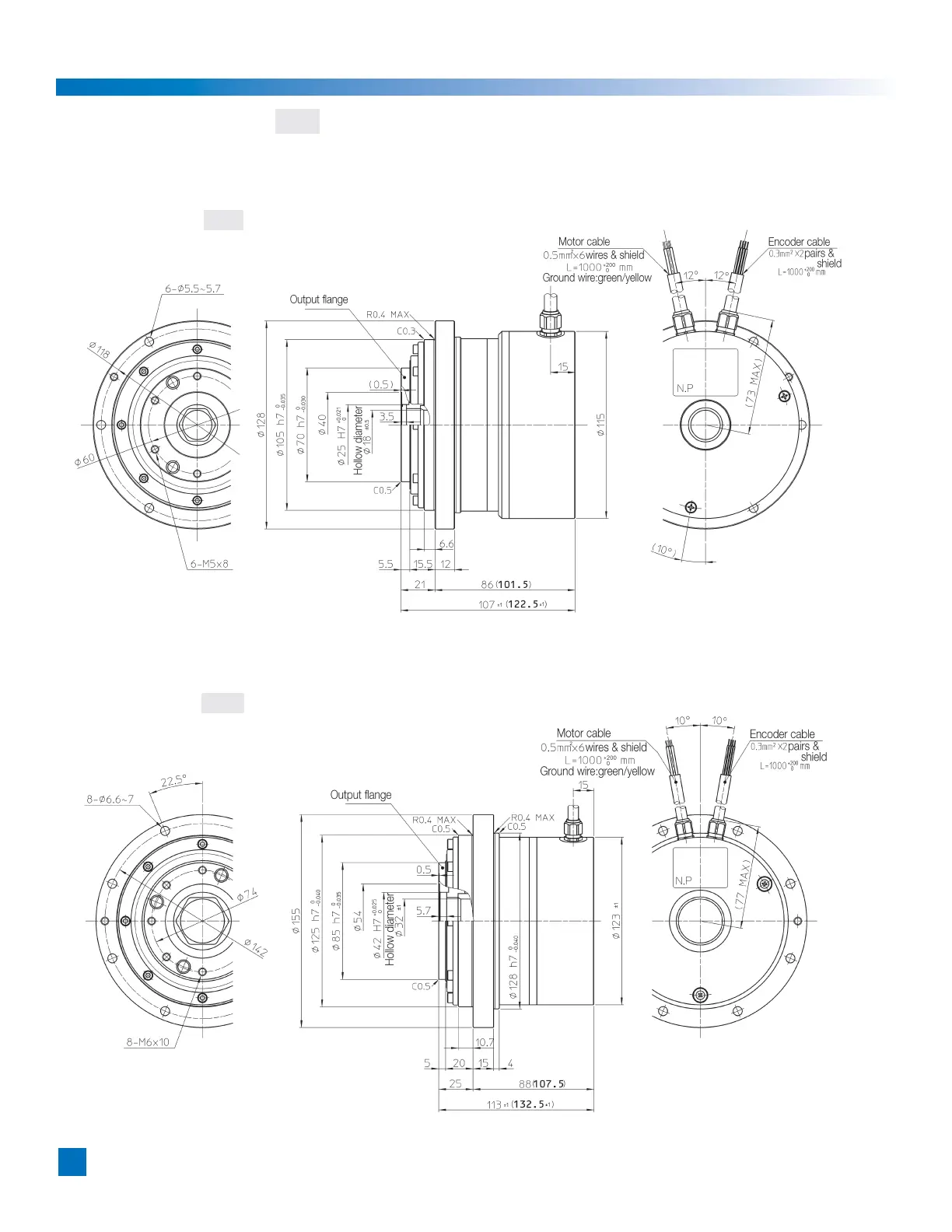

The external drawings are shown as follows:
• FHA-17C-xx-S248 ABS
• FHA-25C-xx-S248 ABS
Note 1: The parenthesized dimensions are applied for the actuators with a brake option.
Note 2: For detail dimensions, make sure of them referring our drawings for shipping.
