Harmonic Drive FHA Series - FHA-C Actuator Mechanical Data and Accuracy; External Dimensions of FHA-C Actuators

7
Chapter 1 Overview of the FHA-C series
1-5 External dimensions of FHA actuators
1-5-1 Incremental Systems
INC

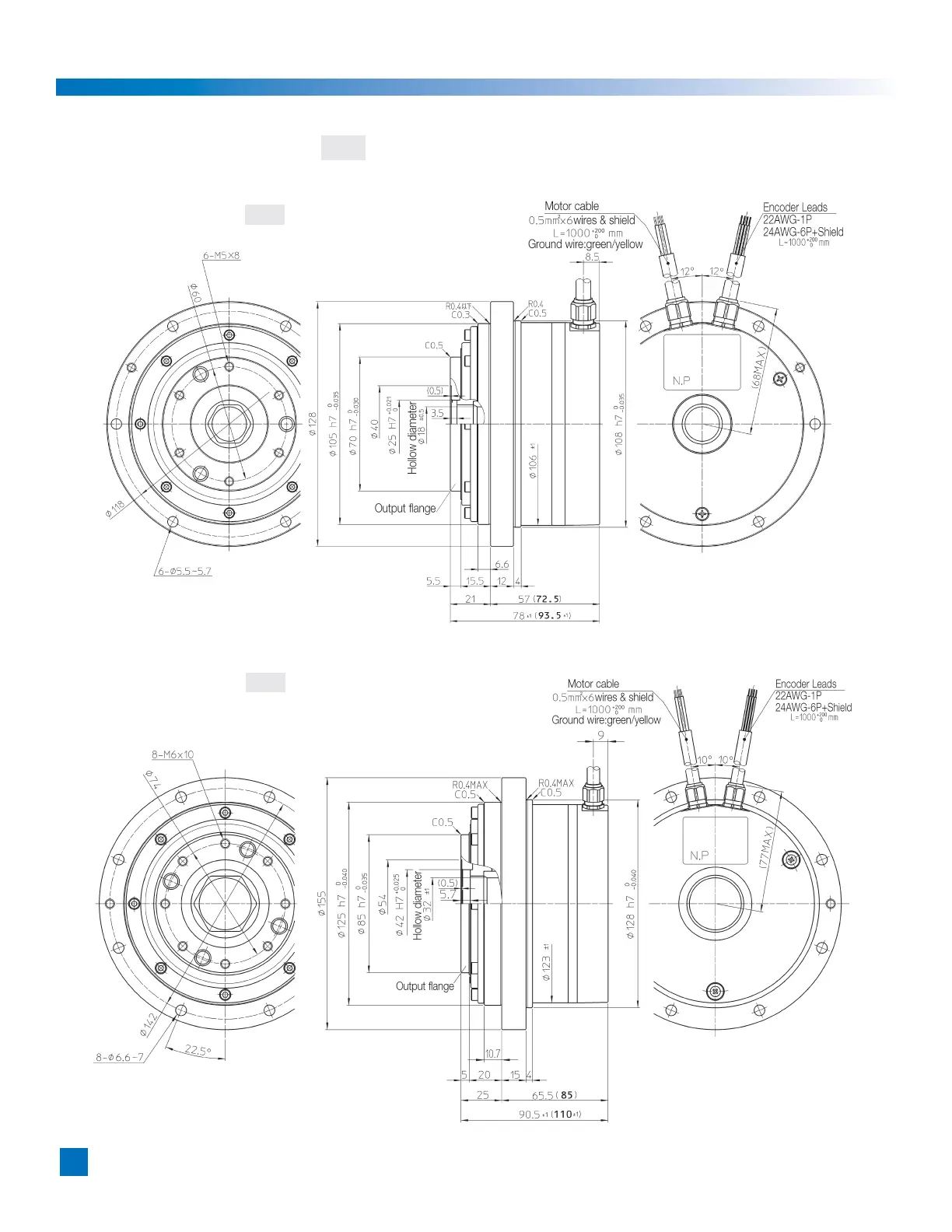

The external drawings are shown as follows:
• FHA-17C-xx-US250 INC
• FHA-25C-xx-US250 INC
Note 1: The parenthesized dimensions are applied for the actuators with a brake option.
Note 2: For detail dimensions, make sure of them referring our drawings for shipping.
