10 NSG Front Panel
CHAPTER 1
NSG Front Panel
The front panel of the NSG contains the following:
■
RS-232 connector - enables to connect the NSG to another PC.
■
QAM Output LEDs - up to sixteen LEDs for monitoring QAM output
ports. The number of LEDs varies according to the number of QAM
output ports. In NSG 9116 there are sixteen LEDs, in 9112 twelve
and in NSG 9108 there are eight LEDs.
■
Power, Alarm, Input 1 and Input 2 LEDS - enables to monitor the
status of the NSG power, alarm and input ports.
■
Control panel- comprised of a display area and a keypad. The control
panel enables preliminary configuration and monitoring of the NSG.

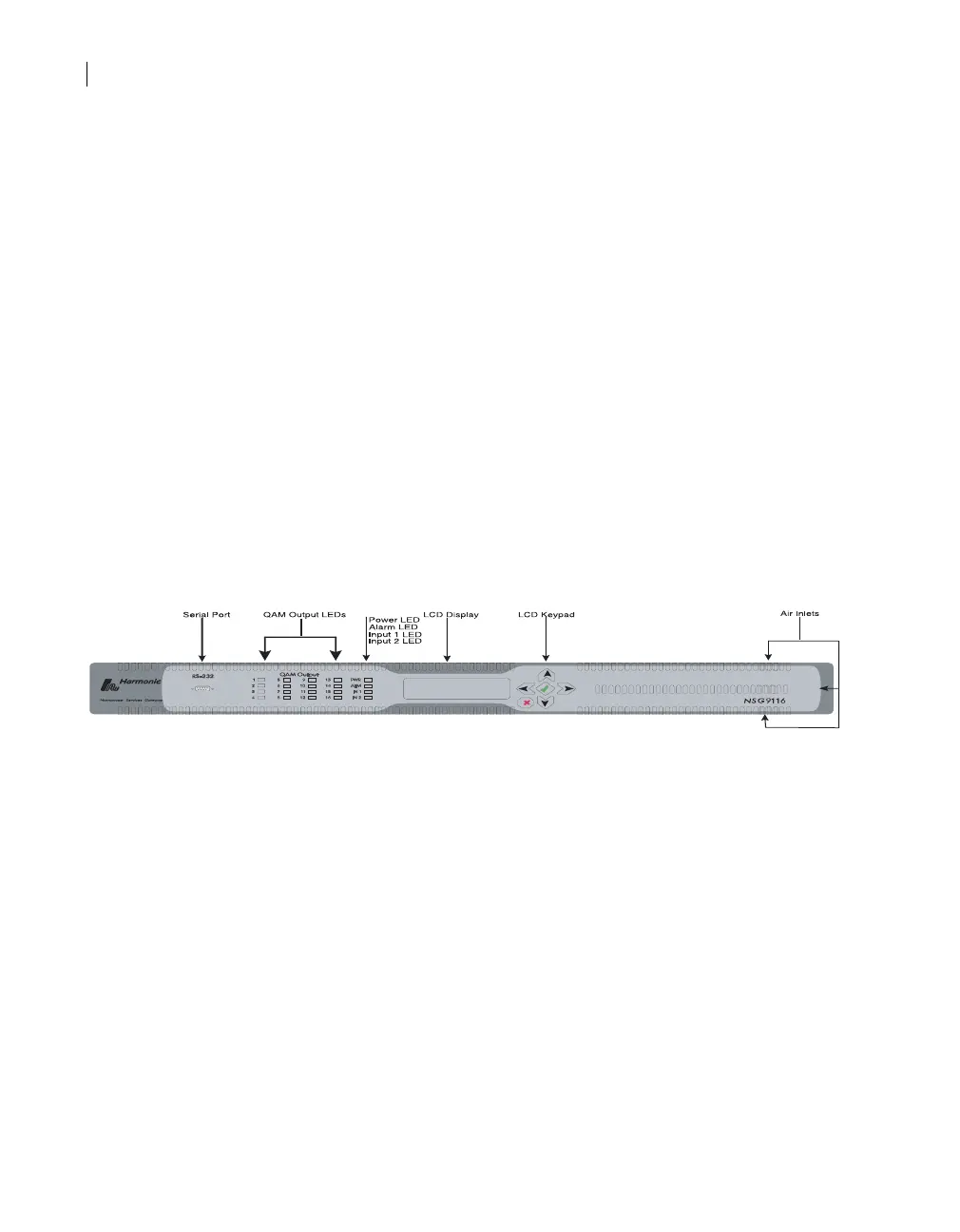

The following figure illustrates the front panel of the NSG 9100:
Control Panel
The control panel allows you to monitor and configure the NSG. You can
start using the control panel once the NSG boots up and the Power up
screen appears in the control panel display.
