Harmonic NSG 9116 - Configuring the NSG

30 Preliminary Configuration of the NSG
CHAPTER 2
To quit an editing session and to apply changes:
■
Click Enter:
The screen name appears without the word “Edit”.
The newly configured parameter appears in the second line of the
screen.
To quit an editing session without applying changes:
■
Click <Esc>.
The screen name appears without the word “Edit”.
Unchanged parameters appear in the second line of the screen.
Configuring the NSG
Configure the NSG unit only after boot up. The control panel allows you
to configure the following:
■

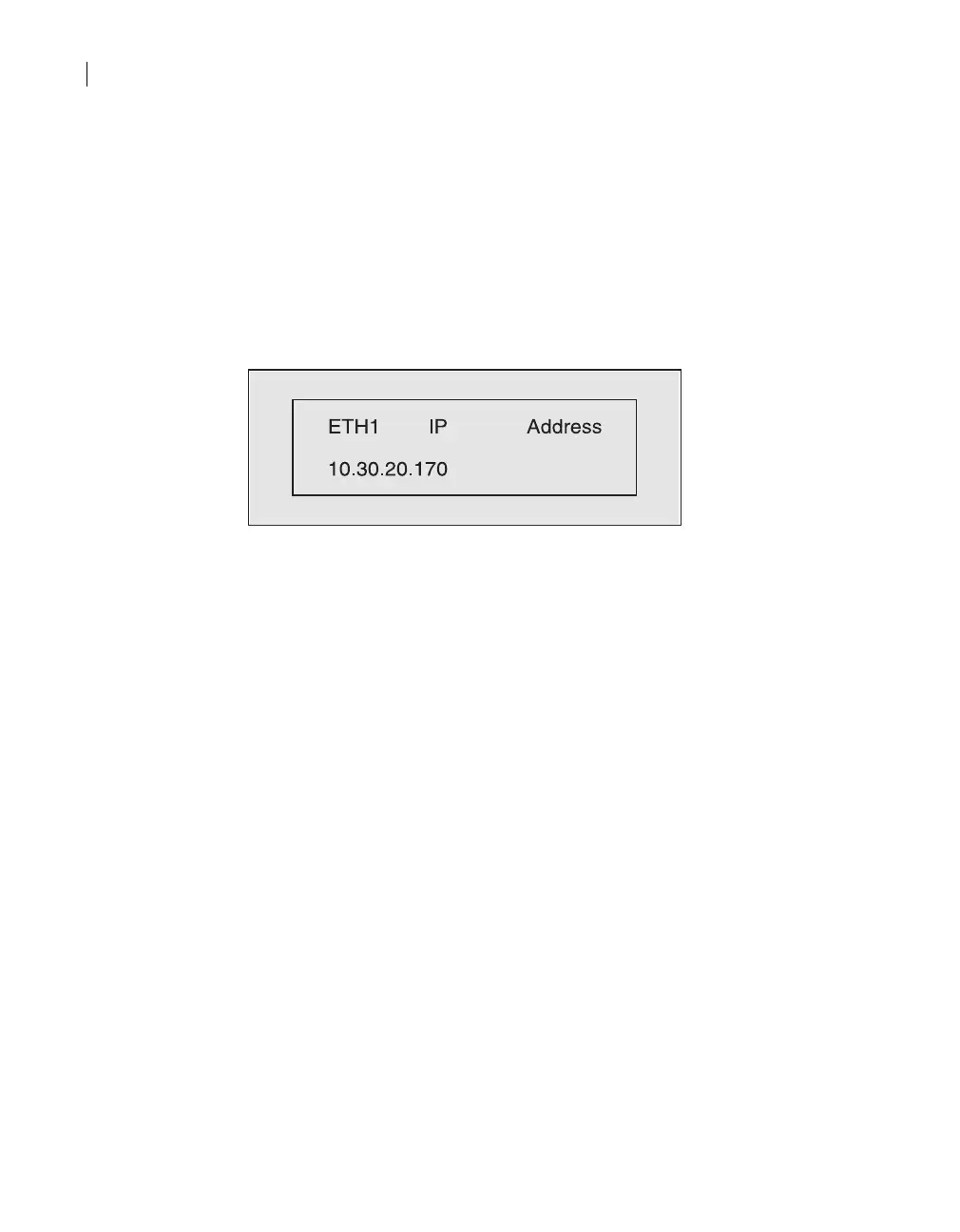

IP address, subnet mask and gateway of ETH1.
■
PHY configuration of ETH1.
■
BOOTP for ETH1
■
IP address and subnet mask of ETH2.
■
PHY configuration of ETH2.
■
Date and time.
