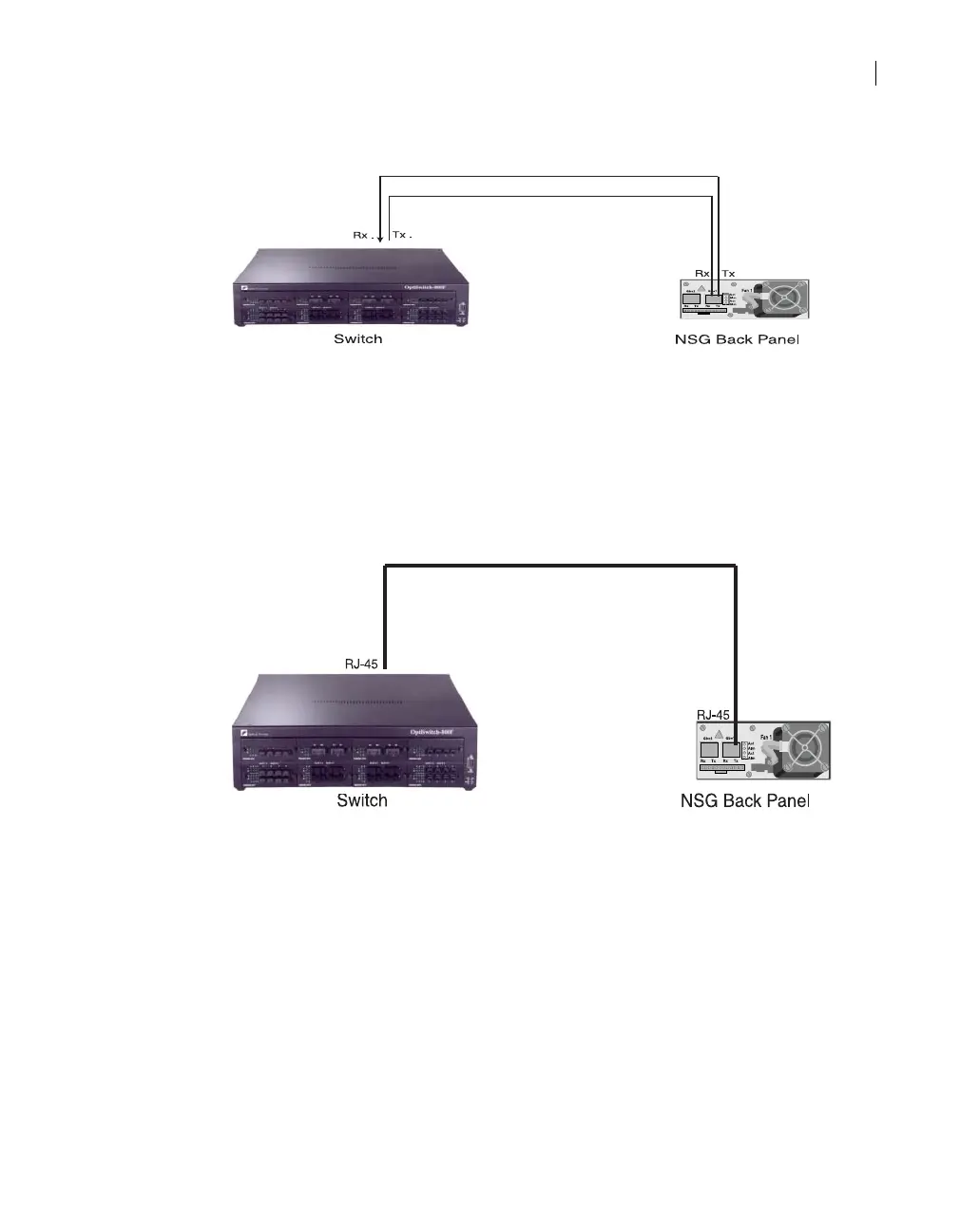

21Cabling and Configuration Cabling the NSG
The NSG also supports advanced fiber optic cabling schemes such as
cascading, redundancy, IP Switching and including a DWDM in your NSG
network. See Appendix C, “Advanced Fiber Optic Connections,” for
instructions.
Connecting the QAM-RF Output Cables
The NSG has up to eight RF output ports, labeled RF OUT and numbered
1– 8, which implement the dual upconverter technology. Each port
delivers two RF channels.
To connect the RF Cables:
➭
Use RG-6 coaxial cables equipped with F-type connectors to connect
the outgoing ports to your output equipment according to your
network schema.
