5000/5100 Series Digital Analog Clocks Installation and Operation Manual 3
Chapter 1: DAC-5000 Series Digital Analog Clocks
Installation
Wall Mounting

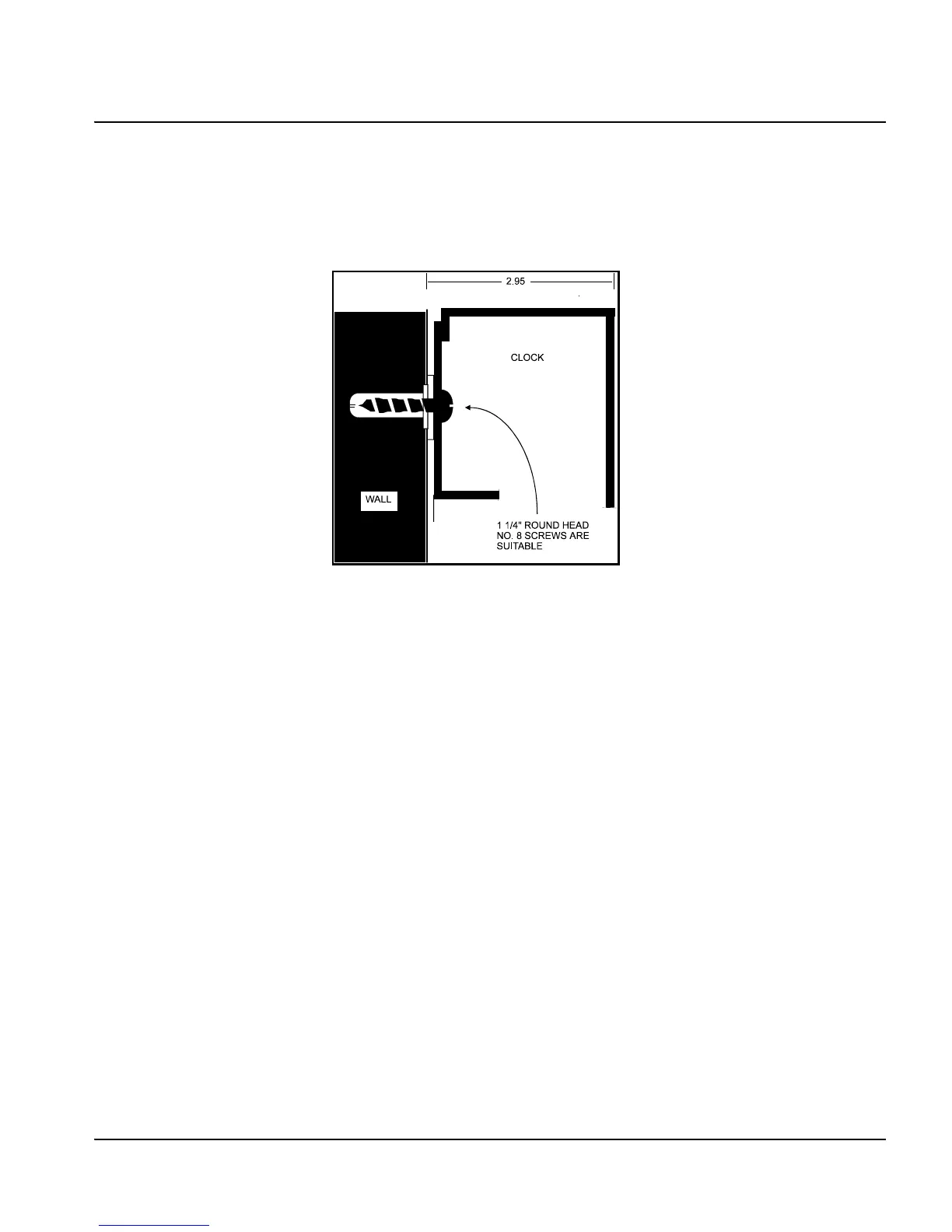

Figure 1-1. Typical Wall Mount
The DAC-5008, DAC-5012 and DAC-5016 Digital Analog Clocks are
designed for wall mounting. Rack mounting kits are optional.
The rear panels of both the DAC-5012 and DAC-5016 clocks are
provided with four rubber feet and four keyholes while the DAC-5008
has only three keyholes. These are dimensioned for #8 screws. The rear
panel also has a large depression to contain the connecting wires and
allow the clock to be placed close to the wall.
