6 5000/5100 Series Digital Analog Clocks Installation and Operation Manual
Chapter 1: DAC-5000 Series Digital Analog Clocks
Rear Panel

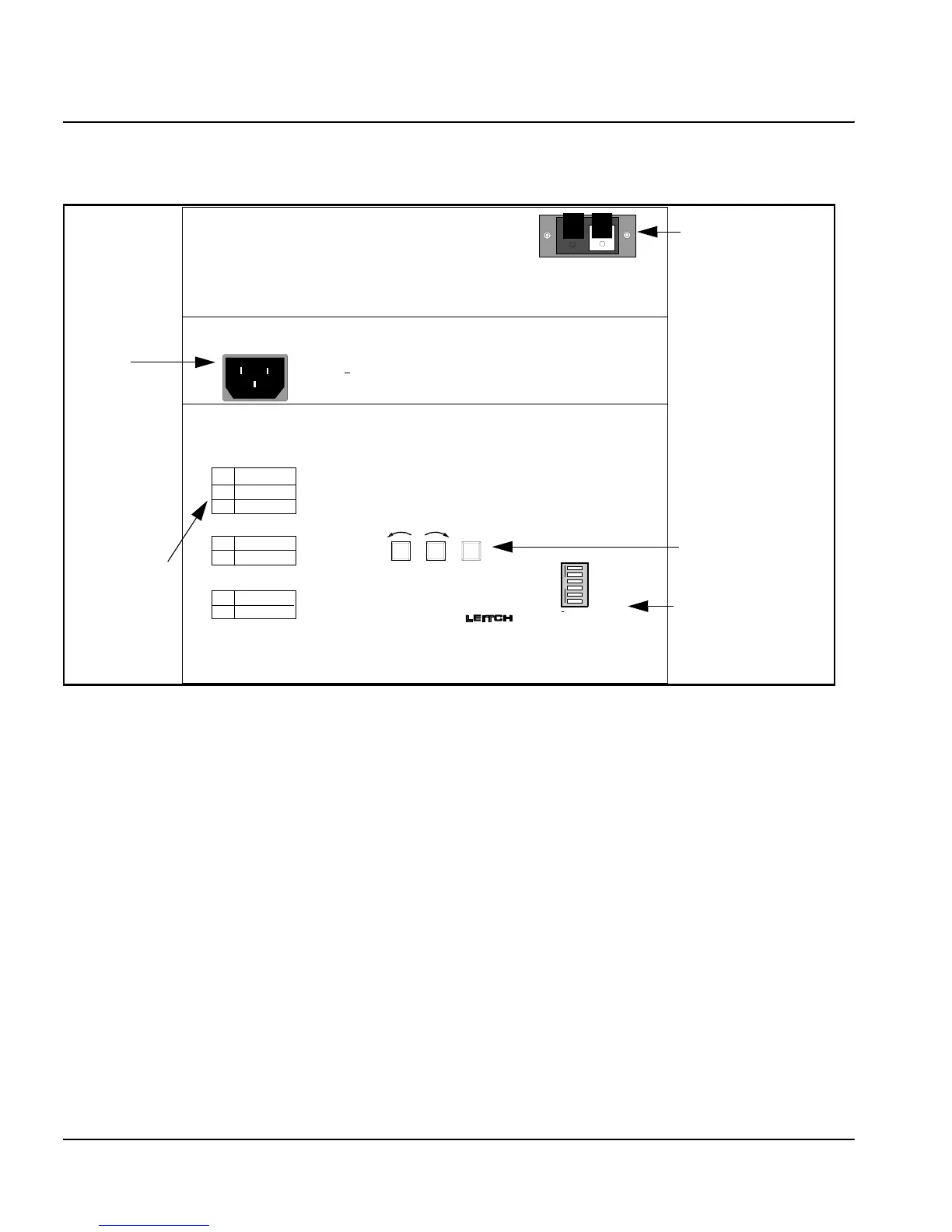

Figure 1-2. DAC-5008/5012/5016 Rear Panel
The rear panels of the DAC-5008/5012/5016 have two spring-loaded
speaker-type connectors (one red, one black) to accept the Primary
Reference input (i.e. SMPTE Serial Timecode or Impulse Drive
signals).
A standard AC connector for the power feed of the unit can be found in
the recessed area running across the middle of the rear panel.
Spring Loaded
“Speaker-Type”
Connectors (red
and black)
Push-Buttons:
CW, CCW,
MANUAL SET
DIP Switches
Clock Modes
(factory set)
AC
Connector
(plug)
115/230 VAC 10%250/60Hz
25VA Max
+
OPERATION MODE
DAC-5012
DAC-5016
230 VAC
115 VAC
LINE VOLTAGE
DAC-5008
50 HZ
60 HZ
LINE FREQUENCY
12 4356
OPEN
Time Code
SMPTE
Internal
Nor mal
Nor mal
Step Seconds
Impulse
EBU
Line
Use Offset
Run On Secondary
Sweep Seconds
CW
CCW
MANUAL
SET
Multifunctional Pushbuttons
Full Instructions in Manual
