DA-DHR/DH/DSR/DS/HR/H6802+ Installation and Operation Manual 15
Chapter 2: Installation
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Setting J3 Jumpers
The J3 jumper is used to set channel configuration, control mode, and
enabling input backup. Follow this procedure to set the jumper:
1. Locate jumper set J3 on the module. Figure 2-2 shows the standard
location of the jumper set.

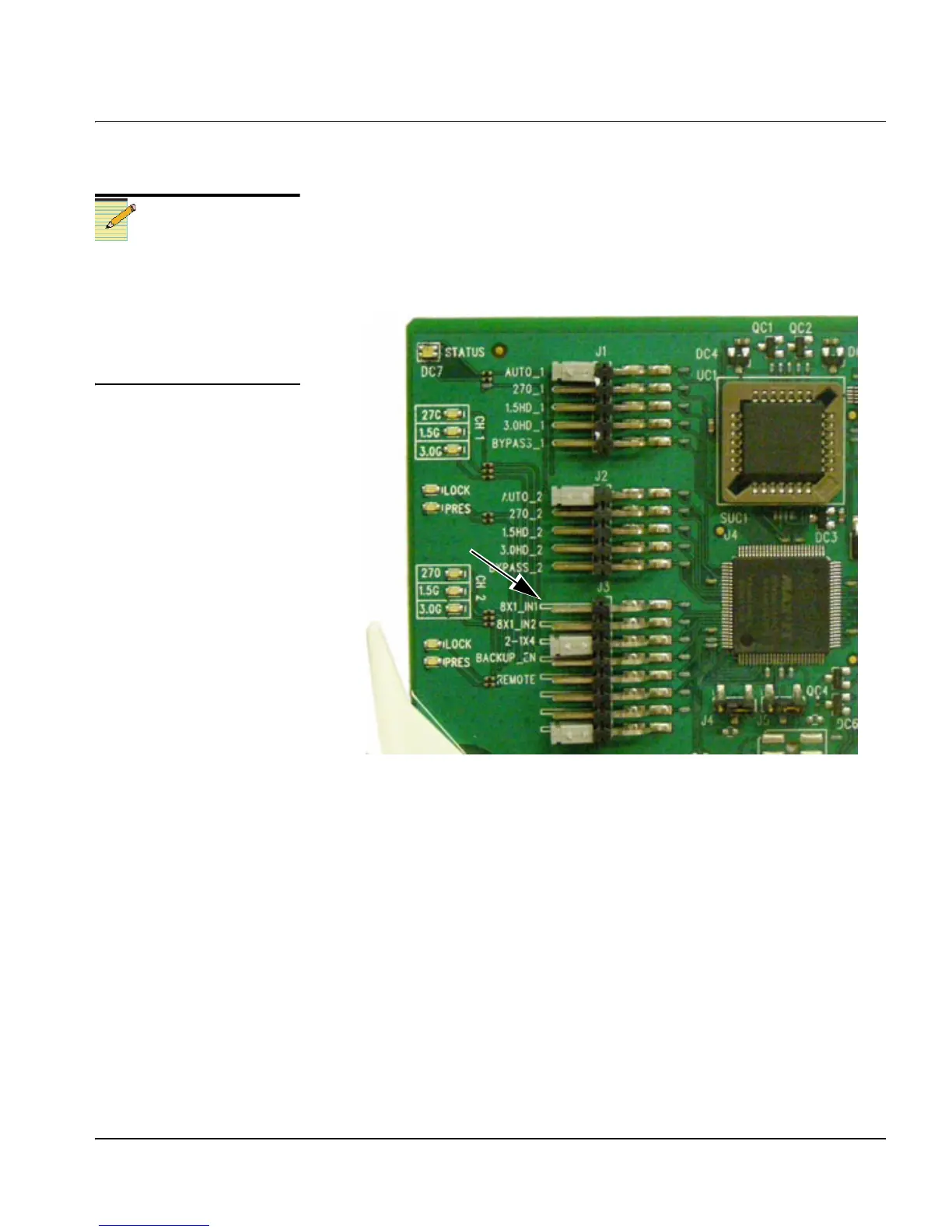

Figure 2-2. J3 Jumper Set Location
2. Place a jumper on the pin that corresponds to the setting that you
want. (See page 21 for a description of the J3 settings.)
Note
You need to configure modules
for local or remote operation
before power-up. To change the
configuration, first remove
power from the module, reset
the jumper, and then reapply
power.
