Chapter 2: Installation
Setting J4/J5 Jumpers
The J4 and J5 jumpers are used to set the output slew rate control.
Follow this procedure to set the jumpers:
1. Locate the J3 and J4 jumper sets on the module. Figure 2-3 shows
the standard location of the jumper sets.

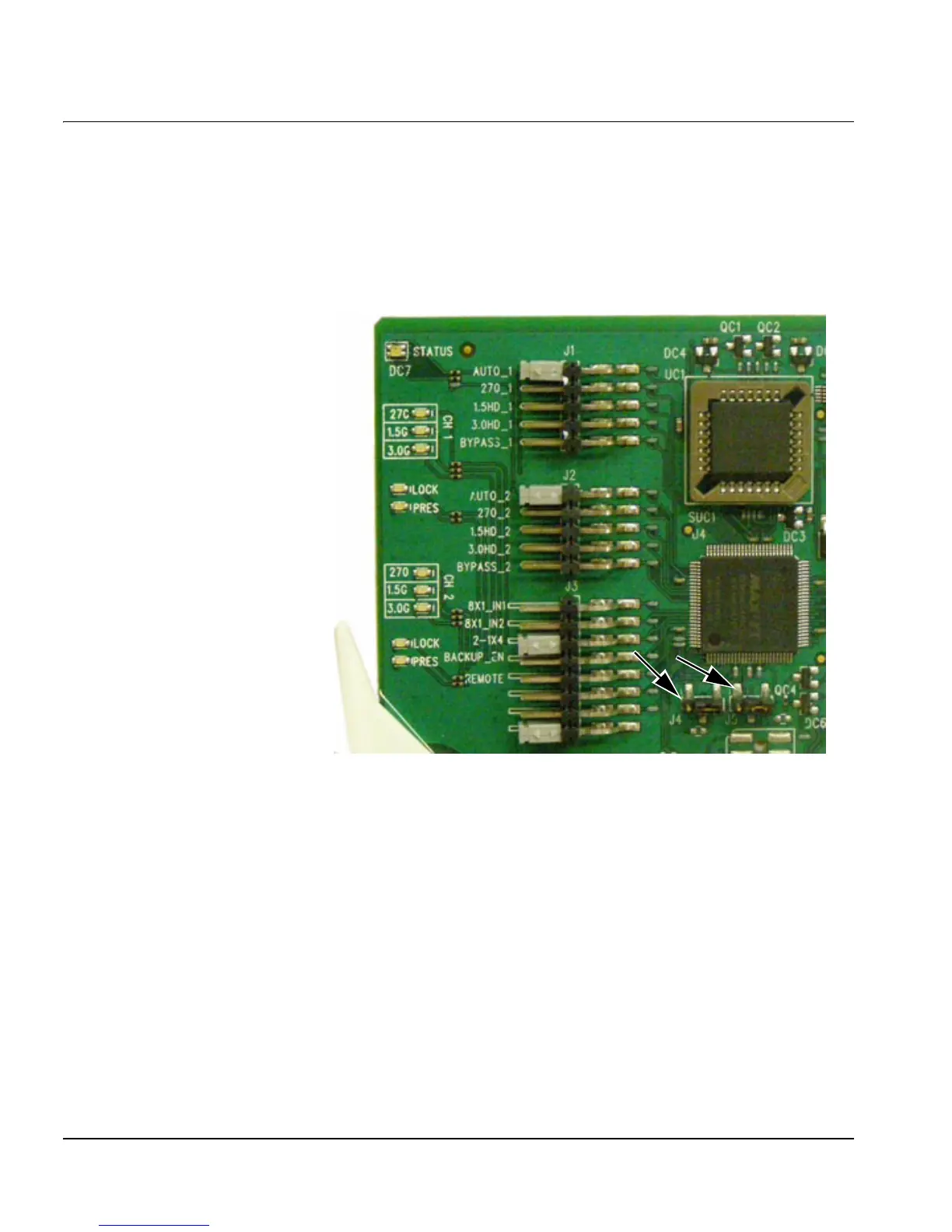

Figure 2-3. J4/J5 Jumper Set Locations
