DA-DHR/DH/DSR/DS/HR/H6802+ Installation and Operation Manual 17
Chapter 2: Installation
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
2. Place a jumper on the pins that correspond to the slew rate you
want. See Table 2-4.

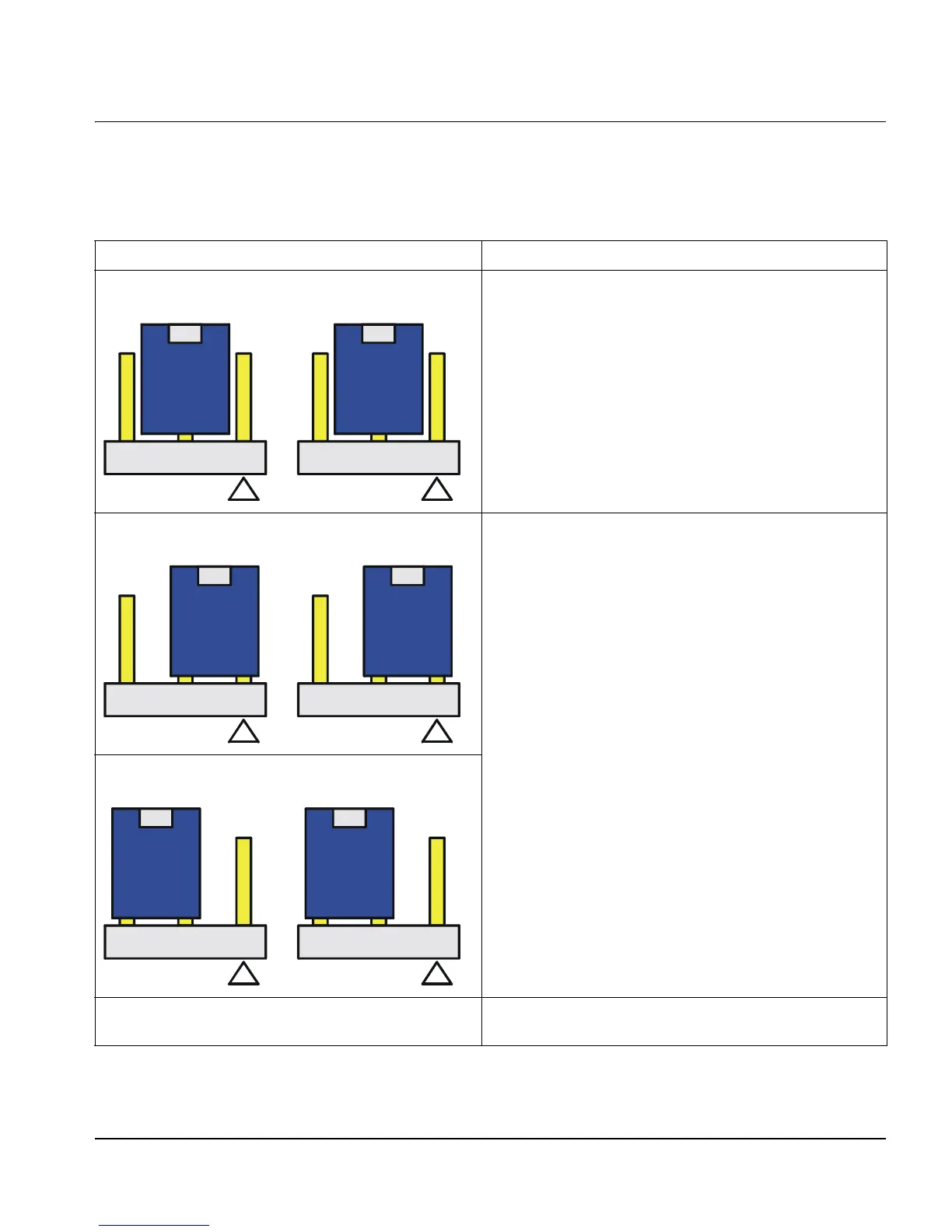

Table 2-4. J4/J5 Jumper Set Settings
Slew Rate Settings Modules Using this Setting
Automatic
Reclockable input signal in
• DA-DHR6802+
• DA-HR6802+
Manual — High
• DA-DH6802+
• DA-H6802+
Non-reclockable input signal in
• DA-DHR6802+
• DA-HR6802+
Manual — Low
Jumper Setting Not Required
• DA-DSR6802+
• DA-DS6802+
J4 J5
321
321
J4 J5
321
321
J4 J5
321
321
