Harris M7300 - Ch-721 Serial Programming Cable Ca-104861; Figure 11-4: Programming Cable CA-104861

MM-014763-001, Rev. E
71
11.4 CH-721 SERIAL PROGRAMMING CABLE CA-104861
Serial Programming Cable CA-104861 (5 feet) can be used to program and configure the CH-721 control
head via a Personal Computer. This cable has a female DB-9 connector on one end for connection to the
PC’s serial port connector and a male DB-9 connector on the other end for connection to the serial port
connector on the rear of the head. The cable’s assembly and wiring diagrams are shown in Figure 11-4
below.
(Made From PS-CA-104861 Rev. A)

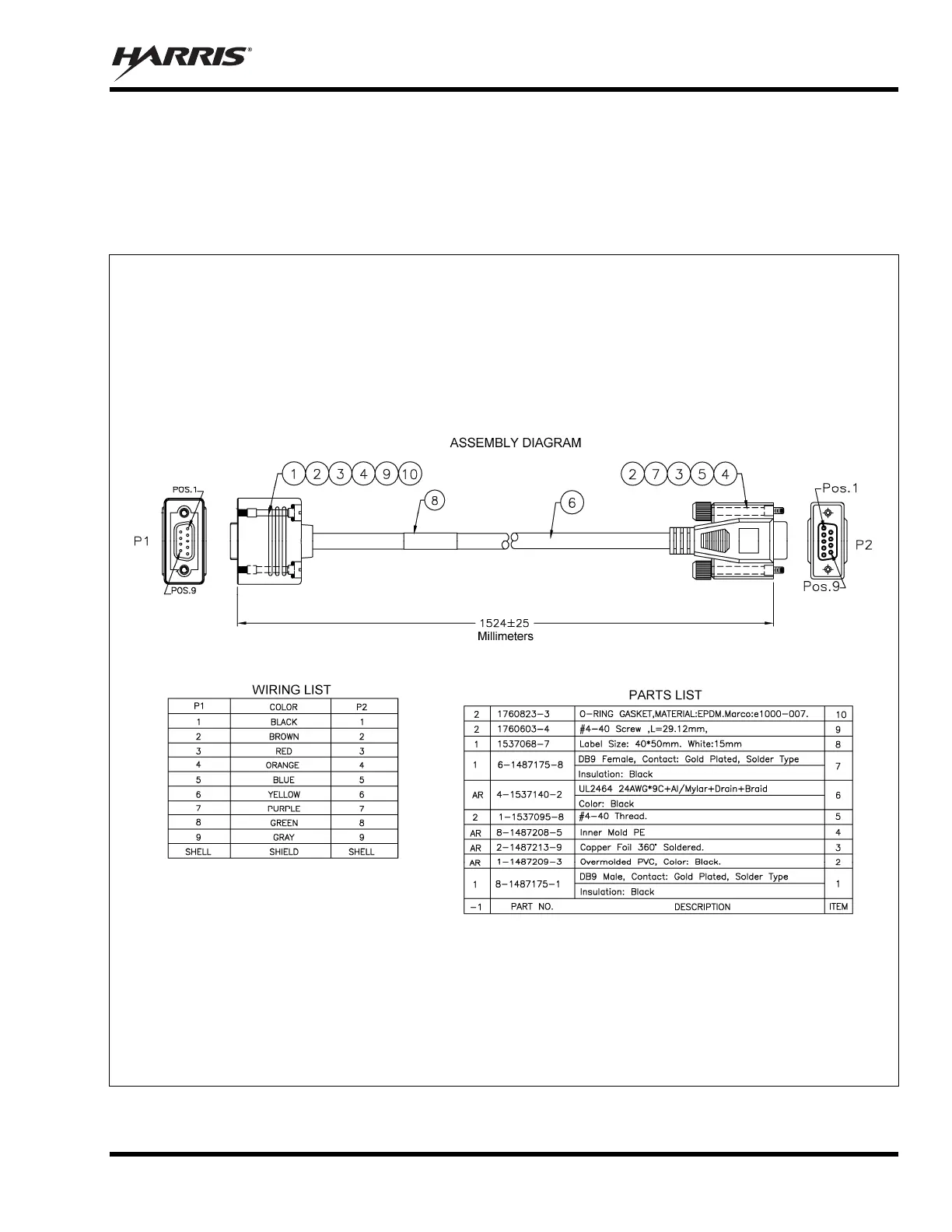

Figure 11-4: Programming Cable CA-104861
