2-2
WARNING: Disconnect primary power prior to servicing
Harris Micromax FM Exciter Installation REV1 01/12/2007
2.4.1 A/C Power connection
The Micromax operates on 80-260 Volts AC (50 or 60 Hz single phase)
Connect the AC power on rear panel.
2.4.2 RF output connection
Connect an antenna or an RF load to the type BNC female RF output connector on the rear panel.
2.4.3 Audio input connections
All program audio connections are on the rear panel. Micromax is designed to accept any one of the
three types of program audio inputs:
(1) MPX (composite)
(2) Mono
(3) Left and right channels (using the built-in stereo generator)
(4) AES/EBU with optional digital input card

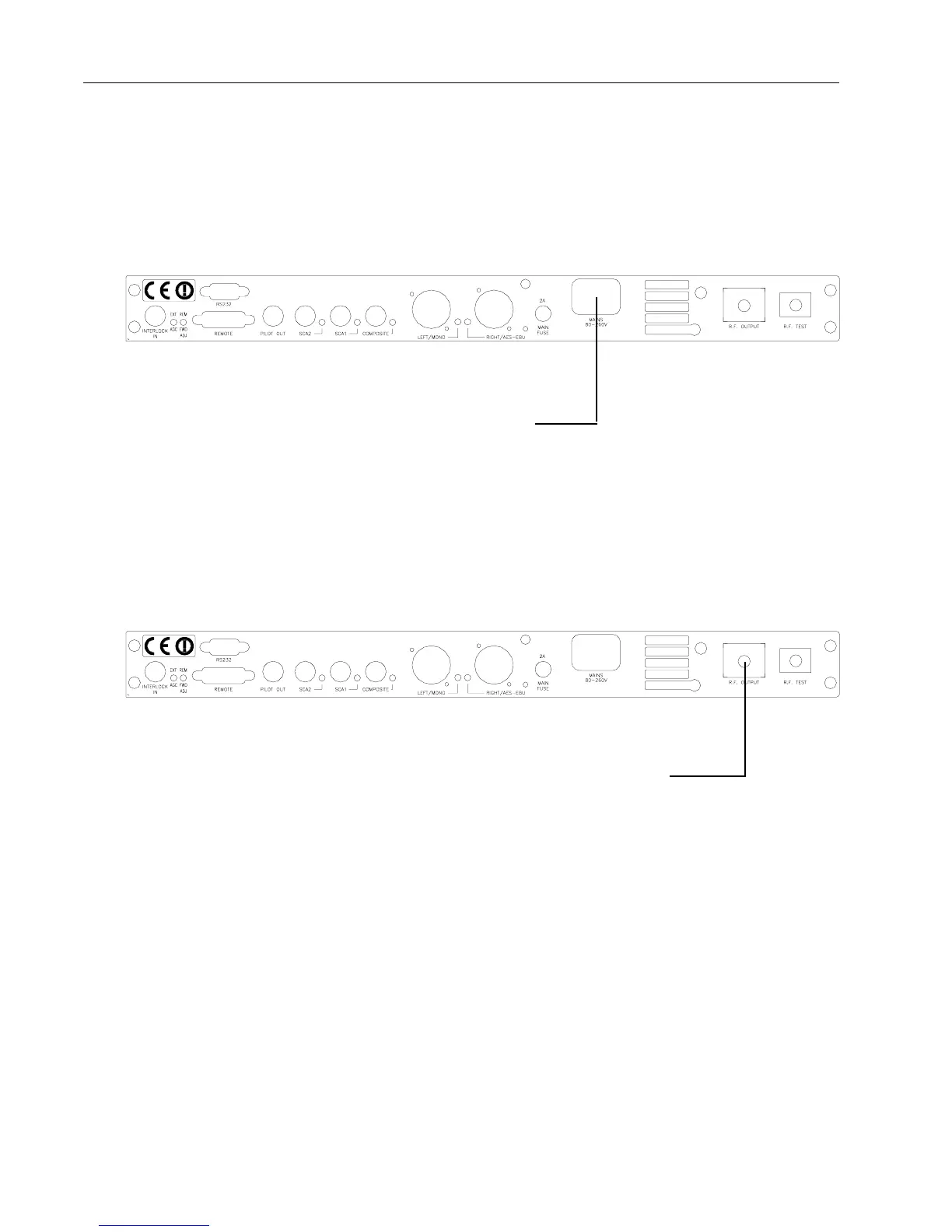

Connect AC cord here
Connect RF Output to antenna here
(REAR PANEL VIEW)
(REAR PANEL VIEW)
