Harris Micromax FM Exciter Installation REV1 01/12/2007
2-3
WARNING: Disconnect primary power prior to servicing
2.4.3.1 MPX (composite) audio input connection
Connect MPX (composite) audio input to BNC connector on rear panel. On the front panel LCD
display, go to SET menu and select mono (composite) from the audio mono/stereo selection (see section 3 of
manual on how to navigate the LCD display).
2.4.3.2 Mono audio input connection
Connect Mono audio input to XLR connector on rear panel. On the front panel LCD display, go to SET
menu and select mono (composite) from the audio mono/stereo selection (see section 3 of manual on how to
navigate the LCD display).

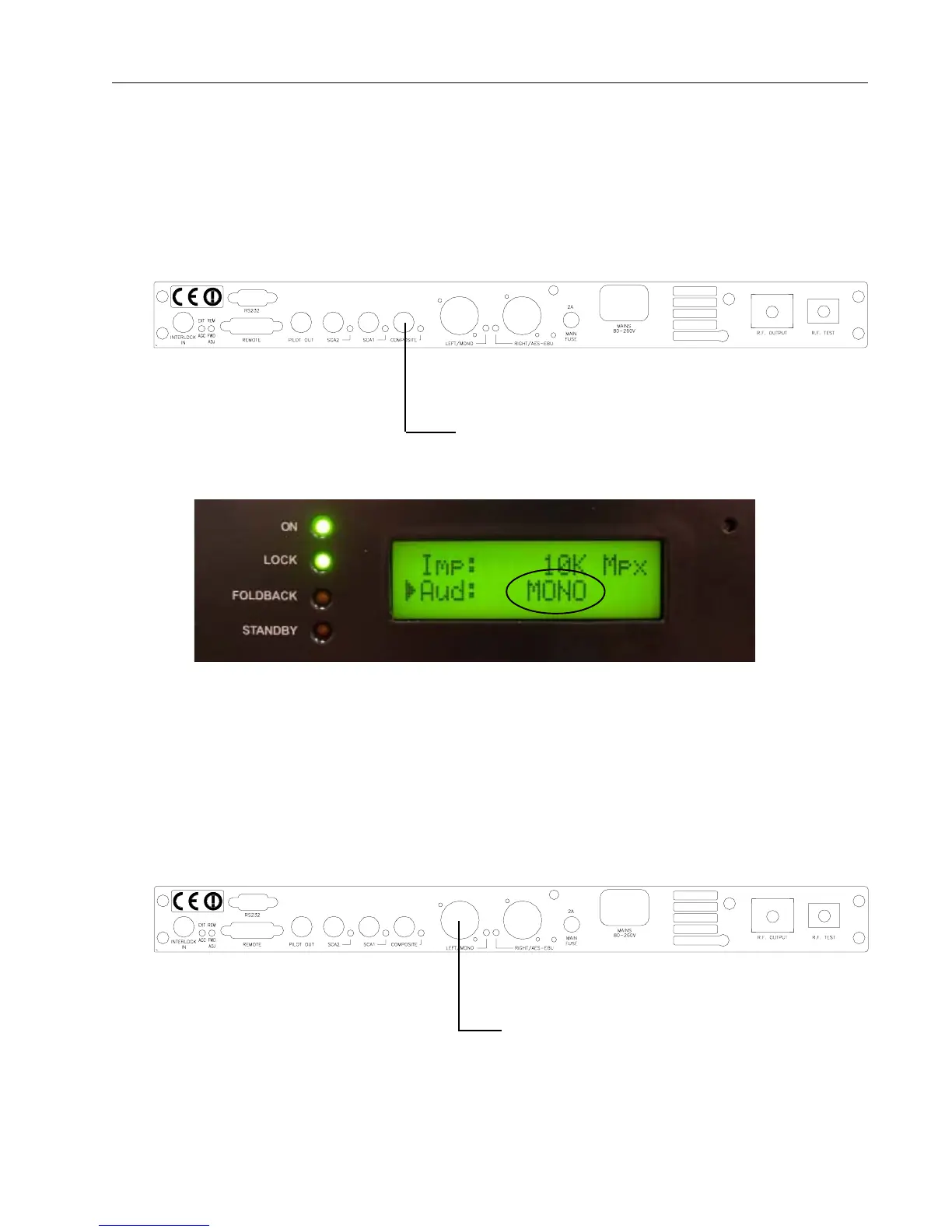

Connect mono audio input here
Connect MPX (composite) audio input here
(REAR PANEL VIEW)
(REAR PANEL VIEW)
