2-4
WARNING: Disconnect primary power prior to servicing
Harris Micromax FM Exciter Installation REV1 01/12/2007

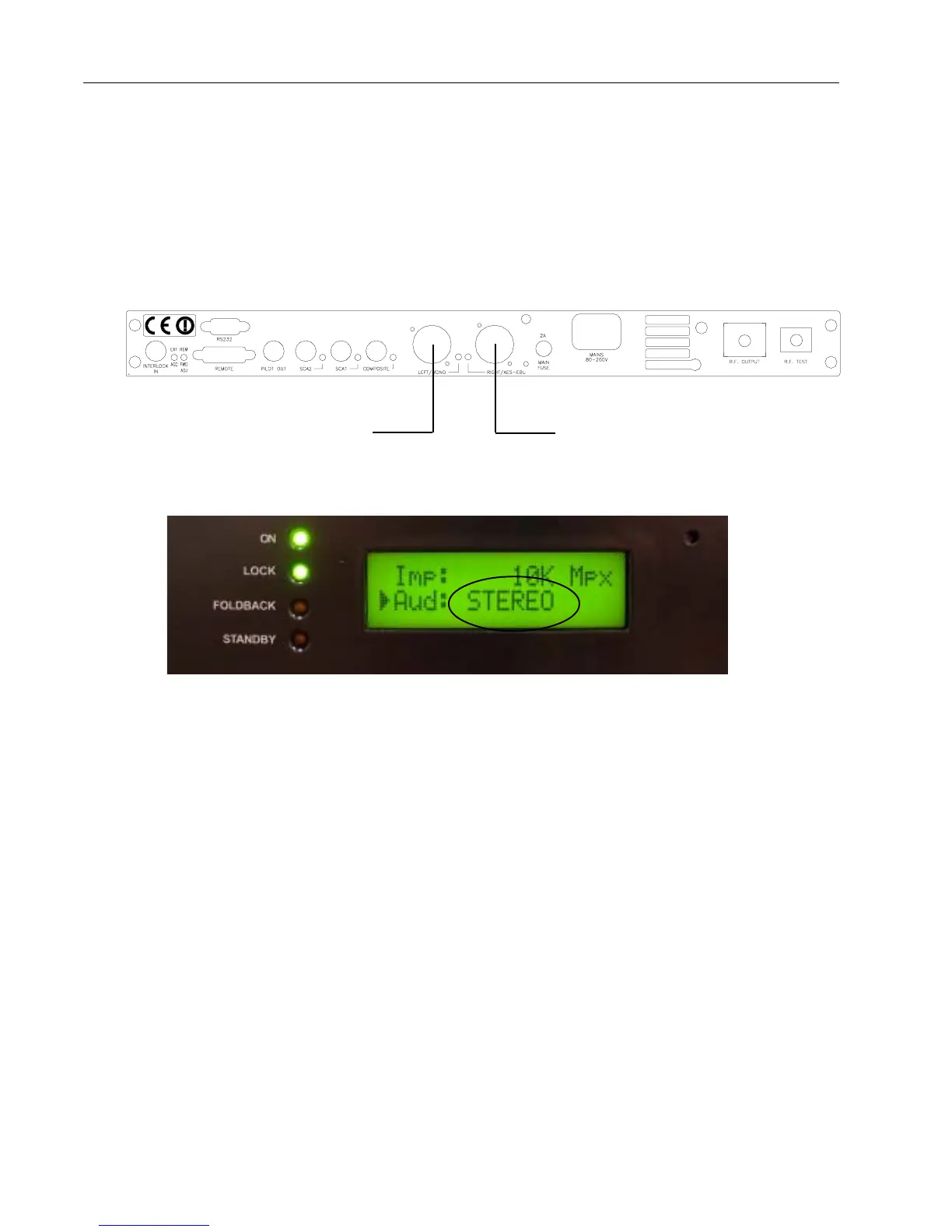

2.4.3.3 Left and right channel audio inputs (using the built-in stereo generator)
Connect left and right channel audio inputs to XLR connectors on rear panel. On the front panel LCD
display, go to SET menu and select stereo from the audio mono/stereo selection (see section 3 of manual on
how to navigate the LCD display). This will activate the built-in stereo generator and turn on the 19 kHz stereo
pilot tone at 10% injection.
Connect left audio input here
Connect right audio input here
(REAR PANEL VIEW)
