Harvia REMOTE START system - Connection to Dampfgenerator SGH und HGD

Installation instructions, only for experts p. 10/15

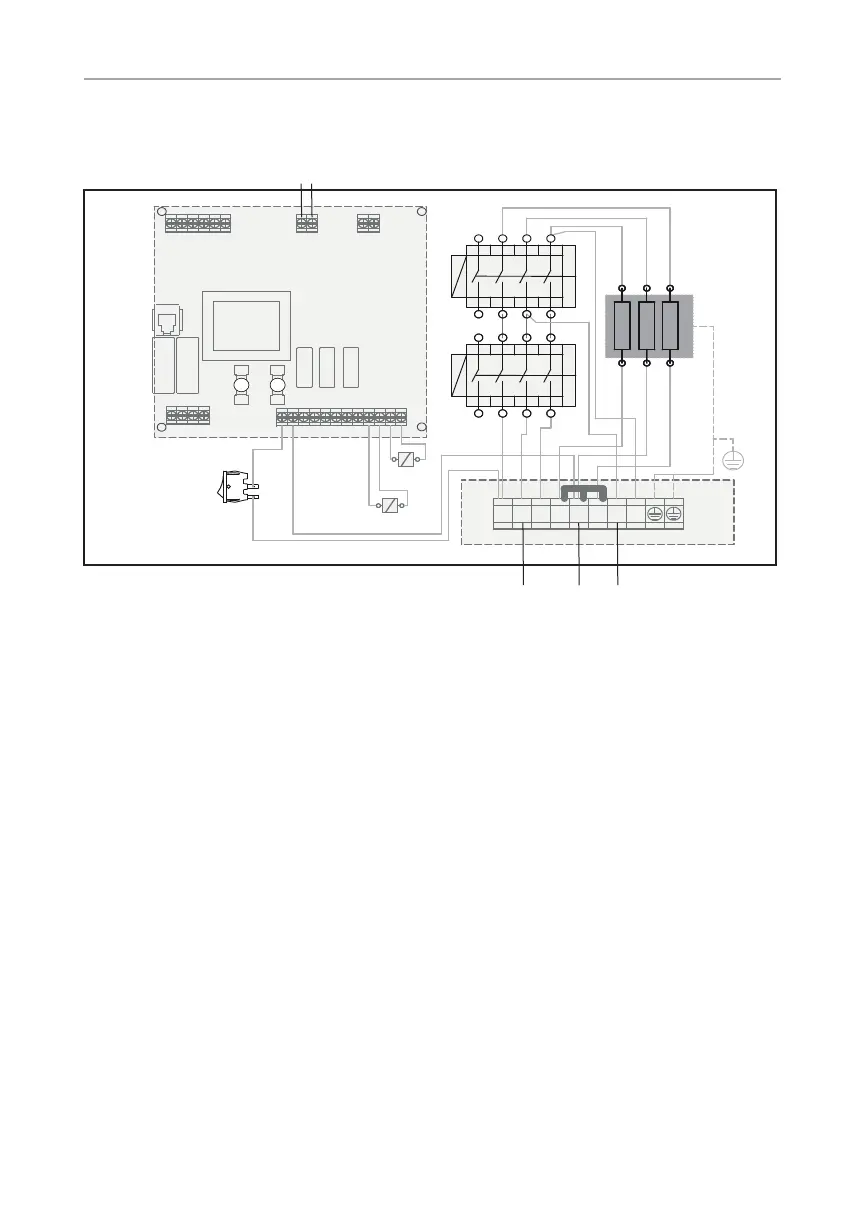

5.5. Connection to Dampfgenerator SGH und HGD
Main switch Hauptschalter
A2
A1
K1
K2
K2
K1
L
N
N
L
L
N
L
N
N
L
L
N
L1
L2
L3
N N
Out1 Out2
N
L3
L2
L1
A2
A1
1 2 3 4
1 2 3 4
1234
1234
12 3
54
● In the settings, the function „Selection of the remote start function“ must be
set to I-O
