Harvia REMOTE START system - Connection to Xenio CX110 C, Xafir CS110 C; Connection To Xenio Cx170, Xafir Cs170

Installation instructions, only for experts p. 8/15

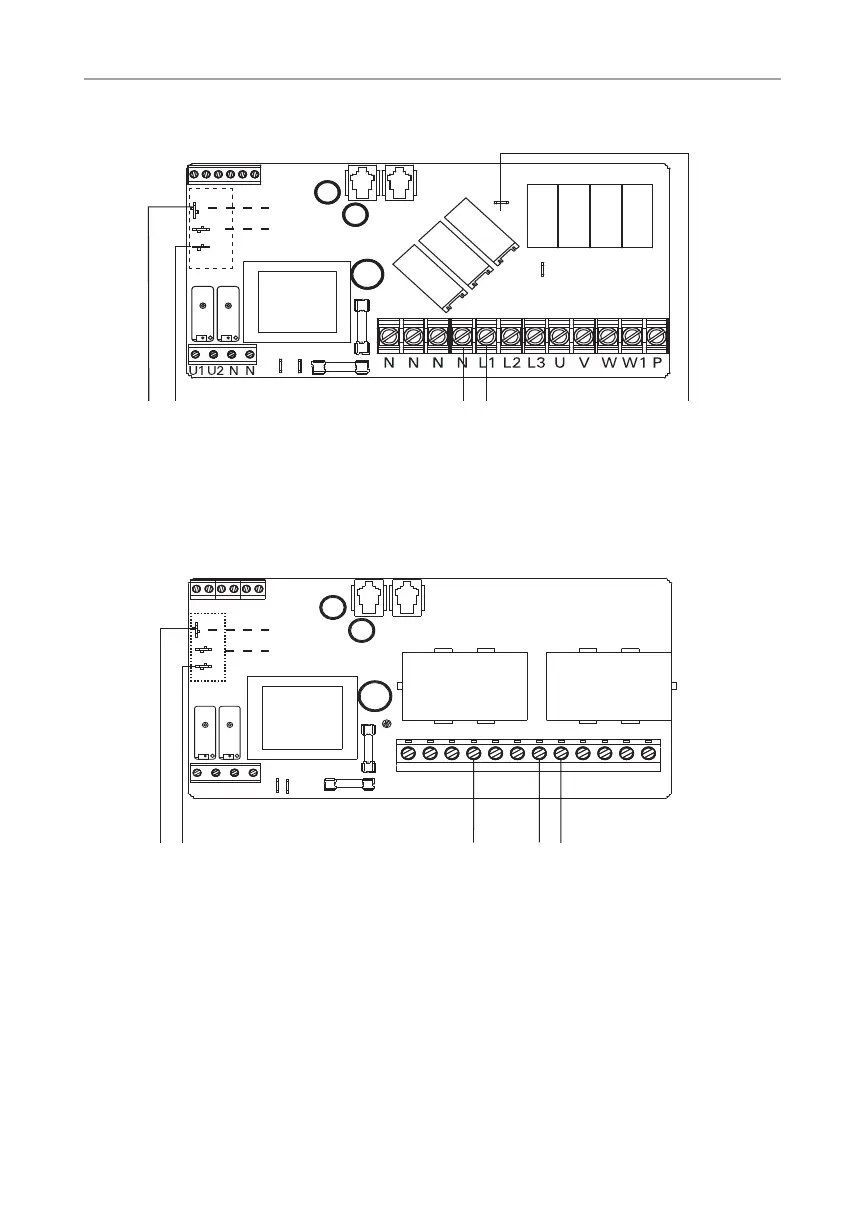

5.2. Connection to Xenio CX170, Xar CS170
5.1. Connection to Xenio CX110C, Xar CS110C
1
23
4
5
1234
5
6 Safety shutdown / Door sensor
● When connecting the safety shutdown / door sensor, observe the instruc-
tions for the respective device
● The DOOR function must be set to ON in the settings.
● The DOOR function must be set to ON in the settings.
x19
x23
XT2020
X15
X16
X14
6
NU1 U2 N
N NN N L1 L2 L3 K2 W
K1
V U
XT2001
X16
X14
X15
6
