Haskris R1600 User Manual

Section 2:
Installation
Copyright © 2011 Haskris Company 3 www.haskris.com
Version R1600-X-R407C-XXX Instruction Manual Rev00
2.1
2.12.1
2.1 Receiving
Receiving Receiving
Receiving Your Haskris System
Your Haskris SystemYour Haskris System
Your Haskris System
Upon delivery, visually inspect your Haskris system for any obvious damage. If
damage is found, and there is reason to believe the system was mishandled, note
the damage in detail on the delivery receipt. We recommend taking photographs
if possible. Contact the delivering carrier immediately to file a claim. All shipping
containers and packaging materials should be retained to help substantiate the
claim.
We also ask that you call Haskris if the system has been damaged in shipment.
We will assist in rectifying the situation.
2.2
2.22.2
2.2 Proper System Location
Proper System LocationProper System Location
Proper System Location
The Haskris Model R1600 chiller is designed for outdoor installation on a level
concrete pad or level perimeter roof curb. ROOF CURB MUST INCLUDE A
CENTER SUPPORT.

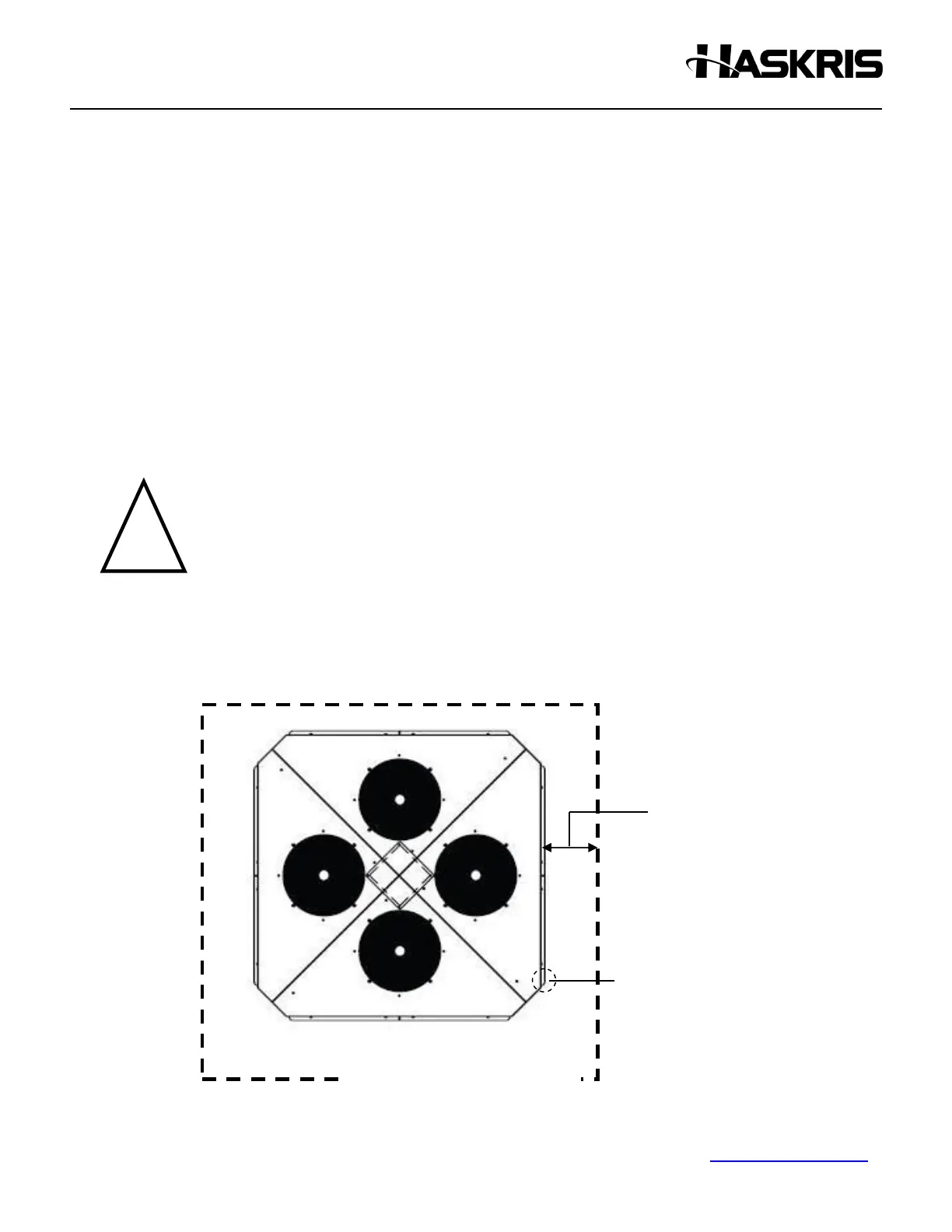

Position the R1600 chiller per the concrete pad drawing below (see Figure 2.1).
Haskris recommends a minimum of 36” of clearance on all sides to allow for
service accessibility and free air movement across the condenser.
Mounting Holes
0.63” Dia.
Qty (16)
Allow 36” of clearance
all around R1600 Chiller
on a level concrete pad.
!
!!
!
Figure 2.
Figure 2.Figure 2.
Figure 2.1 R1600 Clearance
1 R1600 Clearance1 R1600 Clearance
1 R1600 Clearance
