Haskris R1600 User Manual

Section 2:
Installation
Copyright © 2011 Haskris Company 6 www.haskris.com
Version R1600-X-R407C-XXX Instruction Manual Rev00
Bolted to Skid
(Typ.)

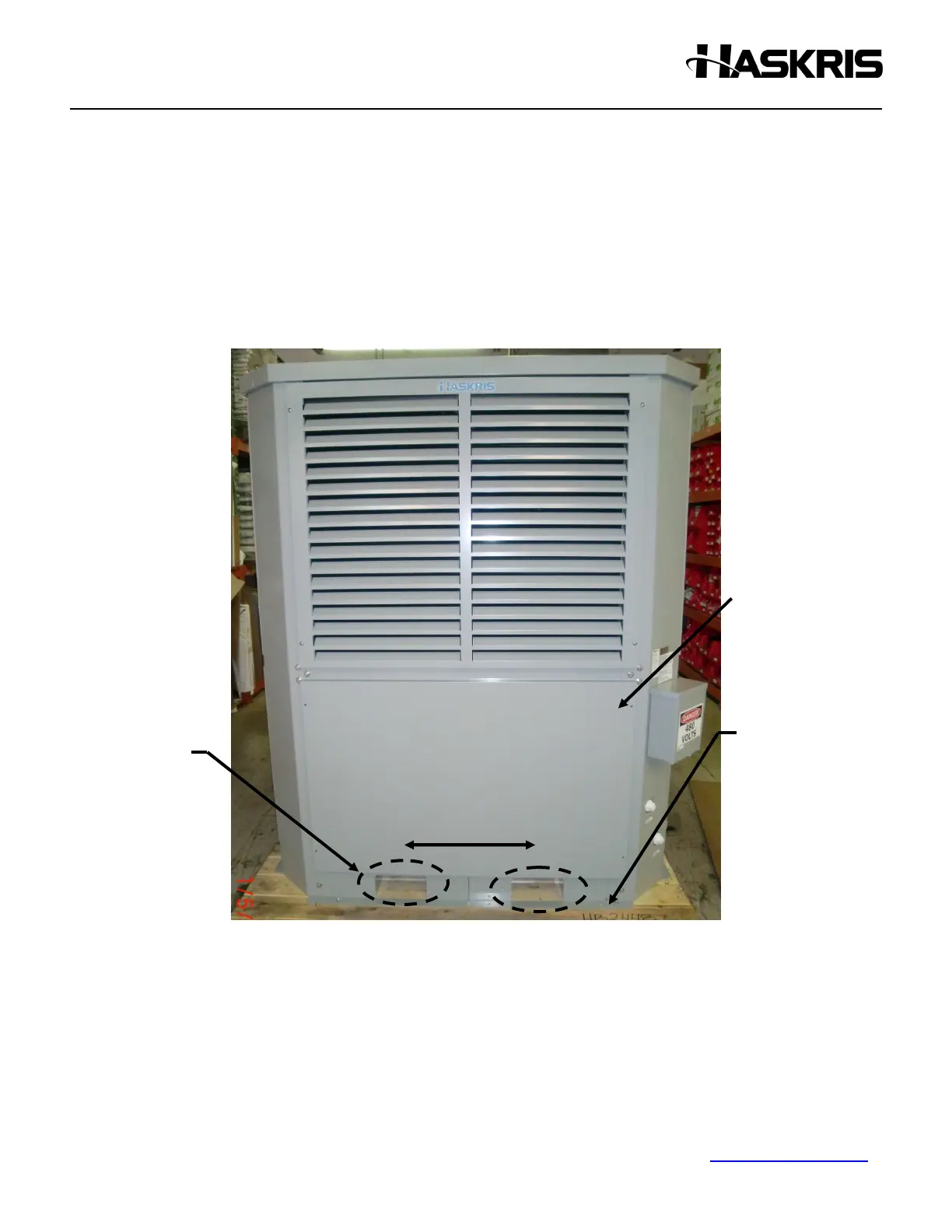

Figure 2.
Figure 2.Figure 2.
Figure 2.
4 R1600 on skid
4 R1600 on skid4 R1600 on skid
4 R1600 on skid
Remove this panel for
access to compressor A
and the panel on the
opposite side to access
compressor B
2.4
2.42.4
2.4 Unpacking and Handling
Unpacking and HandlingUnpacking and Handling
Unpacking and Handling
The Haskris Model R1600 chiller is shipped in a wooden crate and
bolted to a wooden skid as shown in Figure 2.4 below. Remove the
bolts which attach the chiller base to the skid.
Use the two fork openings (as shown in Figure 2.4 above) to remove the
chiller from the skid and transport the chiller to its proper location. Insert
the forks fully past the center of the base.
21” Center
21” Center21” Center
21” Center
Fork Opening
8”W x 4”H
(Typ.)
