Haskris R1600 - Maintenance Notes

Maintenance Notes
Copyright © 2011 Haskris Company 49 www.haskris.com
Version R1600-X-R407C-XXX Instruction Manual Rev00
VFD A and B
controllers are
located in the
Electrical Control
Panel pull-out
Compartment of the
R1600
Display
Display Display
Display R1600
R1600R1600
R1600 VFD Fault Sequence
VFD Fault SequenceVFD Fault Sequence
VFD Fault Sequence
1. Open the electrical panel slide-out to locate the VFD controllers.
2. Press the down arrow button until is flashing on the display.
3.
Press the “enter” key followed by the “esc” key. The display screen should read “U1-01”
with the
“U1” flashing.
4.
Press the up arrow key twice so that the display screen reads “U3-01”. Press the enter
key.
“01” should now be flashing.

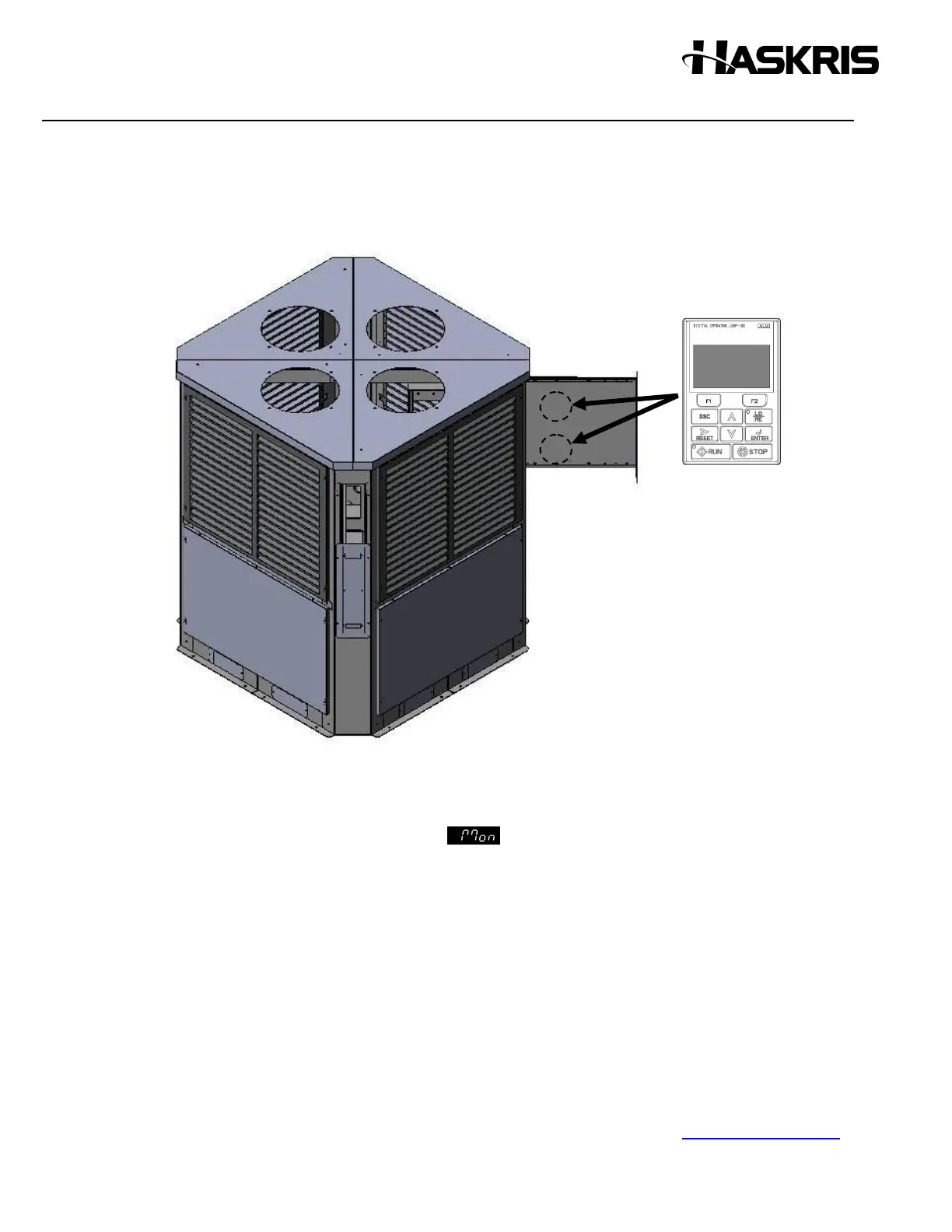

Figure M.1 VFD Location
Figure M.1 VFD Location Figure M.1 VFD Location
Figure M.1 VFD Location
