Page 17
BCS6000C-9

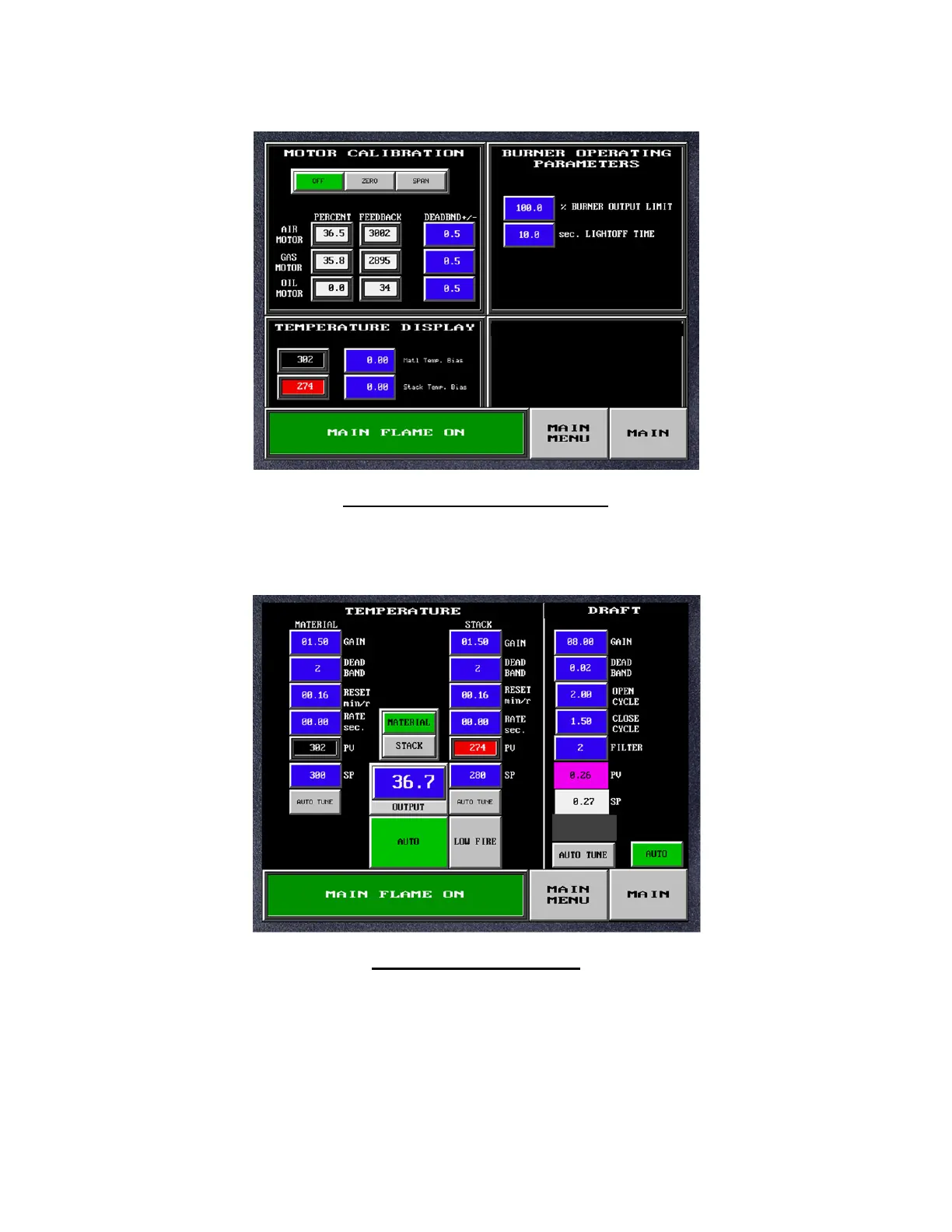

MOTOR CALIBRATION & SETUP
Reference Section E. Used to ZERO and SPAN the burner control motors and to enter motor
deadband settings. Provides numeric inputs for burner firing rate limits, gas pressure
correction, and temperature bias settings.
CONTROL LOOP TUNING
Reference Section E. Used to set PID control loop tuning constants for the Material and Stack
temperature control and Dryer Draft control. Also provides temperature setpoint inputs,
AUTO/MANUAL selection, and AUTO TUNE selection.
