Page 18
BCS6000C-9

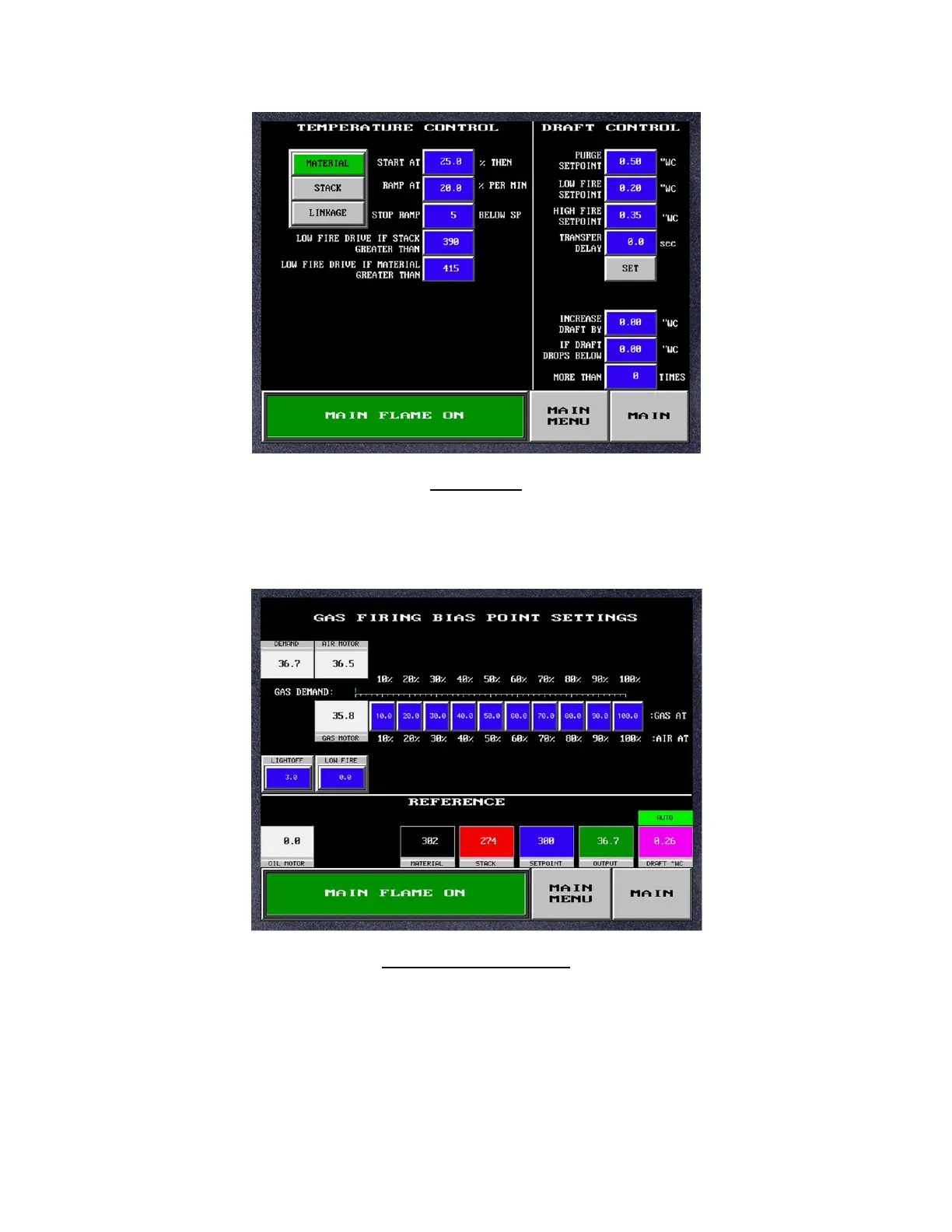

RUN MENU
Reference Section E. Used to set the burner startup percentage and ramp rate for automatic
temperature control. Also provides for low fire drive alarms and draft setpoint inputs, selection
of control mode and parameters for automatic draft increase control.
BIAS POINT SETTINGS
Reference Section F. Two separate screens (GAS and OIL/LP) are provided to setup the
electronic valve characterization for the air valve. It provides inputs for air valve position for
each of twelve fuel valve positions (Light off, Low Fire, 10, 20, 30, 40, 50, 75 and 100%). It also
displays pertinent data to aid in burner setup.
