Hawk Gladiator AS2100 User Manual

4
5
Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008
83mm (3.3”)
76.5 (3”)
61mm (2.4”)
8mm (0.3”)
106mm (4.2”)
106mm (4.2”)
10mm (0.4”)
151mm (5.9”)
145mm (5.7”)
38mm (1.5”)
160mm (6.3”)
192mm (7.6”)
166mm (6.5”)
142mm (5.6”)
10.5mm (0.4”)
3 x 20mm (0.7”), 1x16mm (0.6”)
Knock outs
166mm (6.5”)
192mm (7.6”)
160mm (6.3”)
Front Side Back
DIN Rail Mounting
(clips included)

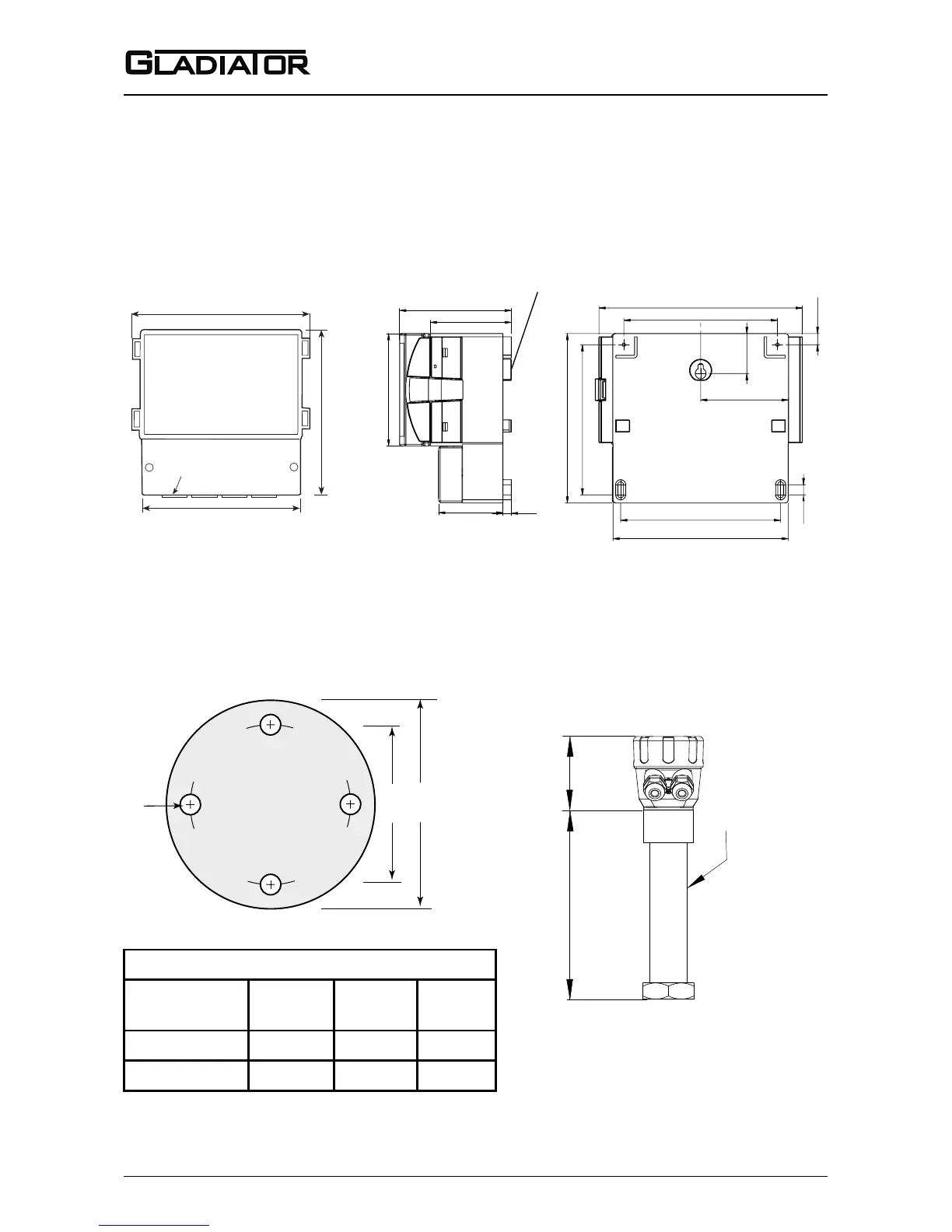

DIMENSIONS
REMOTE AMPLIFIER ENCLOSURE
X mm
temperature
extension
SS 316
X mm:
Max. 80ºC (176ºF) ~ no temperature extension required.
Max.150ºC (302ºF) ~ 150mm (5.9”)
Max. 250ºC (482ºF) ~ 250mm (9.8”)
For the 450ºC (842ºF) Probe, a different extension applies.
165mm (6.5”)
125mm (4.9”)
4x18mm (0.7”) holes
10mm (0.4”)
90mm (3.5”)
HIGH TEMPERATURE
EXTENSIONS (<250°C, <482°F)
Remote Probe or Smart Probe
OPTIONAL FLANGE
Low level
(side mounted)
Flange Dimensions - 50mm (2”)
ANSI (Class 150)
A
120.7 4.75”
B
152.4 6”
C
19.1 0.75”
DIN (PN40)
125 4.9” 165 6.5” 18 0.7”
JIS (10K)
120 4.7” 155 6.1” 19 0.75”
A B
C
