25

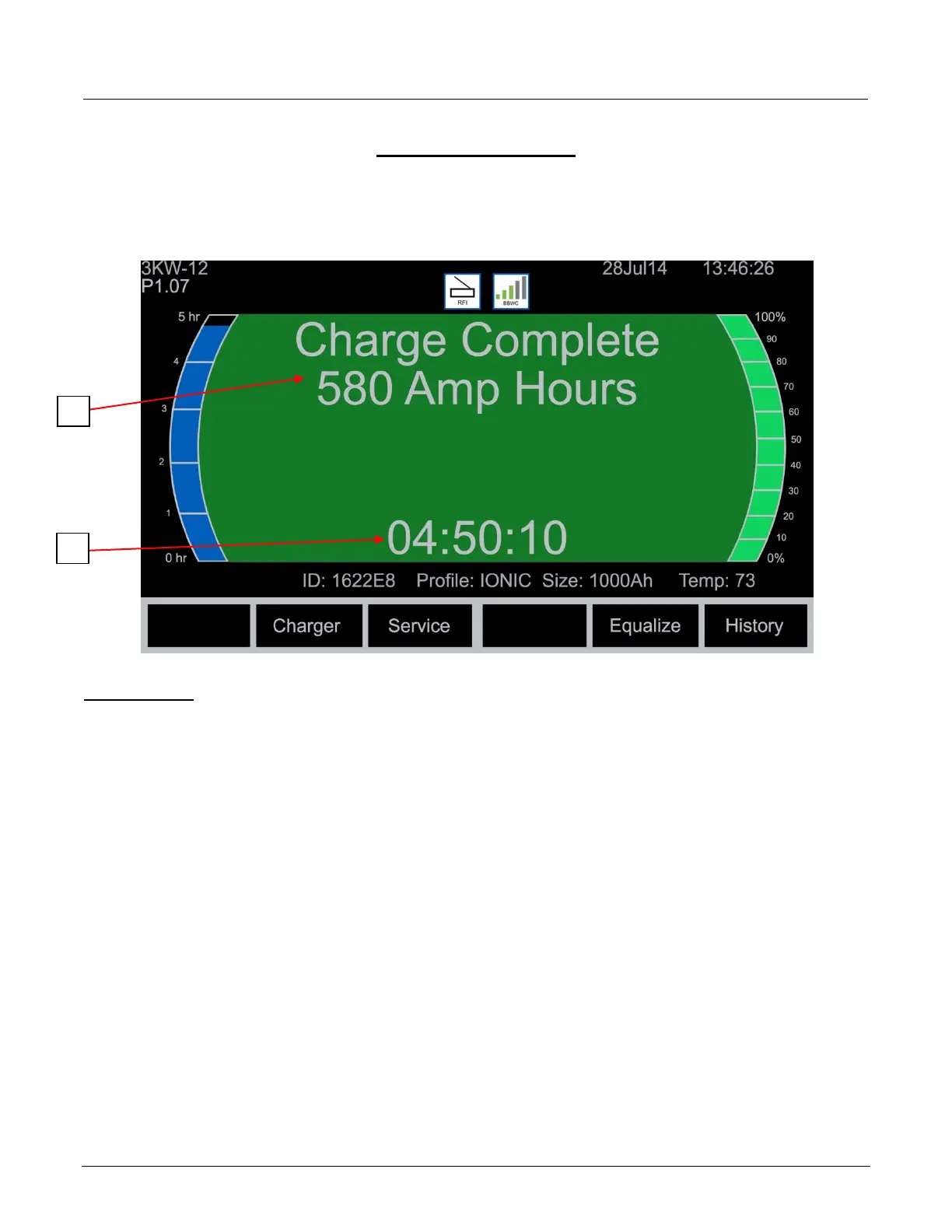

End of Charge Display
The display background turns green at the end of a normal charge cycle and shows “Charge
Complete” at the top, followed by number of Amperes-Hours returned to battery (1) and total
charge time (2):
Equalization
An Equalize charge can be added manually or automatically.
Manual Equalize:
At the end of a normal charge, or during a charge cycle, press the Equalize button. An equalize
charge will start after a normal charge cycle is complete. The start of an equalize charge is
indicated by the message Equalize Charge. During the equalize charge, the charger displays
the output current, and alternates between the battery voltage, volt per cell and remaining time
of the equalize charge. Once equalize charge is complete, the display background turns green
and the displays shows Charge Complete, indicating the battery is available for use. If the battery
remains plugged in and Refresh Charge has been enabled, refresh charges will occur to
maintain a full charge.
Automatic Equalize:
If an equalize charge has been programmed in charger Equalize Configuration, an equalize
charge will start automatically on the programmed day of the week after normal charge cycle is
complete.
Once equalize charge is complete, the display background turns green and the displays shows
Charge Complete, indicating the battery is available for use. If the battery remains plugged in
and Refresh Charge has been enabled, refresh charges will occur to maintain a full charge.
