Hawker LIFESPEED MOD3 - Control Panel

LIFESPEED MOD3
Owner’s Manual
AM-HLSM3-OM
Rev AB October 2019
13

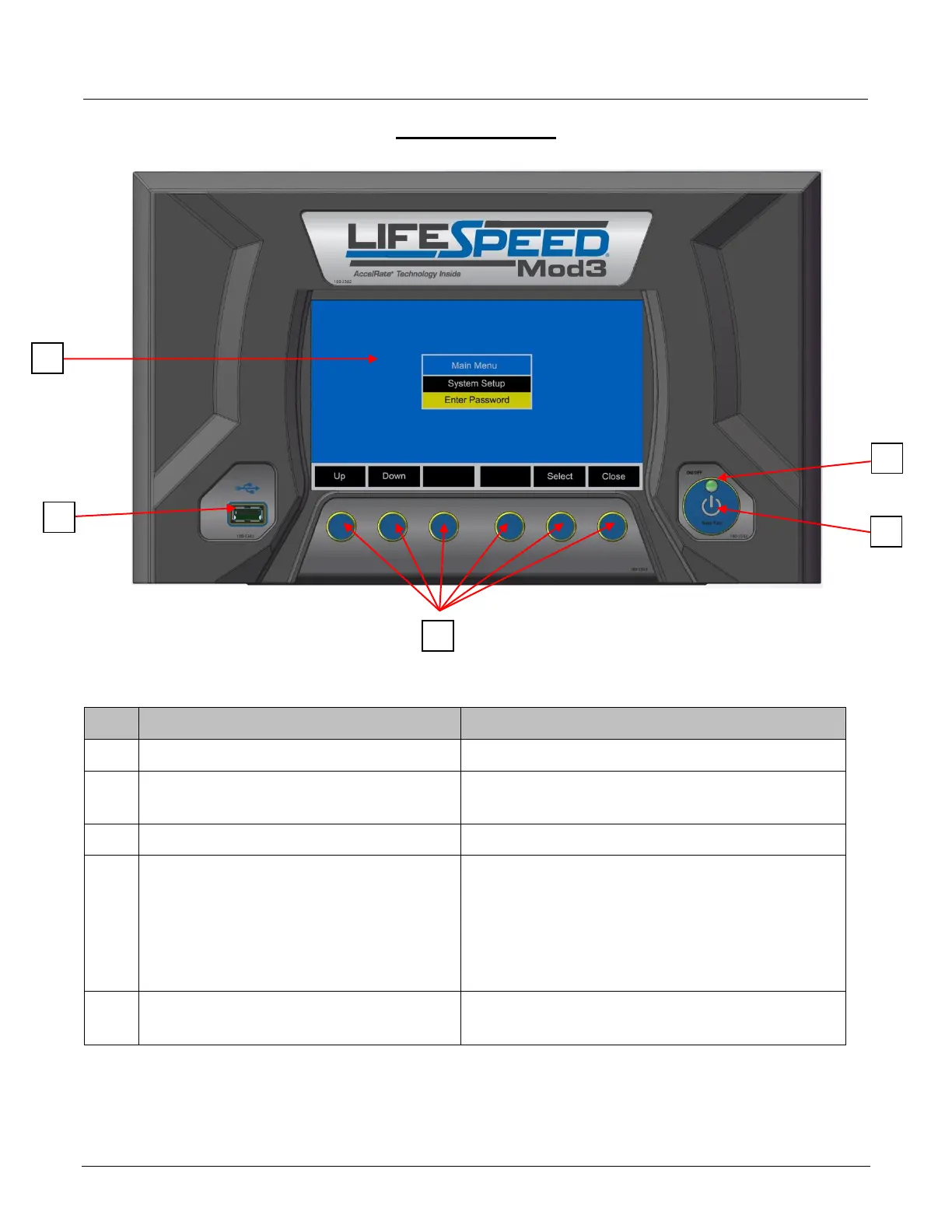

CONTROL PANEL
Ref
Function
Description
1.
Graphical TFT LCD Display
Displays charger operation info and Menus
2.
Navigation buttons
Each navigation button corresponds with the
rectangle located directly above it
3.
STOP and START button
Stop and restart battery charge
4.
LED indicator
Solid RED, fault indicator
Blinking RED, charge stopped
Solid YELLOW, charging
Solid GREEN, charger idle
Blinking GREEN, charge complete
5.
USB port
Logs charge data, updates firmware and
saves setup parameters
1
5
2
3
4
