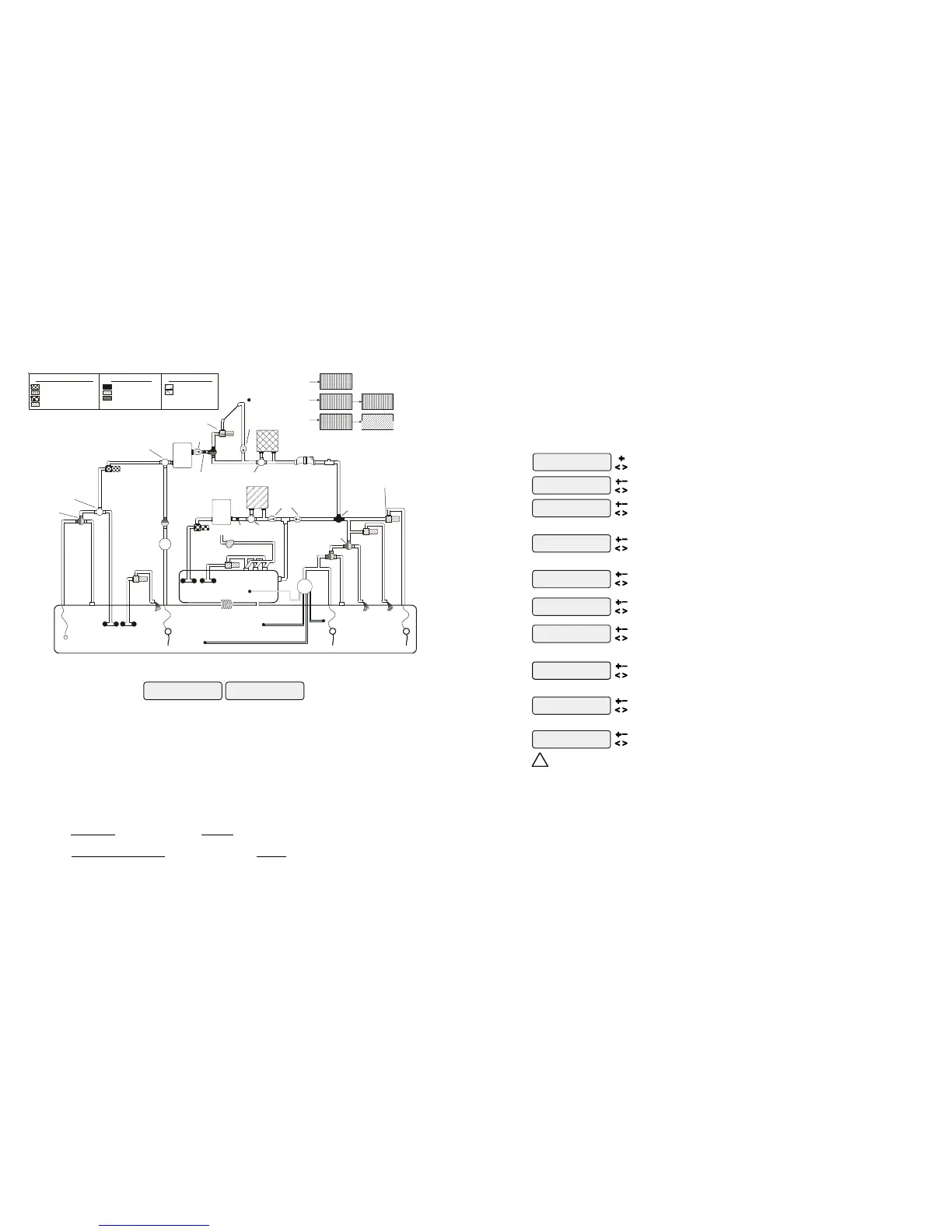

“Dual Equipment - Separate Heaters” for Pool/Spa configuration
These systems have 2 complete sets of equipment (filter pump, filter, heater)—1 set for the pool and the other set
for the spa. Refer to the diagram below:
Some important notes regarding the Pro Logic control of Dual Equipment Pool/Spa systems with separate heaters:
In the Pool/Spa Config., select:
Pool/Spa Setup
Pool and Spa-Dual
Heaters
Htr1=Spa,Htr2=Pool
1. When dual equipment is selected:
a. The “Filter” pump automatically is renamed “Pool Filter” and can not be changed. The pool filter
can be a one, two or variable pump.
b. The “Aux1” output is automatically renamed “Spa Filter”, its function is set to “Timeclock” and the
Interlock feature is forced to “Disabled”. None of these can be changed. The spa filter can be a
one, two or variable pump.
c. The Heater1 output should be connected to the spa heater—the heater will only turn on when the
spa filter pump is running.
d. The Heater2 output should be connected to the pool heater—the heater will only operate when
the pool filter is running. If the system does not have a pool heater, disable Heater2 in the configuration
menu and then the relay can be used to operate general purpose Valve4.
2. The water sensor should be installed on the pool loop prior to the heater and will display the pool temperature
whenever the “Pool Filter” pump is running.
3. The dual equipment spa sensor should be installed on the spa loop prior to the heater and will display the
spa temperature whenever the “Spa Filter” pump is running.
4. The Pro Logic can be programmed to accommodate spillover if desired. Note that spillover operation will
be automatically suspended whenever the spa filter pump is turned on.
9
34
lights relay during freeze--see the “Filter Pump Config.” menu to enable freeze protection for the main
circulation system. Freeze Protection is not available for low speed filter pump, dimmer, group, super
chlorinate or pH dispense functions.
Lights Pump Speed
This is the speed of the filter pump when the Lights output is on. The default selection is “Settings
Menu”. This is the speed of the pump that has been selected in the Settings Menu for normal filter
operation. If an alternate speed is desired when the Lights output is on, push “+” or “-” and select from
“Filter Lowest” to “Filter Highest” in 5% increments.
NOTE: The configuration parameters for all Aux outputs are the same as shown below for Aux1. PS-4: Aux1 and Aux2. PS-8:
Aux1 through Aux6. PS-16: Aux1 through Aux14. Also note that for the PS-16, Valves7, 8, 9 and 10 are turned On/Off with the
control function selected for Aux7, 8, 9, and 10, respectively.
Aux1 Pump Spd
Settings Menu
Select Settings Menu (default) or desired pump speed (Filter Lowest to Highest)
Move to previous/next configuration menu
if filter pump is set to variable speed
and the relay type is set to standard
Aux1 Config.
+ to view/change
Aux1 Function
Manual On/Off
Aux1 Group
Filter: Unaffected
Aux1 Group
Timer: None(Manual)
Aux1 Name
Cleaner
Aux1 Relay
Standard
Push to access Aux options
Options available depend on the function that is selected
Rotates between Manual On/Off (default),Countdown Timer and Timeclock
Rotates between all available names
Toggle between Standard (default), Dimmer, ColorLogic and VSP
Move to previous/next configuration menu
Move to previous/next menu item or next configuration menu
Move to next configuration menu item
Move to next menu item
Move to next menu item or previous/next configuration menu
Aux1 Interlock
Disable
Aux1 Freeze
Disable
Toggle between Enabled and Disabled (default) Aux1 Interlock
Toggle between Enabled and Disabled Aux1 Freeze(default)
Move to next menu item
Move to previous/next configuration menu
for all functions except solar, dimmer relay,super chlorinate
for all functions except solar, dimmer relay,super chlorinate
low speed, group and pH dispense
low speed, group and pH dispense
for all functions except dimmer relay, super chlorinate
low speed, group and ph dispense
for group function only
for group function only
for manual on/off, countdown
timer and timeclock functions
Move to next menu item
Rotates between Manual On/Off (default), Countdown Timer, Low Speed- Filter,
Timeclock, Solar, Low Speed-Spa Filter, Group, Super Chlorinate, and pH Dispense
Aux1 Ext Input
Disabled
Toggle between Enabled and Disabled (default)
Move to previous/next configuration menu
!
WARNING: Do not use the Pro Logic to control an automatic pool cover. Swimmers
may become entrapped underneath the cover.
NOTE: If “Pool and Spa-Dual” is selected, Aux1 is dedicated to use as the spa filter. Its Name is set to Spa Filter, the Function
is set to Timeclock and Interlock is set to Disabled. These can’t be changed.
Aux1 Name
The Pro Logic allows you to assign any one of a number of names (e.g. “Cleaner Pump, Waterfall,
Gazebo Light, etc.) to each of the aux outputs control function. This will make the Pro Logic much
more user friendly to the homeowner when they want to turn various aux equipment on or off or
program the timeclocks. A sheet of small name labels is included with the Pro Logic main unit and each
remote display/keypad so that the “Aux” pushbutton can be labeled the same as the name that you
have assigned. At this time it is also a good idea to make sure that the relay in the control box is also
labeled (hand written) with the same name as a help to technicians who may service this system at a
later date.
FILTER
HEATER
HEATER
BYPASS
VALV E
(manual)
HEATER
BYPASS
VALV E
(manual)
POOL SWEEP
BOOST PUMP
WATER
FEATURE
PUMP
POOL/SPA
SPILLOVER
VALV E
WAT ER
FEATURE
VALV E
SPA
SPA JET
PUMP
SPA
BLOWER
POOL VACUUM
VALV E
MANUAL
VALV E
ENERGY
FILTER
TWO-WAY
VALV E
SKIM
POP-UP
SPILLOVER
POP-UP
OVERFLOW
POP-UP
RETURN
JET
IN-FLOOR
CLEANER
VALV E
WAT ER
FEATURE
PUMP
WAT ER
FEATURE
POP-UP
MAIN
DRAIN
ENERGY
SAVER
PRESSURE
CLEANER
NON-BOOST
PRESSURE
CLEANER
PRESSURE
CLEANER
SUCTION
CLEANER
POOL
High Voltage Relays Valve Outputs
Heater Outputs
Pool Filter Pump
Lights
Spa Filter Pump (Aux 1)
Aux 2 - Aux 6
Pool/Spa Spillover
Val v e 3
Val v e 4
TRANSFORMER
HIGH VOLTAGE
LIGHTS
LO W VOLTA GE
LIGHTS
FIBER OPTIC
LIGHT SOURCE
COLOR WHEEL
ISOLATED
WATER
FEATURE
PUMP
POOL
TEMPERATURE
SENSOR
SPA
TEMPERATURE
SENSOR
HEATER
CELL
FLOW
SWITCH
MANUAL
VAL VE
POOL FILTER
PUMP
SPA FILTER
PUMP
CHECK
V
ALVE
(prevents d raining
of raised spas)
(adjust cams as necessary
for proper spill over)
Heater 1 (Spa)
Heater 2 (Pool)
SOLAR BOOST
PUMP
SOLAR
VALV E
CHECK
VALV E
SOLAR
TEMPERATURE
SENSOR
CHECK
V
ALVE
FILTER
