14
U2A
HBM A1261−2.2 en/de/fr
6.2 Mounting accessories

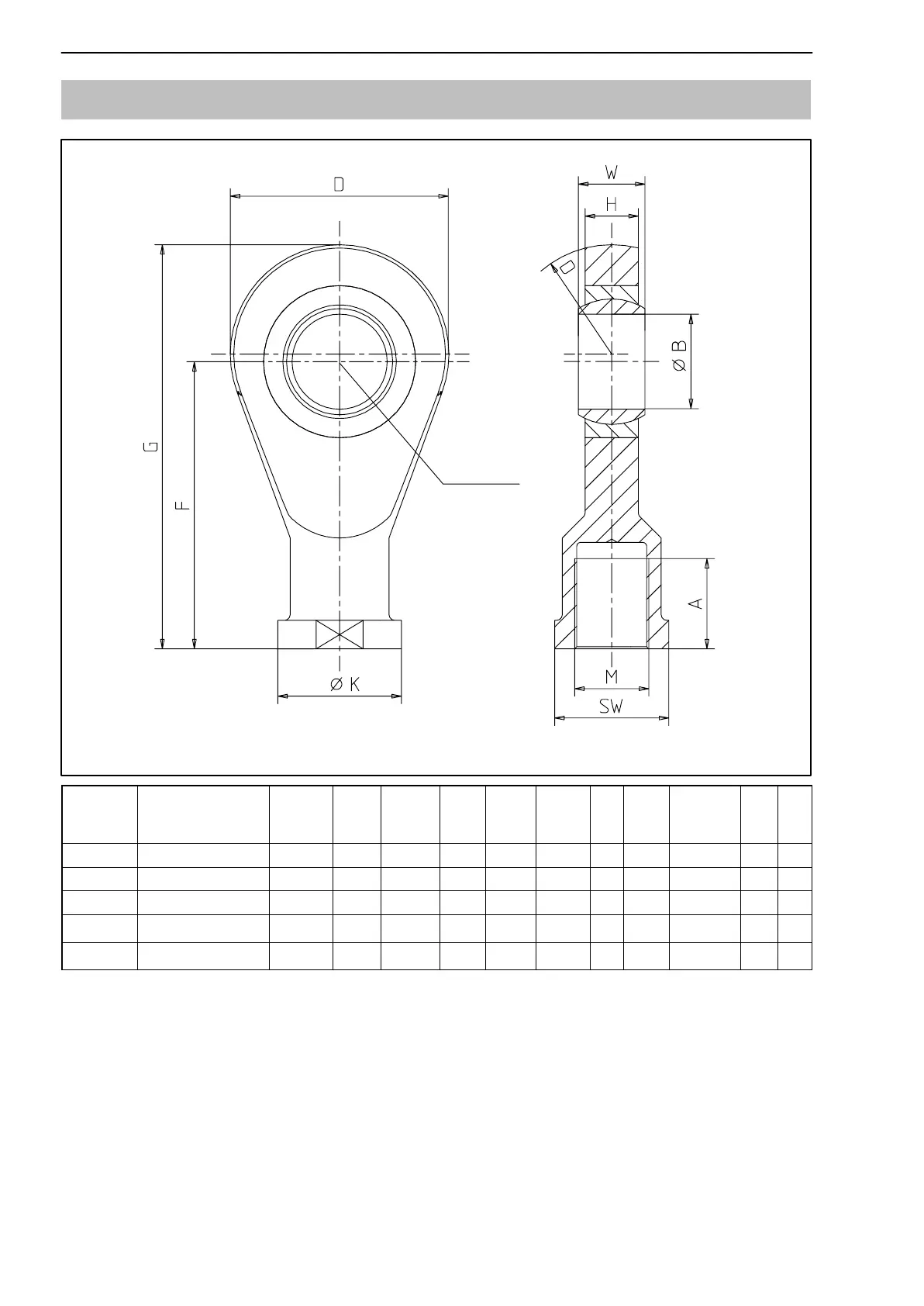

Knuckle eye above ZGOW
Material: tempering steel, galvanized; rolled steel and PTFE/bronze fabric foil
Center of
bearing
Max.
capacity
in t
Knuckle eye
ZGOW
Weight
[kg]
A ∅B D F G H ∅K M a.f. W
0.05...1 U2A/1T/ZGOW 0.2 22 12
H7
32 50 66 12 22 M12 19 16
2 U2A/2T/ZGOW 0.5 33 20
H7
50 77 102 18 34 M20x1.5 32 25
5 U2A/5T/ZGOW 0.8 42 25
H7
60 94 124 22 42 M24x2 36 31
10 U2A/10T/ZGOW 3.2 50
50
+0.002
-0.014
115 151 212.5 28 65 M39x2 60 35
20 U2A/20T/ZGOW 4.8 60
60
+0.003
-0.018
126 167 235 36 82 M48x2 70 44
