HBM U2A - Page 17

17
U2A
HBMA1261−2.2 en/de/fr

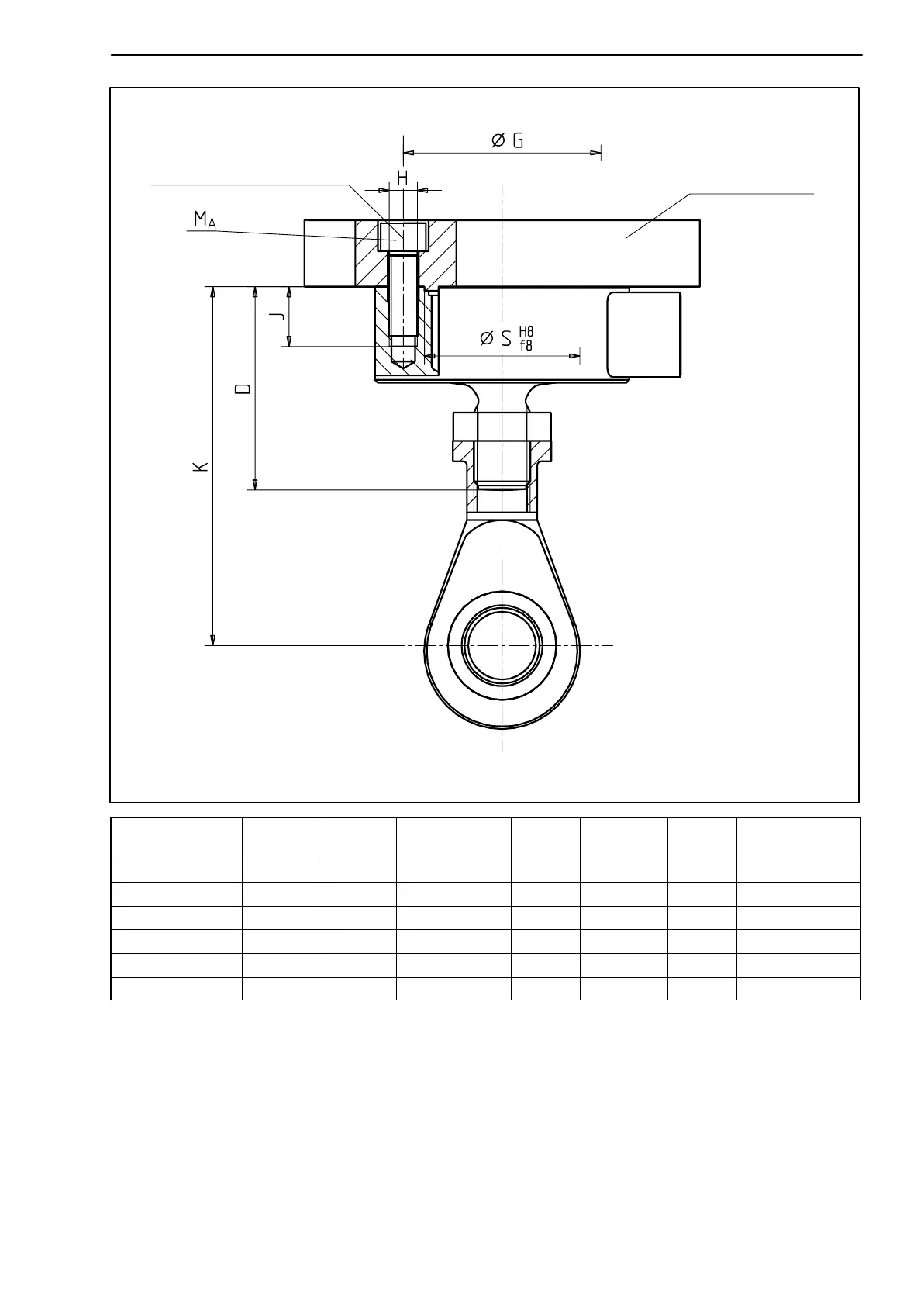

U2A, with ZGOW, without adaptor
Base plate
(from customer)
drawing turned by 45°
resp. 22,5°
* Recommended dimension, taking minimum thread reach into consideration
*
Max. capacity
in t
D ∅G H J K ∅S M
A
1)
[NVm]
0.05...0.5 47 42 4xM5 13 84...86.4 34 5
1 47 42 4xM5 13 86.4 34 5
2 72 70 4xM10 20.5 131.6 55 35
5 86 78 4xM12 19 158.2 61 60
10 122 105 8xM12 16 244 79 60
20 142 125 8xM16 26 270.2 97 150
1
)Recommended values for a dry thread, using a torque wrench
