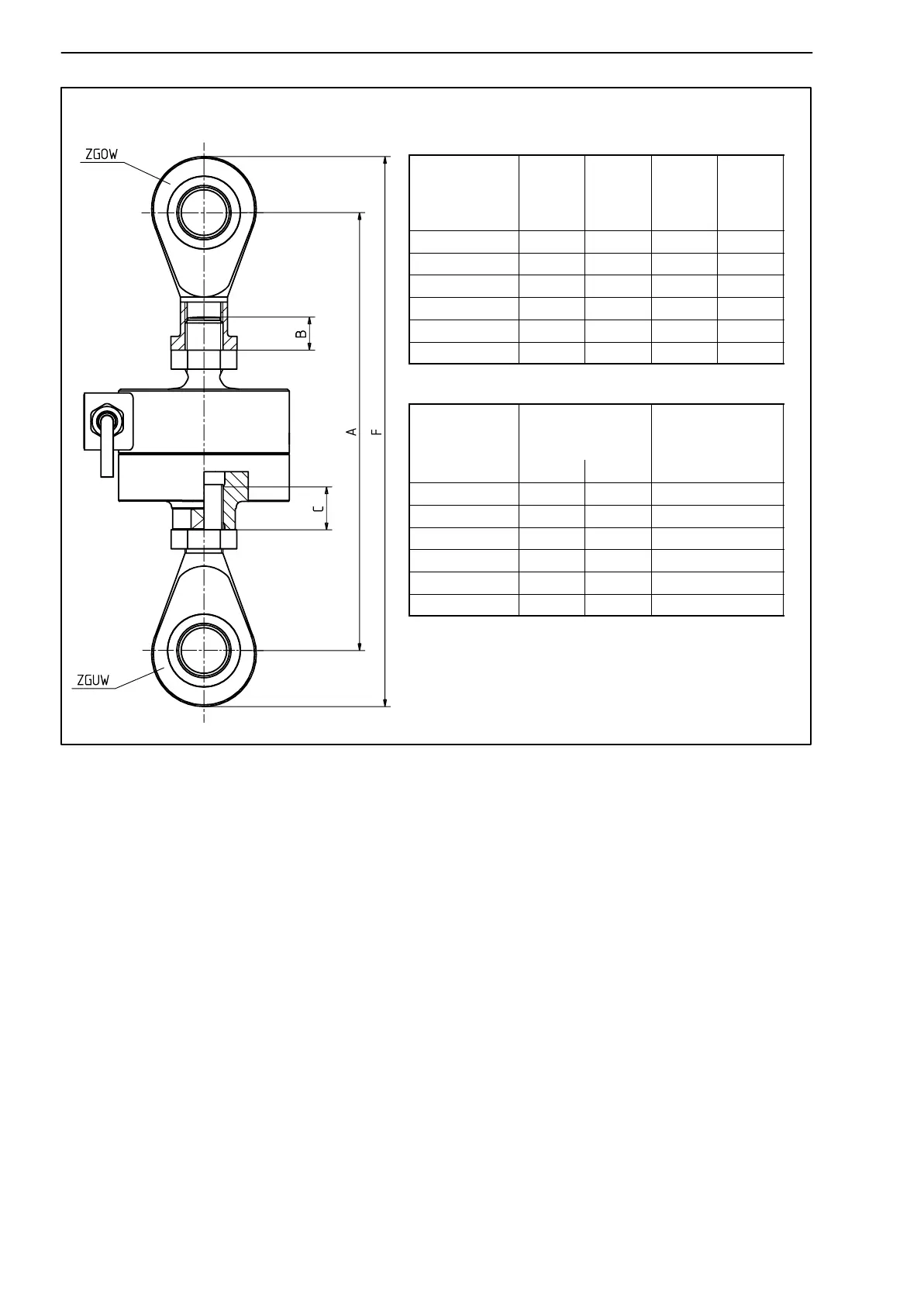

Load cell U2A with mounted knuckle eyes ZGOW, ZGUW
16
U2A
HBM A1261−2.2 en/de/fr
Max.
capacity in
[t]
A
min
A
max
F
min
F
max
0.05...0.5 139 156 171 188
1 141 156 173 188
2 212 234 262 284
5 260 288 320 348
10 418 436 541 559
20 466 489 602 625
Max.
capacity in
[t]
Min. depth for
screwing
Tightening
torque M
A
[NVm]
B C
0.05...0.5 9.6 9.6 60
*)
1 9.6 9.6 60
2 16 16 300
5 19.2 19.2 500
10 27 31.2 2500
20 36.6 38.4 4500
*)
Do not exceed this value and handle the load cell with
care during fastening to avoid damage to the thin
measuring diaphragm. Hold the lock nut in place.
