securely against fixture base.
3. Install one medium base light bulb (60 Watt maximum, tungsten incandescent).

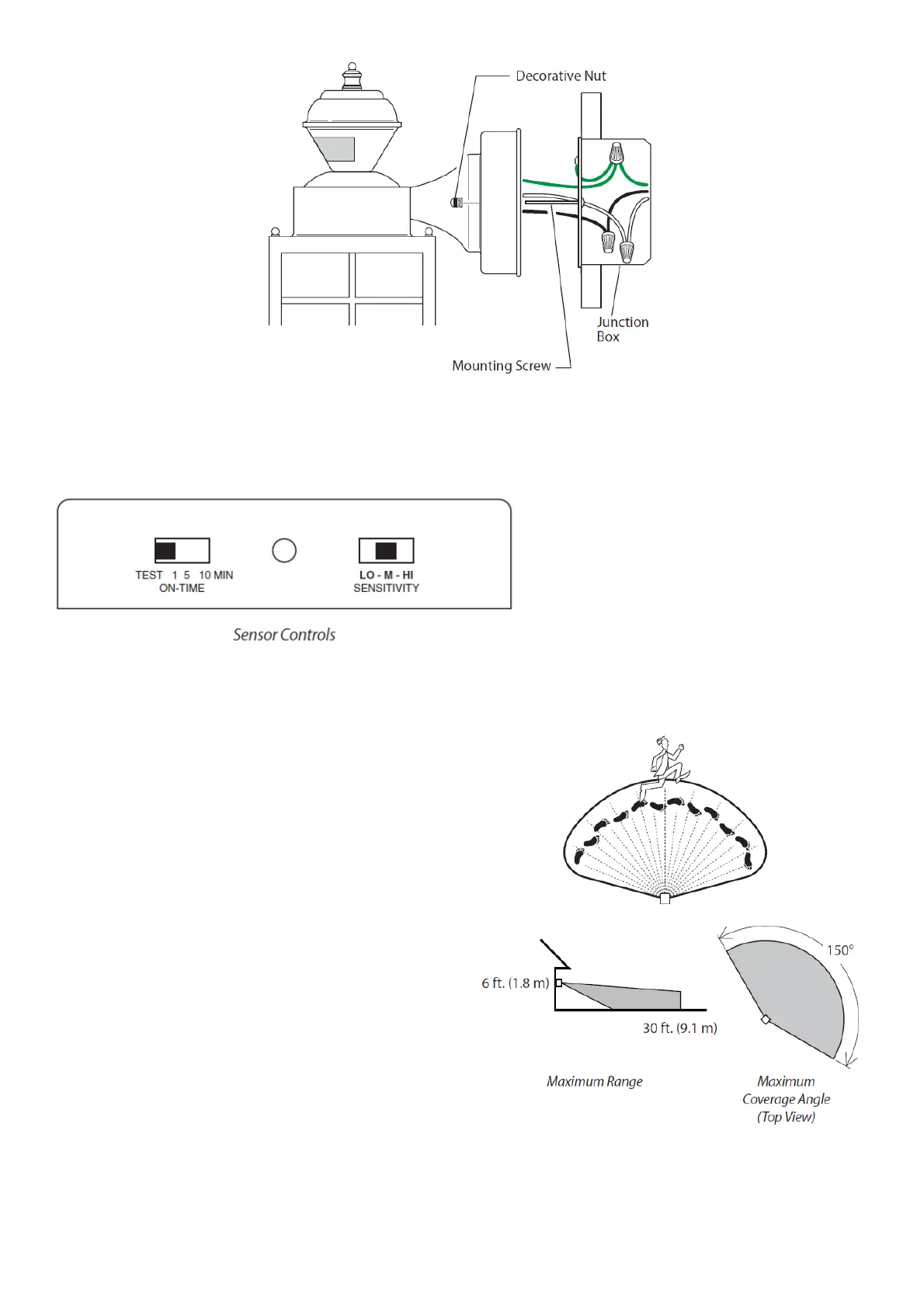

TESTING AND ADJUSTMENTS Initial Setup
The TEST mode overrides the photocell (daylight shutoff feature) and allows the light fixture to be tested day or night when the ON-
TIME switch is in the TEST position. The light will stay on for 5 seconds after all motion has stopped.
1. Set the ON-TIME control to TEST.
2. Turn on the circuit breaker or fuse and the light switch.
3. Allow the sensor to completely warm up (90 seconds) before beginning the setup process.
4. Perform a walk test. Walk in an arc across the front of the sensor.
