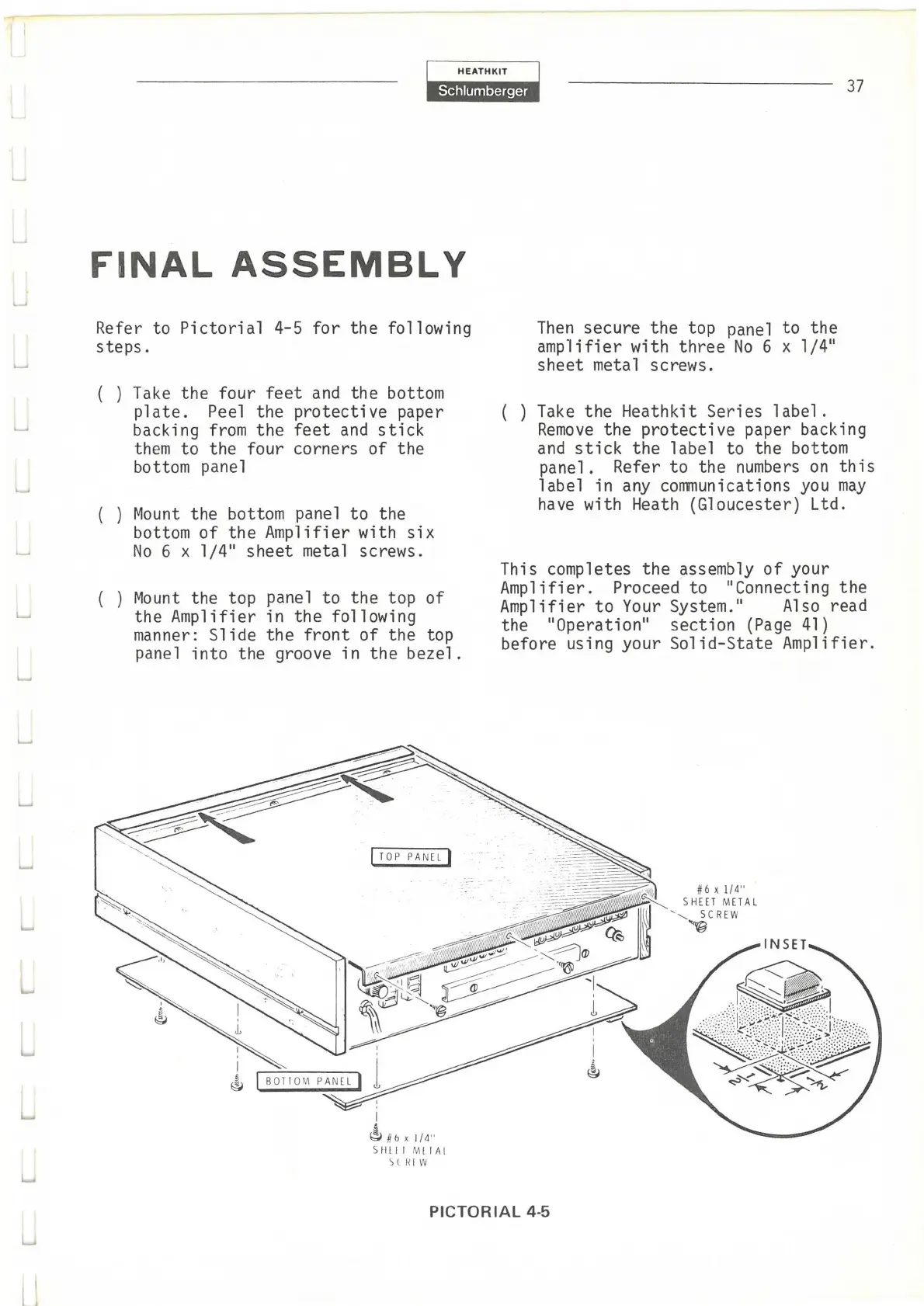

F!NAL ASSEMBLY
Refer to Pictorial 4-5 for the following
steps.
( ) Take the four feet and the bottom
plate. Peel the protective paper
backing from the feet and stick
them to the four corners of the
bottom panel
( ) Mount the bottom panel to the
bottom of the Amplifier with six
No 6 x l/4" sheet metal screws.
( ) Mount the top panel to the top of
the Amplifier in the following
manner: Slide the front of the top
panel into the groove in the bezel.
BOTIOM P
I TOP PANEL I
I
I
J,; #bx 1 /4 "
S l-ll I I Ml I A I
~ l Iii W
Then secure the top panel to the
amplifier with three No 6 x l/4"
sheet metal screws.
( ) Take the Heathkit Series label.
Remove the protective paper backing
and stick the label to the bottom
panel. Refer to the numbers on this
label in any communications you may
have with Heath (Gloucester) Ltd.
This completes the assembly of your
Amplifier. Proceed to "Connecting the
Amplifier to Your System_.' Also read
the "Operation" section (Page 41)
before using your Solid-State Amplifier.
# 6 X 1/4"
SHEET METAL
', SC REW
~
PICTORIAL 4-5
