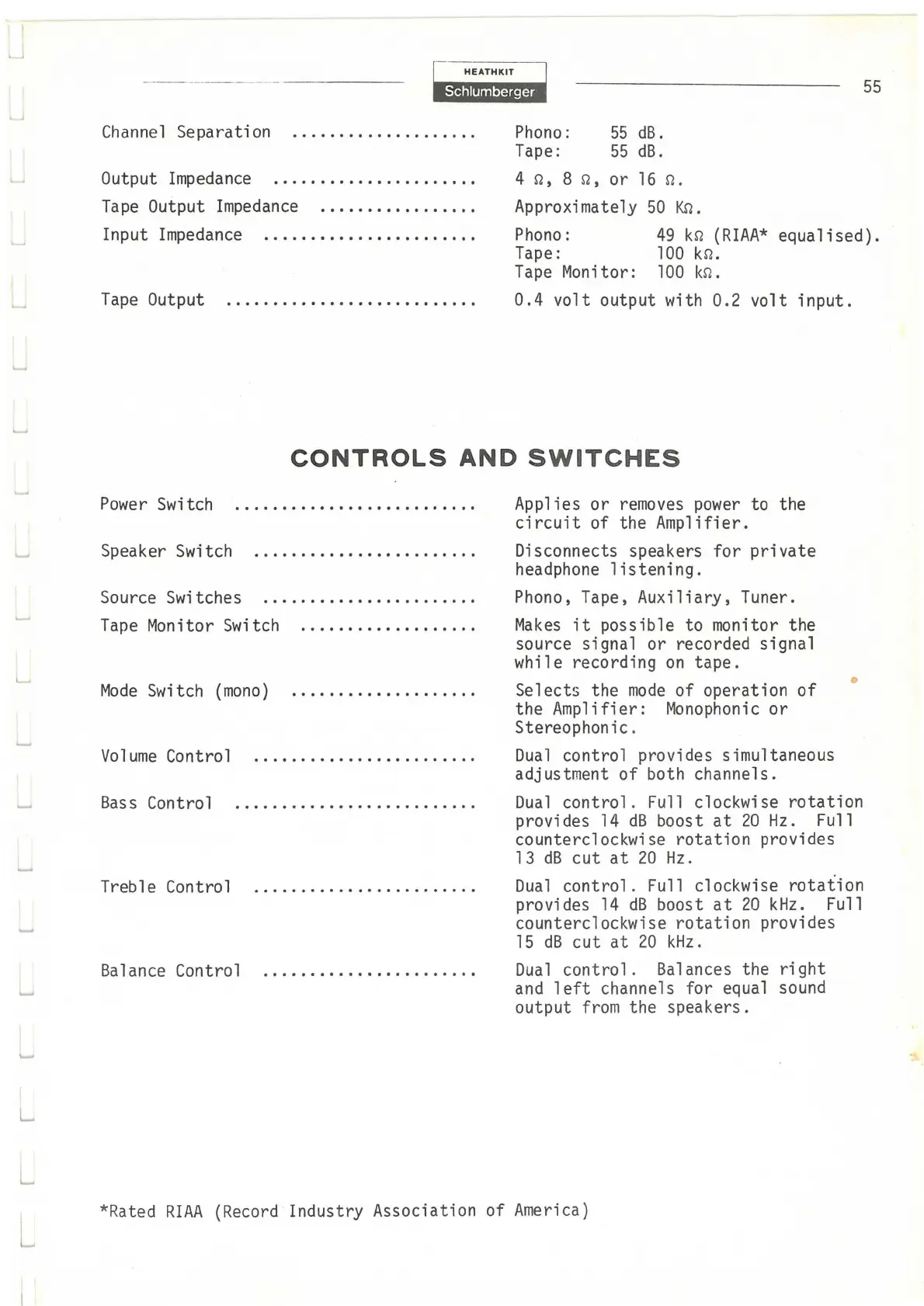

Channel Separation
Output Impedance
~ HEATHKIT ~
IG®iHM-M
Phono:
Tape:
55 dB.
55 dB.
4 n, 8 n, or 16 n.
Approximately 50 Kn.
55
Tape Output Impedance
Input Impedance
Phono: 49 kn (RIAA* equalised) .
Tape Output
Power Switch
Speaker Switch
Source Switches
Tape Monitor Switch
Mode Switch (mono)
Volume Control
Bass Contra l
Treble Contra l
Balance Control
Tape: 100 kn.
Tape Monitor: 100 kn.
0.4 volt output with 0.2 volt input.
CONTROLS AND SWITCHES
Applies or removes power to the
circuit of the Amplifier.
Disconnects speakers for private
headphone listening.
Phono, Tape, Auxiliary, Tuner.
Makes it possible to monitor the
source signal or recorded signal
while recording on tape.
Selects the mode of operation of
the Amplifier: Monophonic or
Stereophonic .
Dual control provides simultaneous
adjustment of both channels.
•
Dual control. Full clockwise rotation
provides 14 dB boost at 20 Hz. Full
counterclockwise rotation provides
13 dB cut at 20 Hz.
Dual control . Full clockwise rotation
provides 14 dB boost at 20 kHz. Full
counterclockwise rotation provides
15 dB cut at 20 kHz.
Dual control . Balances the right
and left channels for equal sound
output from the speakers.
* Rated RIAA (Record Industry Association of America)
