~ HEATHKIT ~
@Qmijj-j§i-i§

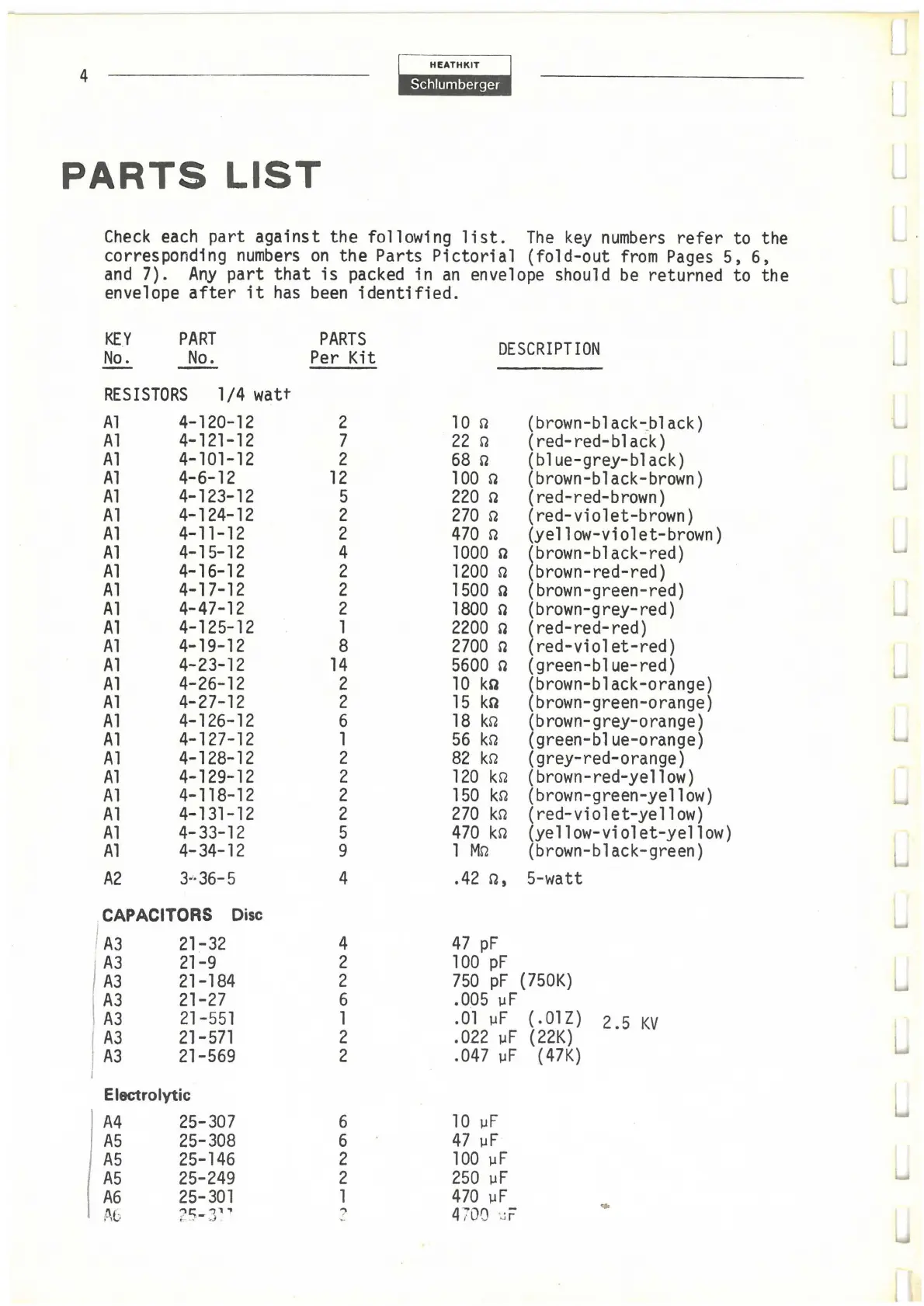

PARTS
LI ST
Check each part against the following list.
The key numbers refer to the
corresponding numbers on the Parts Pictorial (fold-out from Pages 5, 6,
and 7).
Any part that is packed in an envelope should be returned to the
envelope after it has been identified.
KEY
PART
PARTS
DESCRIPTION
No. No.
Per Kit
RESISTORS 1/4 watt
Al 4-120-12 2 10 o
(brown-black~black)
Al 4-121-12 7 22 n
( red-red-b 1 ack)
Al 4-101-12 2
68 n (blue-grey-black)
Al 4-6-12 12
100 n (brown-black-brown)
Al 4-123-12 5 220 n
(red-red-brown)
Al 4-124-12
2
270 n
(red-violet-brown)
Al
4-11-12 2
470 n
(yellow-violet-brown)
Al 4-15-12 4 1000 o
~brown-black-red)
Al
4-16-12
2
1200 n brown-red-red)
Al 4-17-12 2
1500 o (brown-green-red)
Al 4-47-12
2
1800 n (brown-grey-red)
Al
4-125-12 1 2200 o
(red-red-red)
Al 4-19-12 8 2700 n
(red-violet-red)
Al 4-23-12 14 5600 o
(green-blue-red)
w
Al
4-26-12 2 10 kn
(brown-black-orange)
Al 4-27-12 2 15 kn
(brown-green-orange)
Al 4-126-12 6
18 kn
{brown-grey-orange)
Al
4-127-12 1 56 kn
(green-blue-orange)
Al 4-128-12
2 82 kn
(grey-red-orange)
Al 4-129-12
2 120 kn
(brown-red-yellow)
Al 4-118-12
2 150 kn {brown-green-yellow)
Al 4-131-12
2 270 kn
(red-violet-yellow)
Al
4-33-12 5
470 kn (yellow-violet-yellow)
Al 4-34-12 9
1 Mn
{brown-black-green)
A2
3 ·· 36-5
4 .42 n, 5-watt
CAPACITORS
Disc
w
/ A3
21 .-32
4
47 pF
A3
21-9
2
100 pF
A3
21-184
2
750 pF ( 750K)
bi
A3
21-27 6
. 005 µ F
A3
21-551 1
.01 µF
(. 01 Z)
2 .5 KV
I
A3
21-571 2
.022 µF
(22K)
u
A3 21-569
2
. 047 µF
( 47K)
Electrolytic
A4 25-307
6
10 µF
AS 25-308 6
47 µF
AS 25-146
2
100 µF
AS 25-249
2
250 µF
A6 25-301
1
470 µF
'.' 'i- ? ' 1
'?
4 7 00 ~:r
..
i\b le ·• :, )
-
