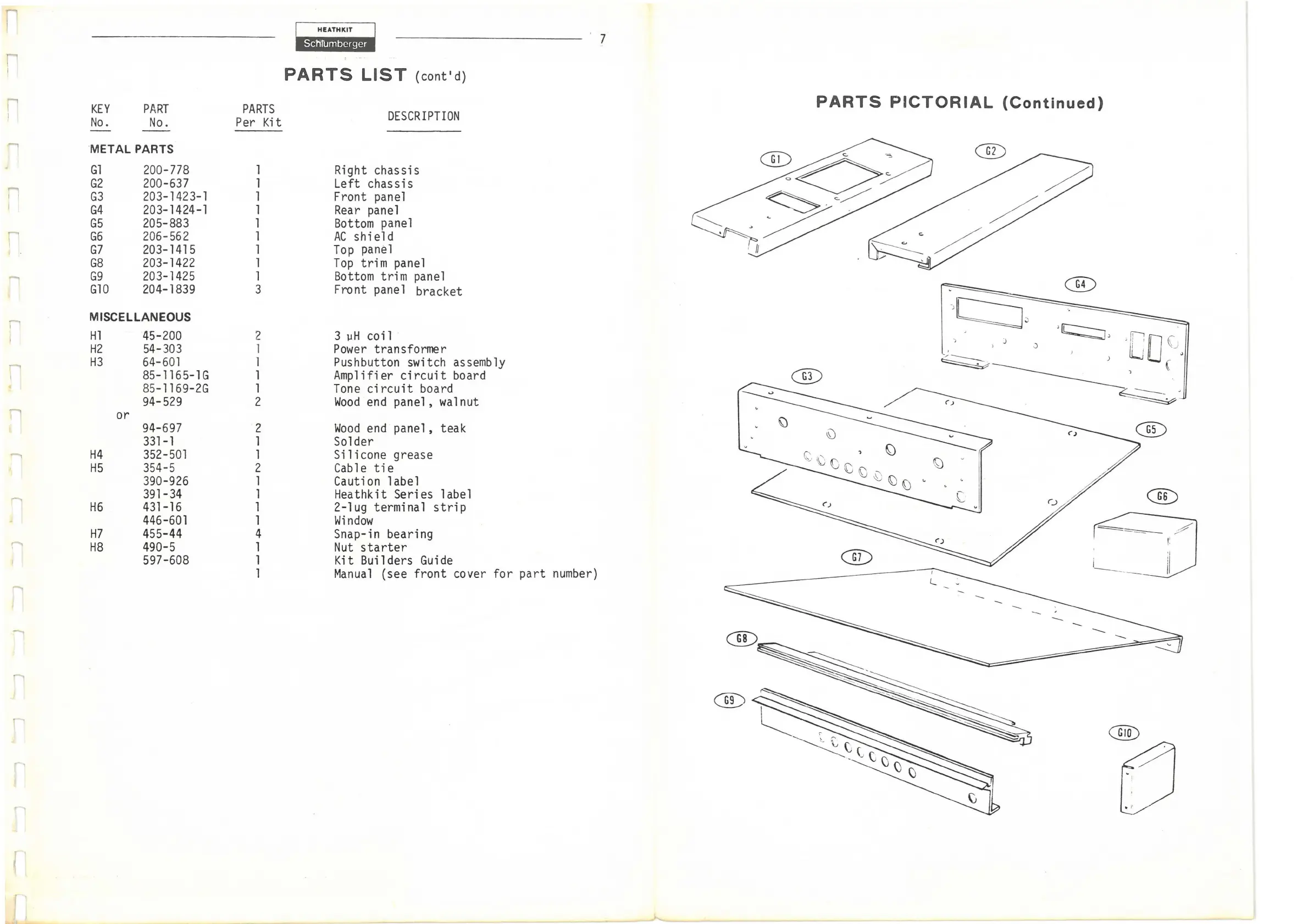

PARTS LIST {cont'd)
ri
KEY PART
PARTS
I
No.
No.
Per Kit
DESCRIPTION
PARTS PICTORIAL {Continued)
"'7
METAL PARTS
Gl
200-778
l
Right chassis
n
G2
200-637 l
Left chassis
G3 203-1423-1 l Front panel
I
G4 203-1424-1 l Rear panel
G5
205-883
l
Bottom panel
G6 206-562 l AC shield
G7 203-1415 l
Top panel
G8
203-1422
l Top trim panel
....,
G9 203-1425 l Bottom trim panel
GlO
204-1839 3 Front panel
bracket
;-,
MISCELLANEOUS
Hl 45-200 2
3 µH coil ·
H2 54-303
1 Power transformer
"."""",
H3 64-601 1
Pushbutton switch assembly
85-1165-1 G
l
Amplifier circuit board
85- ll 69-2G l
Tone circuit board
94-529 2 Wood end panel, walnut
or
94-697
2 Wood end panel, teak
331-1 l
Solder
H4
352-501 l Silicone grease
H5 354-5 2
Cable tie
390-926 l Caution label
391-34
l
Heathkit Series label
H6 431-16
l 2-lug terminal strip
446-601
1
Window
H7 455-44 4 Snap-in bearing
H8
490-5
l
Nut starter
597-608 1 Kit Builders Guide
i
l Manual
(see front cover for part number)
- --
---
