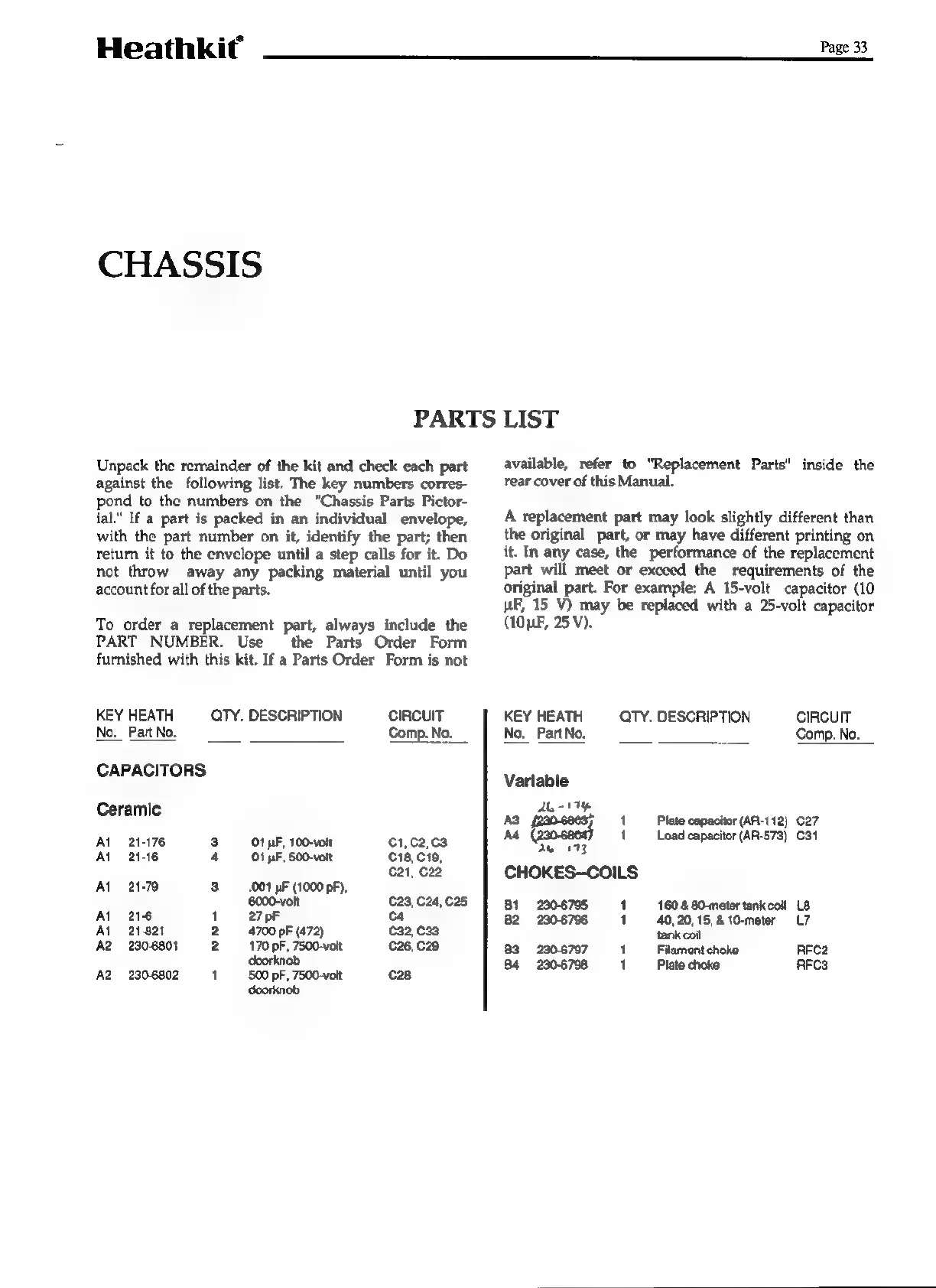

CHASSIS
Page 33
PARTS LIST
Unpack the remainder of the kit and check each part
against the following list. The key numbers corres-
pond to the numbers on the "Chassis Parts Pictor-
ial." If a part is packed in an individual envelope,
with the part number on it, identify the part; then
return it to the envelope until a step calls for it. Do
not throw away any packing material until you
account for all of the parts.
To order a replacement part, always include the
PART NUMBER. Use the Parts Order Form
furnished with this kit. If a Parts Order Form is not
available, refer to “Replacement Parts" inside the
rear cover of this Manual.
A replacement part may look slightly different than
the original part, or may have different printing on
it. In any case, the performance of the replacement
part will meet or exceed the requirements of the
original part. For example: A 15-volt capacitor (10
uF, 15 V) may be replaced with a 25-volt capacitor
(10 pF, 25 V).
KEY HEATH QTY. DESCRIPTION CIRCUIT KEY HEATH QTY. DESCRIPTION CIRCUIT
No. Part No. Comp. No. No. PartNo. Comp. No.
CAPACITORS Variable
2-114
Ceramic A3 (2206803; 1 Plate capacitor (AA-112) C27
AL 21-176 3 01 pF, 100-volt 1,02, C3 Te ag ne ye aOR S12) C9
Al 21-16 4 01 pF, 500-voit C18, C19,
21,
622
CHOKES-COILS
Al 21-70 3.001 uF (1000 pF),
6000-volt C23, C24, C25 B1 230-6795 = 1S 160.& 8O-meter tank coil L@
Al 216 1 27 pF C4 B2 230-6796 1 40, 20, 15, & 0-meter_L7
AL 21-821 2 4700 pF (472) 32, C33 tank coil
A2 230-6801 2 170 pF, 7500-volt 026, 029 B3 230-6797. 1 _— Filament choke RFC2
doorknob 84 230-6798 1 Plate choke RFC3
A2 230-6802 1 500 pF, 7500-volt C28
doorknob
